Yamaha FT60D - Checking the Trim Sensor

BRKT
Bracket unit
7-51
6C13G11
Checking the trim sensor

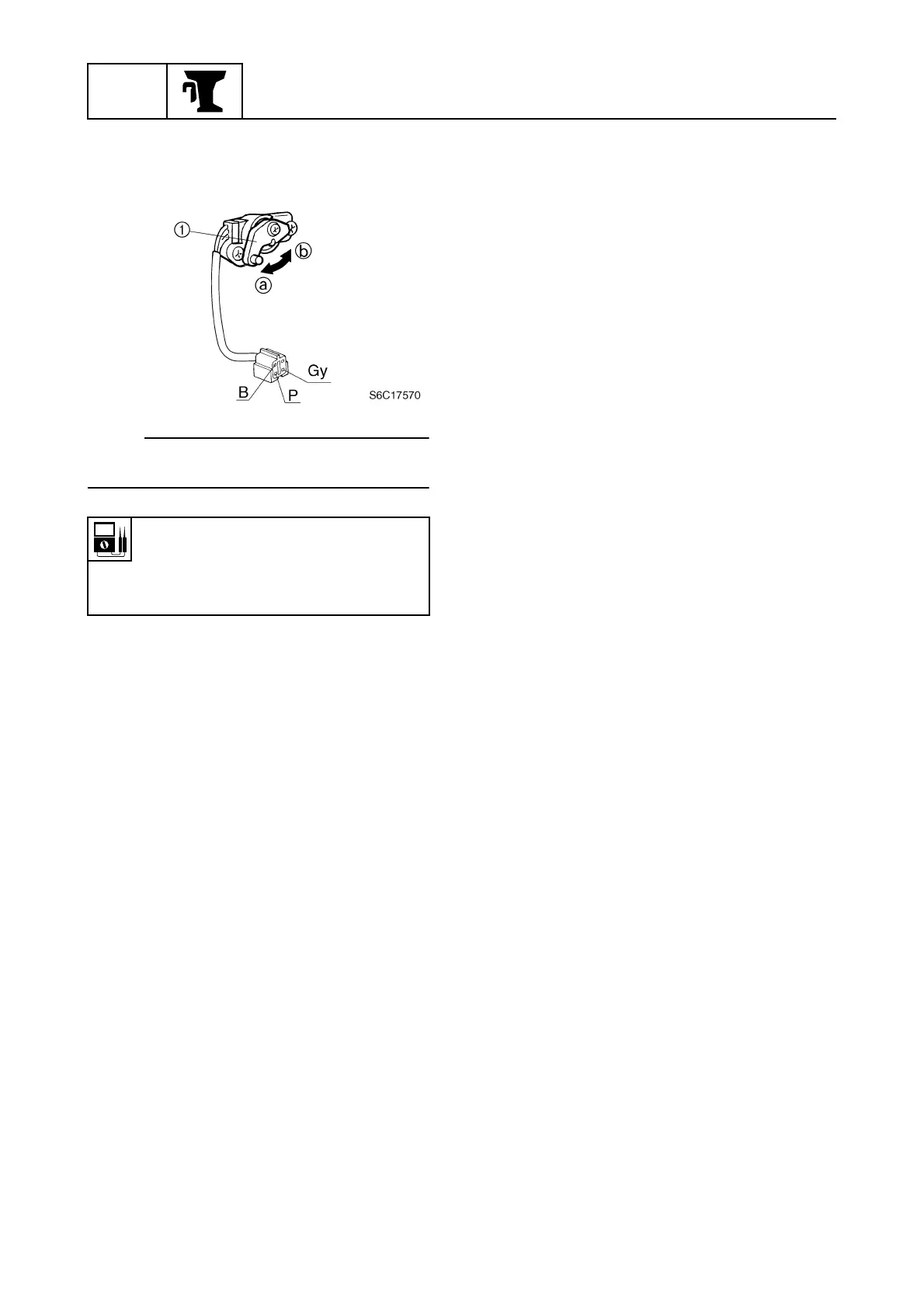

1. Measure the trim sensor resistance.
Replace if out of specification.
NOTE:
Turn the lever
1
and measure the resistance
as it gradually changes.
Trim sensor resistance:
Pink (P) – Black (B)
168.3–288.3
Ω
at 20 °C (68 °F)
a
9–11
Ω
at 20 °C (68 °F)
b
