Yamaha FT60D - Checking the Oil Pump; Installing the Valves

POWR
Power unit
5-31
6C13G11

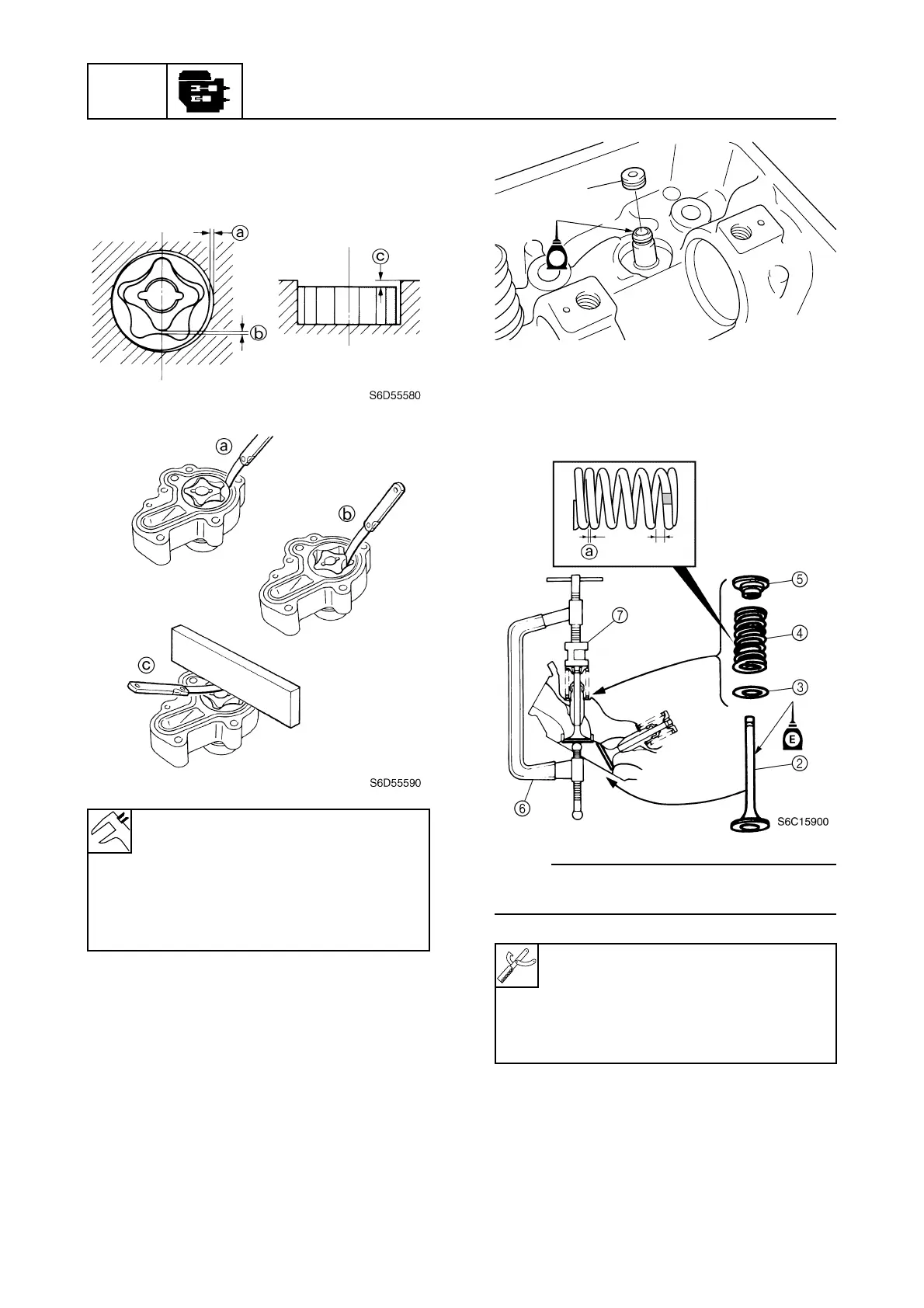

Checking the oil pump
1. Measure the oil pump rotor clearances
as shown. Replace if out of specification.
Installing the valves
1. Install a new valve seal
1
onto the valve
guide.
2. Install the valve
2
, valve spring seat
3
,
valve spring
4
, and valve spring retainer
5
in the sequence shown, and then
attach the special service tools.
NOTE:
Face the fine pitch side
a
of the valve spring
toward the spring seat.
3. Compress the valve spring, and then
install the valve cotter
8
using a thin
screwdriver with a small amount of
grease applied to it.
Clearance
a
:
0.09–0.15 mm (0.0035–0.0059 in)
Clearance
b
:
Within 0.12 mm (0.0047 in)
Clearance
c
:
0.03–0.08 mm (0.0012–0.0031 in)
Valve spring compressor
6
:
90890-04019
Valve spring compressor
attachment
7
:
90890-06320
S62Y5590
