Yamaha FT60D Service Manual

LOWR
Lower unit
6-19
6C13G11

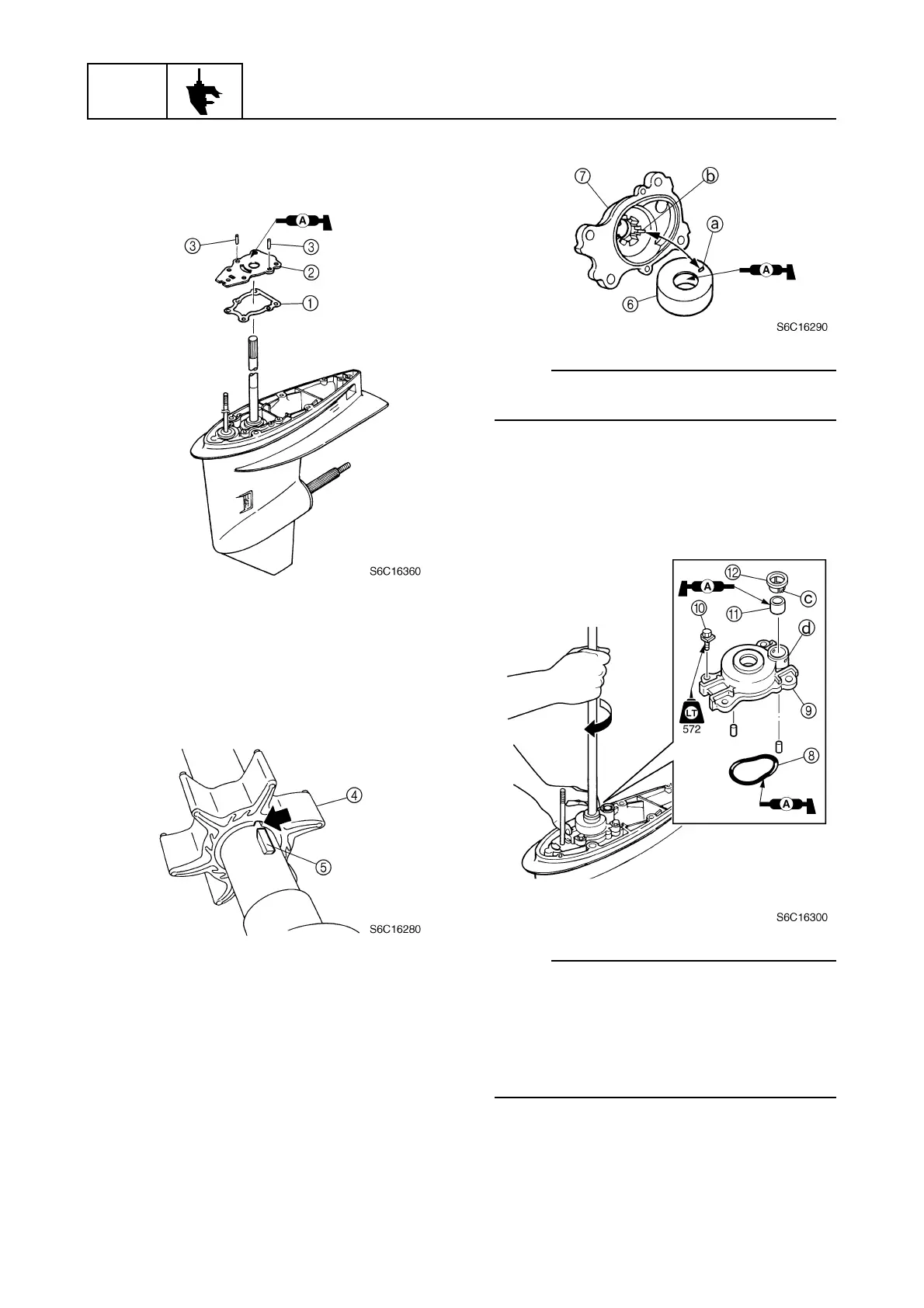

Installing the water pump
1. Install a new gasket
1
, the outer plate
cartridge
2
, and dowels
3
.
2. Install the Woodruff key into the drive
shaft.
3. Align the groove in the impeller
4
with
the Woodruff key
5
, and then install the
impeller onto the drive shaft.
4. Install the insert cartridge
6
into the
pump housing
7
, and then apply grease
to the inside of the insert cartridge.
NOTE:
Align the insert cartridge projection
a
with
the hole
b
in the pump housing.
5. Install the new O-ring
8
and pump hous-
ing assembly
9
into the lower case,
tighten the bolts
0
, and then install the
seal
A
and cover
B
.
NOTE:
• When installing the pump housing, apply
grease to the inside of the housing, and
then turn the drive shaft clockwise while
pushing down the pump housing.
• Align the cover projection
c
with the hole
d
in the pump housing.
Installing the lower unit
1. Set the gear shift to the neutral position
at the lower unit.
