FUEL
Fuel system
4-3
6C13G11

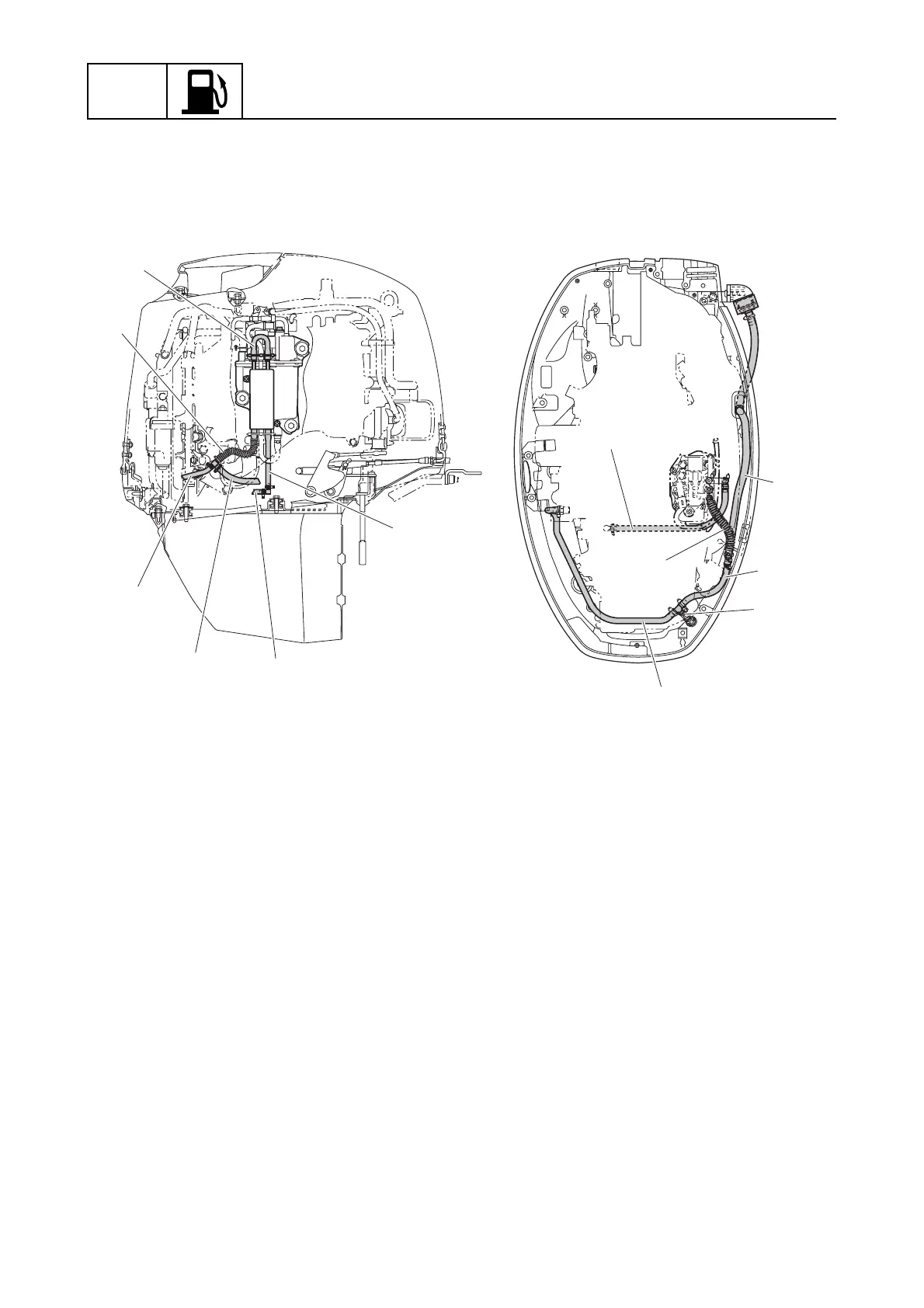

Cooling water pilot hoses
1
Cooling water pilot hose (fuel cooler to fuel cooler)
2
Cooling water pilot hose (fuel cooler to fuel joint)
3
Cooling water pilot hose (fuel joint to upper case)
4
Flushing hose (hose joint to fuel joint)
5
Cooling water pilot hose (fuel joint to water outlet joint)
6
Cooling water pilot hose (fuel cooler to fuel joint)
7
Cooling water pilot hose (water outlet joint to water outlet)
8
Cooling water pilot hose (water outlet joint to exhaust cover)
S6C14340
1
6
2
3
4
5
3
6
4
5
7
8
