Yamaha FT60D - Assembling the Vapor Separator

6C13G11
4-20
1
2
3
4
5
6
7
8
9

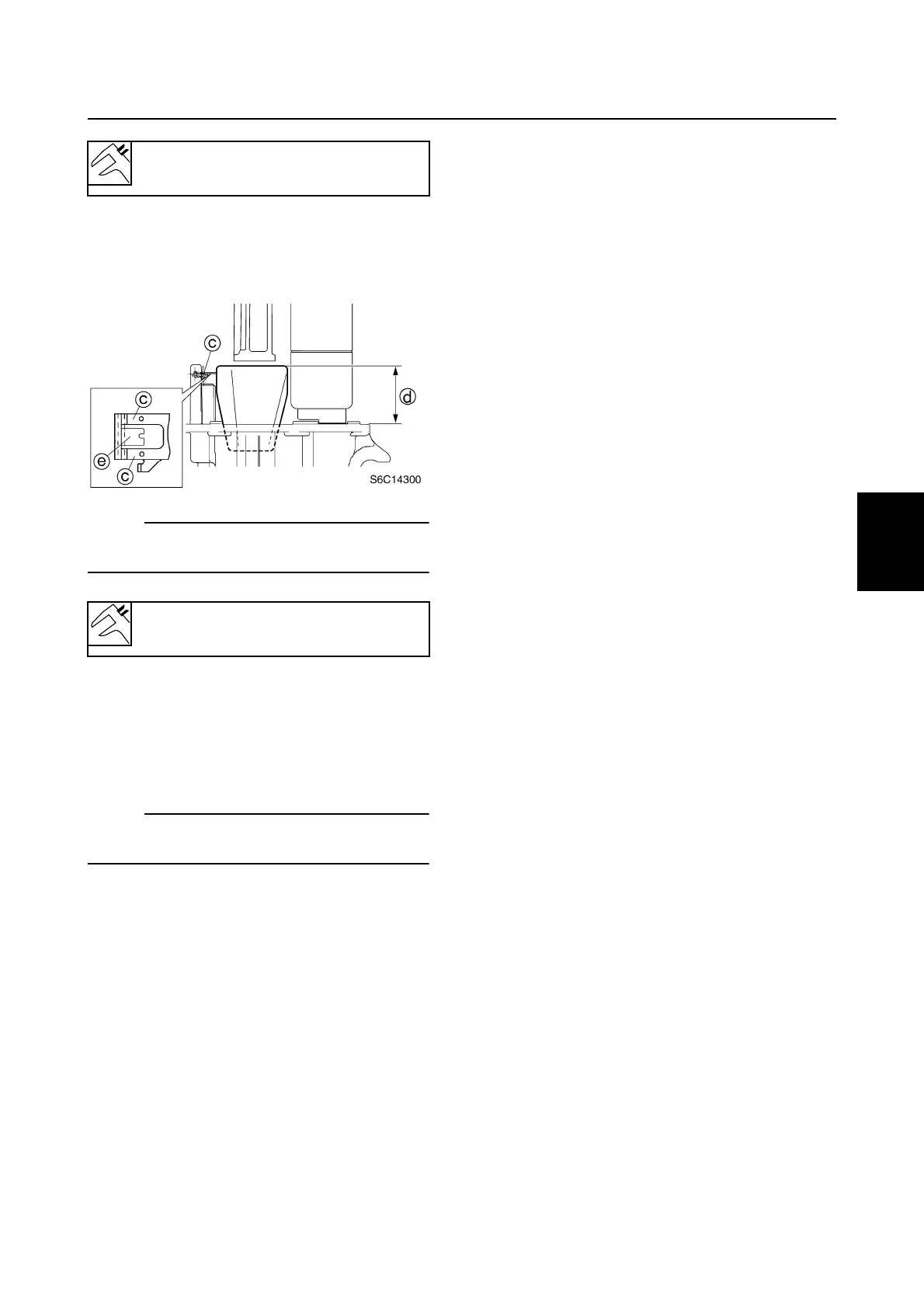

2. Adjust the lever
c
of the float by bending
it until the float height
d
is within specifi-
cation.
NOTE:
When adjusting the float height, do not bend
the lever
e
.
Assembling the vapor separator
1. Install the float chamber.
2. Install all parts removed during dissas-
embly.
NOTE:
Be sure to connect and route the hoses cor-
rectly.
Float height
b
:
46.6
±
1.0 mm (1.83
±
0.04 in)
Float height
d
:
35.0
±
1.0 mm (1.38
±
0.04 in)
Vapor separator
