Yamaha FT60D - Page 204

BRKT

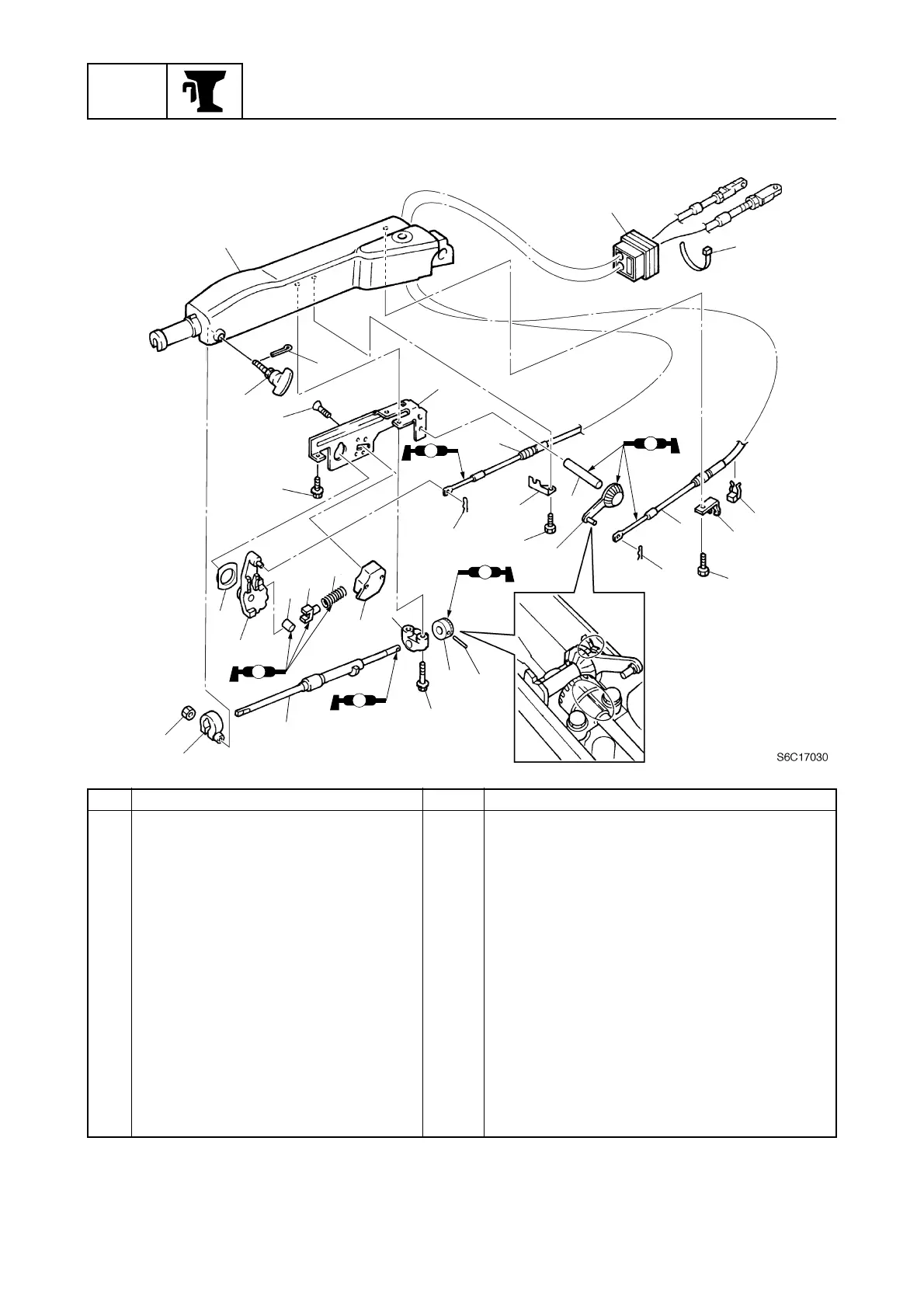

Bracket unit
7-7
6C13G11
7
No. Part name Q’ty Remarks
18 Screw 2 ø5
×
10 mm
19 Bolt 1 M6
×
14 mm
20 Spring housing 1
21 Spring 1
22 Actuator 1
23 Roller 1
24 Bushing 1
25 Shift arm 1
26 Pin 1
27 Gear 1
28 Holder 1
29 Bolt 2 M6
×
30 mm
30 Throttle shaft 1
31 Friction piece 1
32 Nut 1
1
2
4
5
3
18
17
16
13
14
15
11
12
10
9
8
7
6
19
24
25
23
22
21
20
32
31
30
28
29
27
26
