WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.

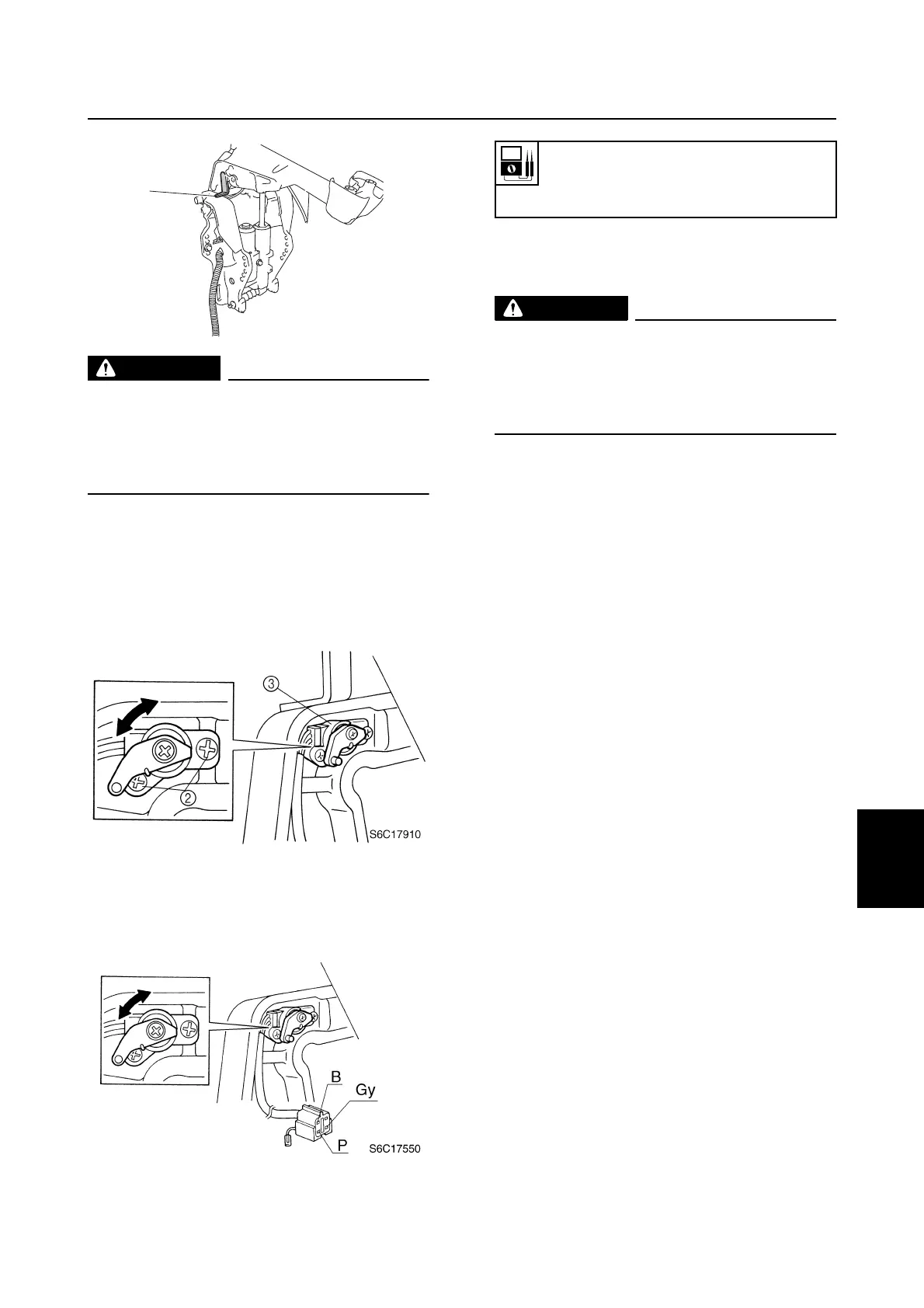

2. Loosen the cam screws
2
.
3. Adjust the position of the trim sensor
3
,
and then tighten the screws
2
finger
tight.
4. Fully tilt the outboard motor down.
5. Measure the trim sensor resistance.
Repeat steps 1–5 if out of specification.
6. Fully tilt the outboard motor up, and then
support it with the tilt stop lever.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
7. Tighten the cam screws
2
.
8. Fully tilt the outboard motor down.
1
S6C17370
Trim sensor setting resistance:
Pink (P) – Black (B)
9–11
Ω
at 20 °C (68 °F)
