Yamaha FT60D - Page 82

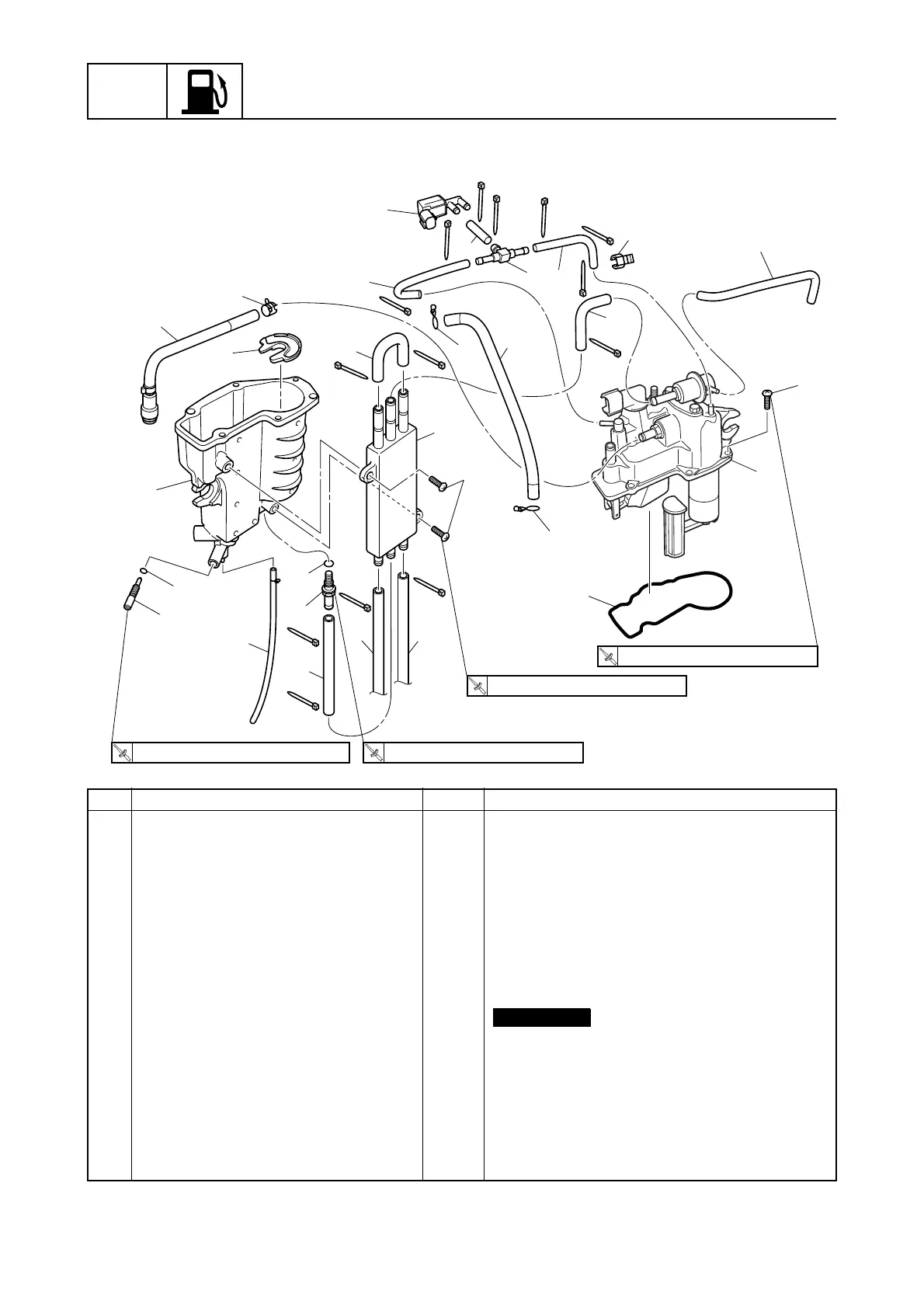

FUEL
Fuel system
4-13
6C13G11
4
No. Part name Q’ty Remarks
1Hose 1
2 Joint 1
3Hose 1
4 Fuel hose 1
5 Holder 1
6 Fuel hose 1
7Hose 1
8Screw 6 ø5
×
14 mm
9 Cover assembly 1
10 Gasket 1
Not reusable
11 Hose 1
12 Hose 1
13 Screw 2 ø6
×
14 mm
14 Fuel cooler 1
15 Hose 1
16 Fuel hose 1
17 Joint screw 1
S6C14140
WATER
FUEL
WATER
T
R
.
.
1.5 N
·
m (0.15 kgf
·
m, 1.1 ft
·
Ib)
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
4
5
3
2
1
27
26
25
23
24
22
8
10
6
13
14
15
11
12
21
20
19
18
17
16
7
9
28
28
