Yamaha FT60D - Page 84

FUEL
Fuel system
4-15
6C13G11
4
No. Part name Q’ty Remarks
1 Cover 1
2 Pressure regulator 1
3Bolt 2 M6
×
12 mm
4O-ring 1
Not reusable
5 Joint screw 1
6O-ring 1
Not reusable
7 Electric fuel pump 1
8Grommet 1
9 Collar 1
10 Filter 1
11 Screw 2 ø4
×
6 mm
12 Wiring harness 1
13 Float 1
14 Needle valve 1
15 Pin 1
Not reusable
16 Clip 1
Not reusable

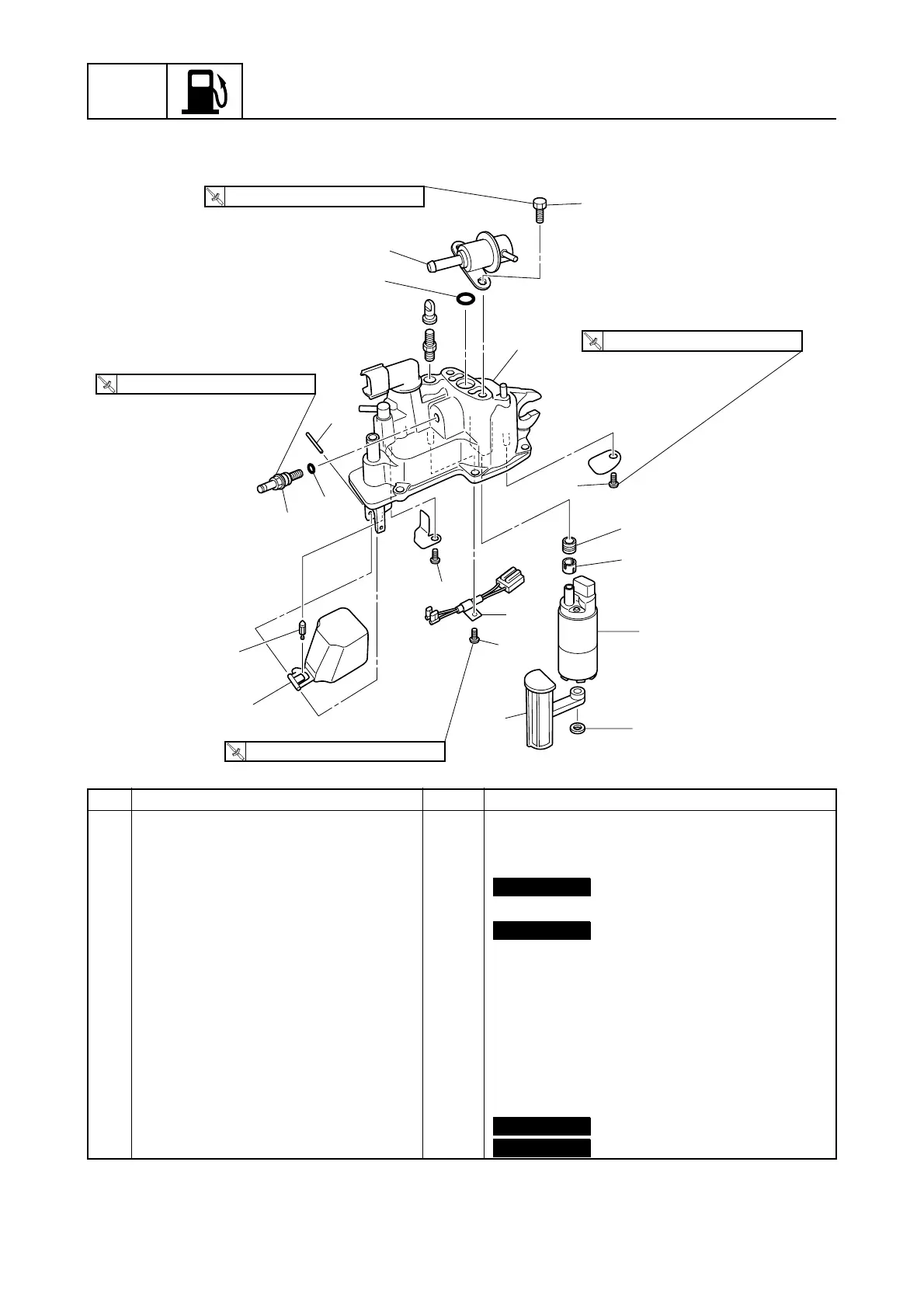

S6C14360
3
1
7
9
8
2
4
6
15
11
11
11
10
13
14
12
5
T
R
.
.
2 N
·
m (0.2 kgf
·
m, 1.5 ft
·
Ib)
T
R
.
.
2 N
·
m (0.2 kgf
·
m, 1.5 ft
·
Ib)
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
T
R
.
.
5 N
·
m (0.5 kgf
·
m, 3.7 ft
·
Ib)
16
