Yamaha QL5 Reference Manual

Monitor and Cue functions
Reference Manual
102
3 DOWNMIX field
Select in which field to perform downmixes.
•STEREO button
Downmix in stereo mode.
• MONO button
Downmix in mono mode.
4 DOWNMIX SETUP button
Use this button to open the DOWNMIX SETUP screen. Set the parameters for
downmixes.
5 Meter field
Shows the meters for the surround signal being monitored. The layout of the meters is
the same as the layout set in the SURROUND SETUP screen.
6 Speaker Mute field
You can individually mute each speaker that is monitored.
7 SOLO button
Turns on the solo function for the monitor speakers. When turned on, all speaker
buttons in the speaker mute field are turned on. At this time, if you press one of the
speaker buttons, only that button remains on; the other buttons go off. If you press a
different speaker button, the other buttons go off.
NOTE
If you switch to Surround mode, the patch for monitor output can be set in the OUTPUT PORT
screen rather than this screen. (Refer to page 51.)

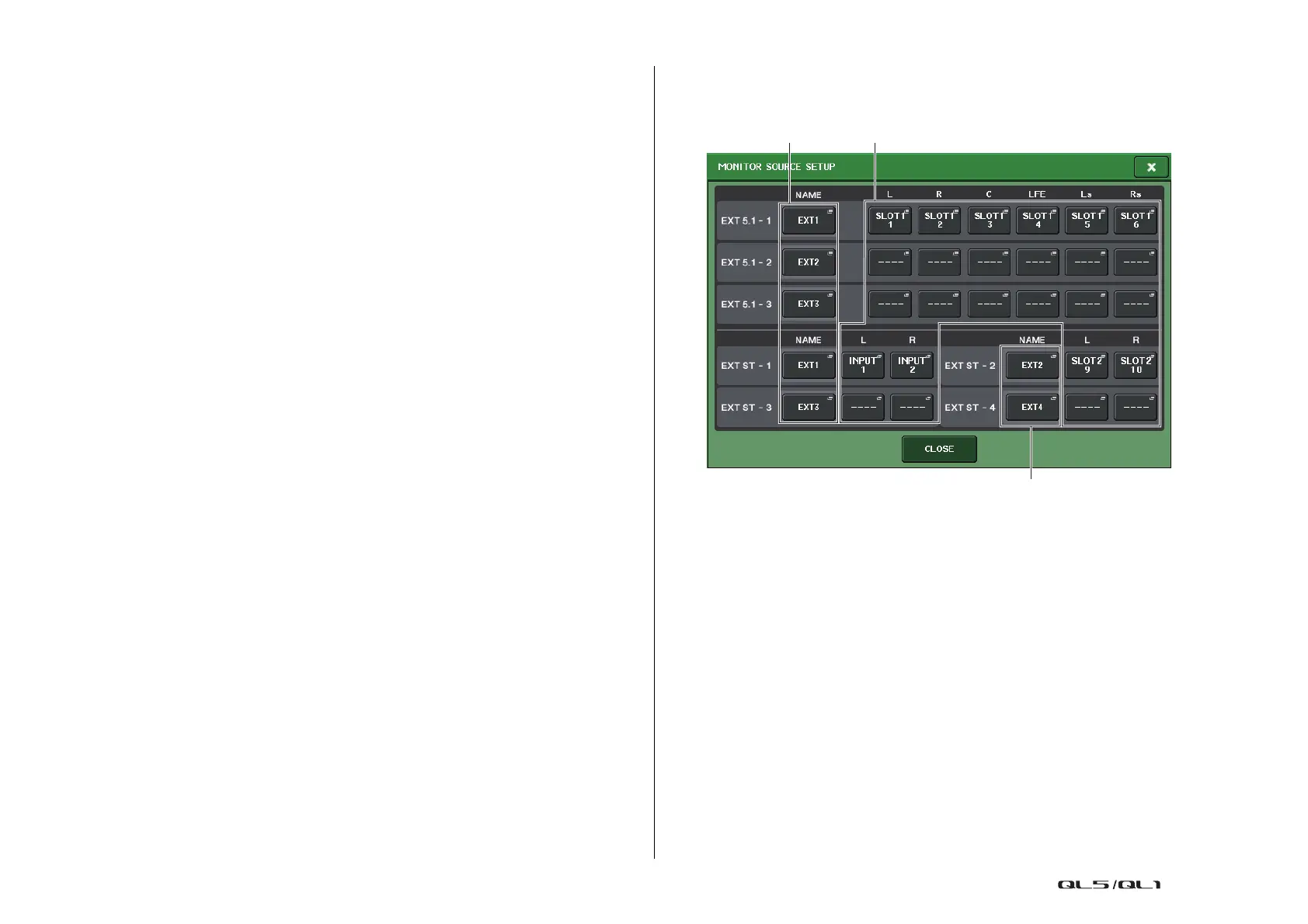

MONITOR SOURCE SETUP screen
Press the MONITOR SOURCE SETUP button in the SURROUND MONITOR screen to open
this screen.
1 NAME field
Press this button to open the PATCH/NAME screen (with the NAME tab selected). Enter
the source name in the Keyboard screen.
2 PATCH field
Press this button to open the PATCH/NAME screen (with the PATCH tab selected). Select
the port to patch.
1
1
2
