Yamaha QL5 Reference Manual

Graphic EQ, Parametric EQ, effects, and Premium Rack
Reference Manual
122
7 Link indicator
Indicates that an odd-numbered rack and even-numbered rack of the 31BandGEQ, A
and B of the Flex15GEQ, or A and B of the 8BandPEQ are linked to each other.

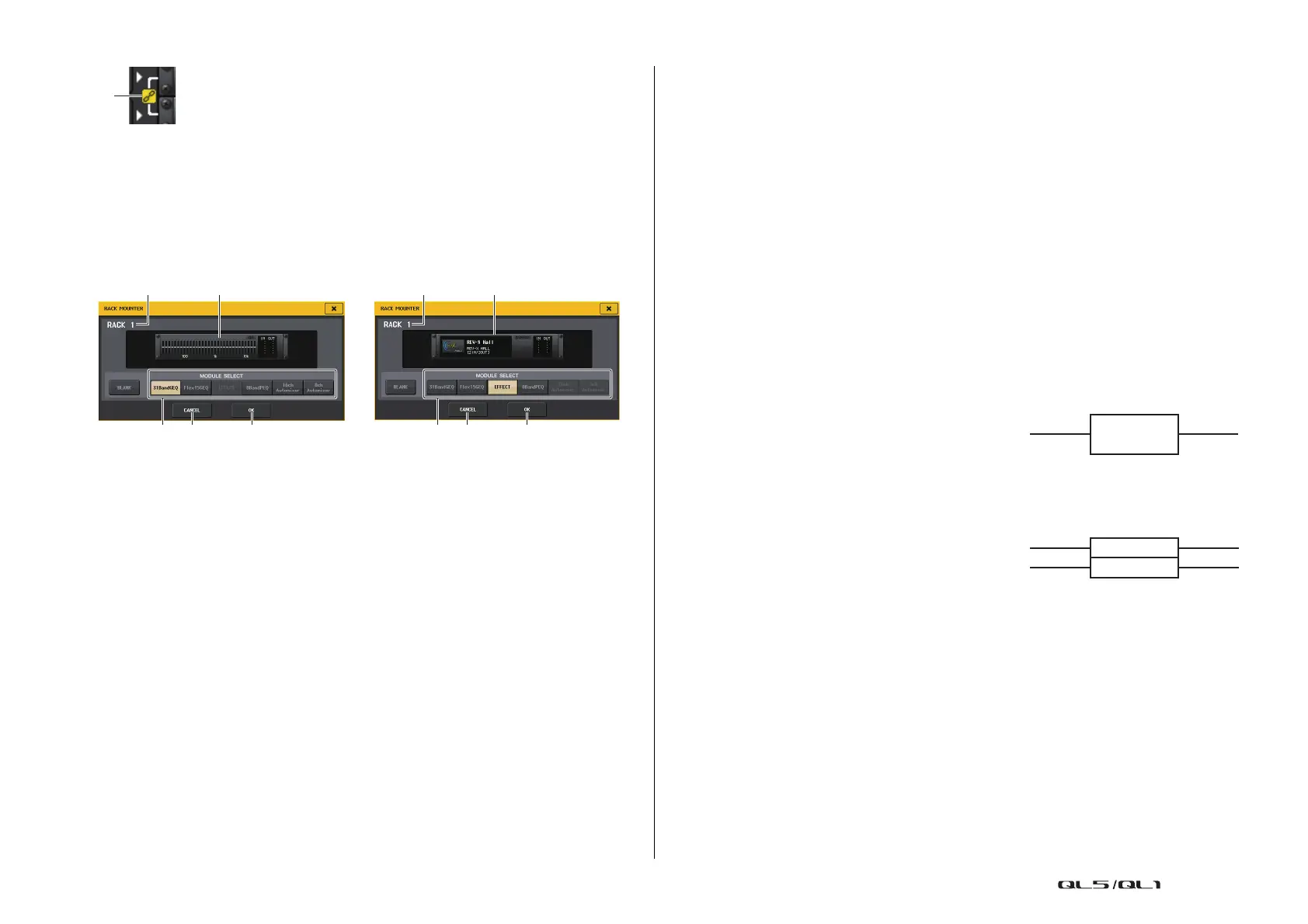

RACK MOUNTER window
Mount a GEQ, PEQ, or effect in the rack. This window will appear if you press the rack mount
button in the VIRTUAL RACK window.
1 Rack number
Indicates the number for the selected rack.
2 Virtual rack
This area indicates the GEQ or effect selected via the MODULE SELECT buttons.
3 MODULE SELECT field
Select the GEQ or effect that will be mounted in the rack. Each button has the following
function.
• BLANK button....................... Removes the GEQ or effect currently mounted in the
rack; the rack will be empty.
• 31BandGEQ button .............. Mounts a 31BandGEQ in the rack.
• Flex15GEQ button ................ Mounts a Flex15GEQ in the rack.
• 8BandPEQ button................. Mounts an 8BandPEQ in the rack.
• EFFECT button (EFFECT rack only) .............Mounts an effect in the rack.
• 16ch Automixer button (GEQ rack 1 only)....Mounts a 16ch Automixer in the rack.
• 8ch Automixer button (GEQ rack 1 only) .....Mounts an 8ch Automixer in the rack.
NOTE
• Input/output patching will be defeated if you change the item mounted in a rack.
• The 16ch Automixer is mounted in racks 1–8. The 8ch Automixer is mounted in racks 1–4.
4 CANCEL button
Cancels the changes you made in the RACK MOUNTER window, and closes the window.
5 OK button
Applies the changes you made in the RACK MOUNTER window, and closes the window.
NOTE
Be aware that if you remove a GEQ, PEQ, or effect that was mounted in a rack and close the
RACK MOUNTER window, all edits to the parameter settings for that GEQ, PEQ, or effect will be
discarded. If you have not yet closed the window, you can recover the parameter settings by
mounting the same GEQ, PEQ, or effect once again.
Graphic EQ operations
The QL series console enables you to mount a GEQ in GEQ racks 1–8 and patch it to the
insert-out/in of an input channel, a MIX/MATRIX channel, or STEREO/MONO channel. You
can also mount it in EFFECT racks 1–8 (FX 1–8) and patch it to the insert-out/in of an input
channel, MIX/MATRIX channel or STEREO/MONO channel. The gain of each band can be
adjusted using the faders and [ON] keys in the Channel Strip section.
The following two types of GEQ are provided.
 31BandGEQ
This is a monaural 31-band GEQ. Each band is 1/3
octave wide, the adjustable gain range is ±15 dB, and
the gain of all thirty-one bands can be adjusted.
If a 31BandGEQ is mounted in a rack, one channel of
input and output can be used for that rack.
 Flex15GEQ
This is a monaural 15-band GEQ. Each band is 1/3
octave wide, and the adjustable gain range is ±15 dB.
The Flex15GEQ enables you to adjust the gain for
any fifteen of the same bands as the thirty-one bands
of the 31bandGEQ. (Once you have used up fifteen
bands of adjustment, you will not be able to adjust the gain of another band until you reset a
previously-adjusted band to the flat setting.)
A rack for which the Flex15GEQ is selected will have two Flex15GEQ units (shown as “A” and
“B” respectively) mounted in that rack, and will allow two channels of input and output.
7
43 5
21
43 5
21
INPUT
31BandGEQ
OUTPUT
Rack
INPUT
Flex15GEQ (B)
Flex15GEQ (A)
OUTPUT
Rack
