Yamaha QL5 Reference Manual

Scene memory
Reference Manual
82
C RECALL UNDO button
Undoes the Recall operation. This button is valid only immediately after you perform a
Recall operation.
D Page switching tabs
Switch the views for the right side of the SCENE LIST window.
E PREVIEW button
Press this to select PREVIEW mode, which allows you to view and edit the scene settings
in the display and the panel without affecting the signal processing of the current scene.

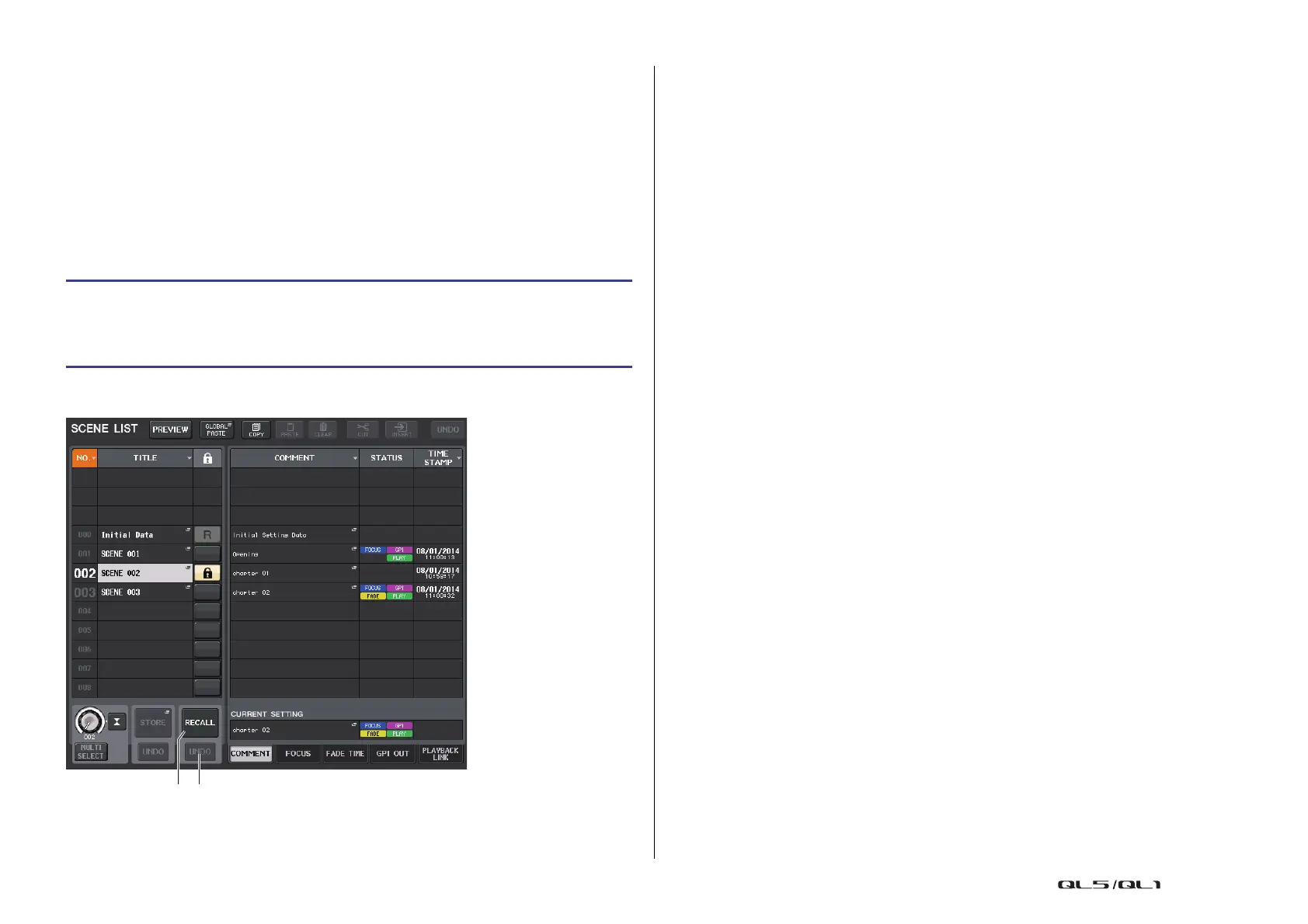

Recalling a scene
SCENE LIST window
1 RECALL SCENE button
Recalls the currently-selected scene.
2 RECALL UNDO button
Undoes the Recall operation. This button is valid only immediately after you perform a
Recall operation.
NOTE
• You can also assign the function of the RECALL UNDO button to a USER DEFINED key
(page 194).
• You can also use MIDI messages (Program Changes) to recall scenes (page 164).
STEP
1. Press the SCENE field in the Function Access Area.
2. Rotate the [TOUCH AND TURN] knob to select the scene number to recall.
3. Press the RECALL button in the SCENE LIST window.
12

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
