Setup
Reference Manual
233
Using FADER START
Make FADER START settings if you want a device connected to a GPI OUT port to operate
in tandem with fader operations.

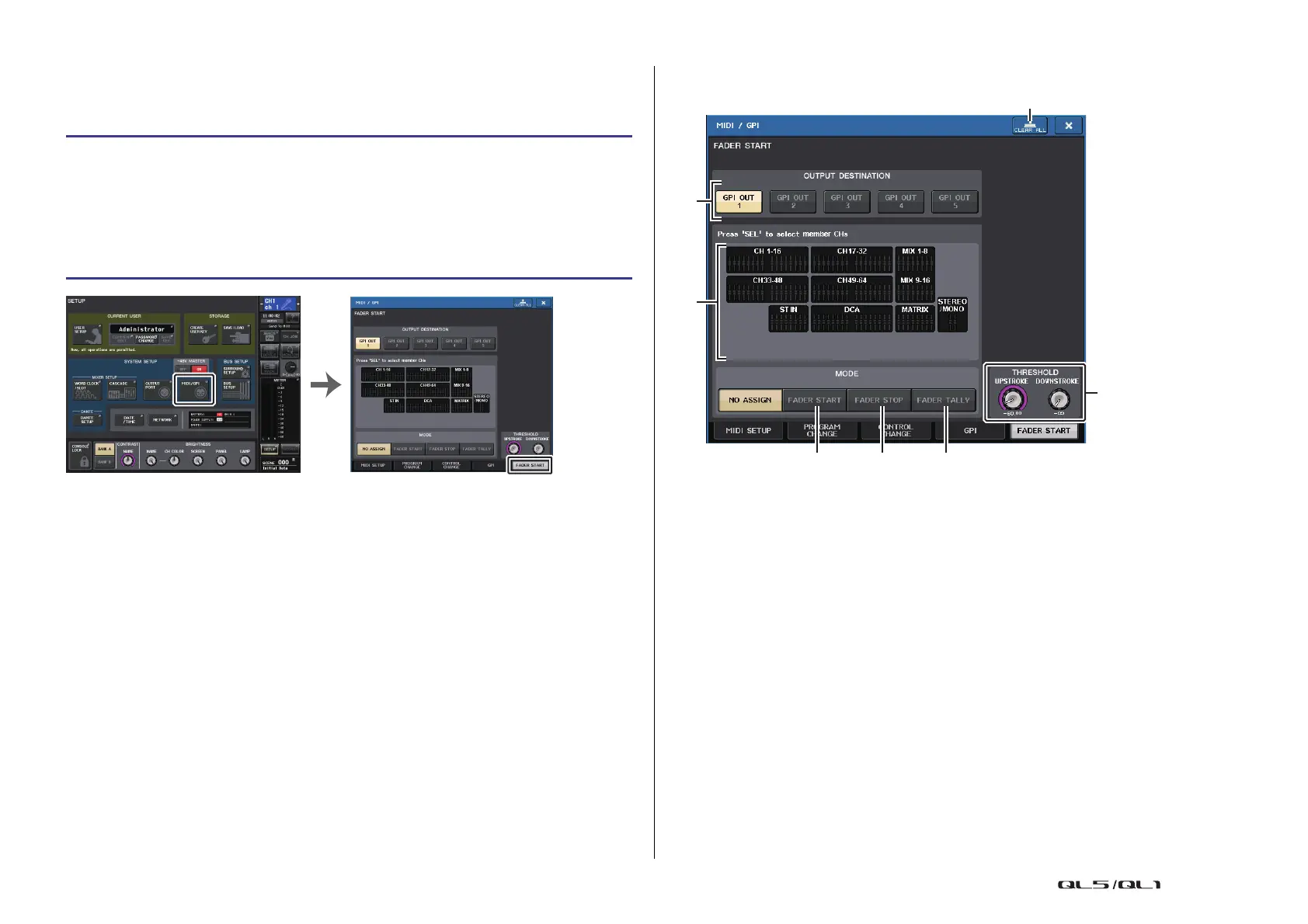

MIDI/GPI screen (FADER START page)
1 CLEAR ALL button
Clears all selections.
2 OUTPUT DESTINATION field
• GPI OUT1–GPI OUT5 buttons
Select the GPI OUT port for which you want to make settings.
3 Fader indicator
This indicates the selected fader. Use the [SEL] keys on the panel to select a fader.
NOTE
In the case of QL1, channels that do not exist on the model will not be shown.
4 THRESHOLD field
• UPSTROKE/DOWNSTROKE knobs
These specify the level that will be the threshold for outputting a trigger signal. A trigger
signal will be output when the fader exceeds the UPSTROKE level, or when the fader falls
below the DOWNSTROKE level. You can use the [TOUCH AND TURN] knob to operate
these parameters.
STEP
1. Connect an external device to the QL series console’s GPI connector.
2. In the Function Access Area, press the SETUP button.
3. In the SETUP screen, press the MIDI/GPI button.
4. In the MIDI/GPI screen, press the FADER START tab.
5. For each GPI OUT port, specify the channel that will cause the external device to
operate, and the type of operation.
SETUP screen MIDI/GPI screen
3
2
5 6 7
4
1
To Next Page
