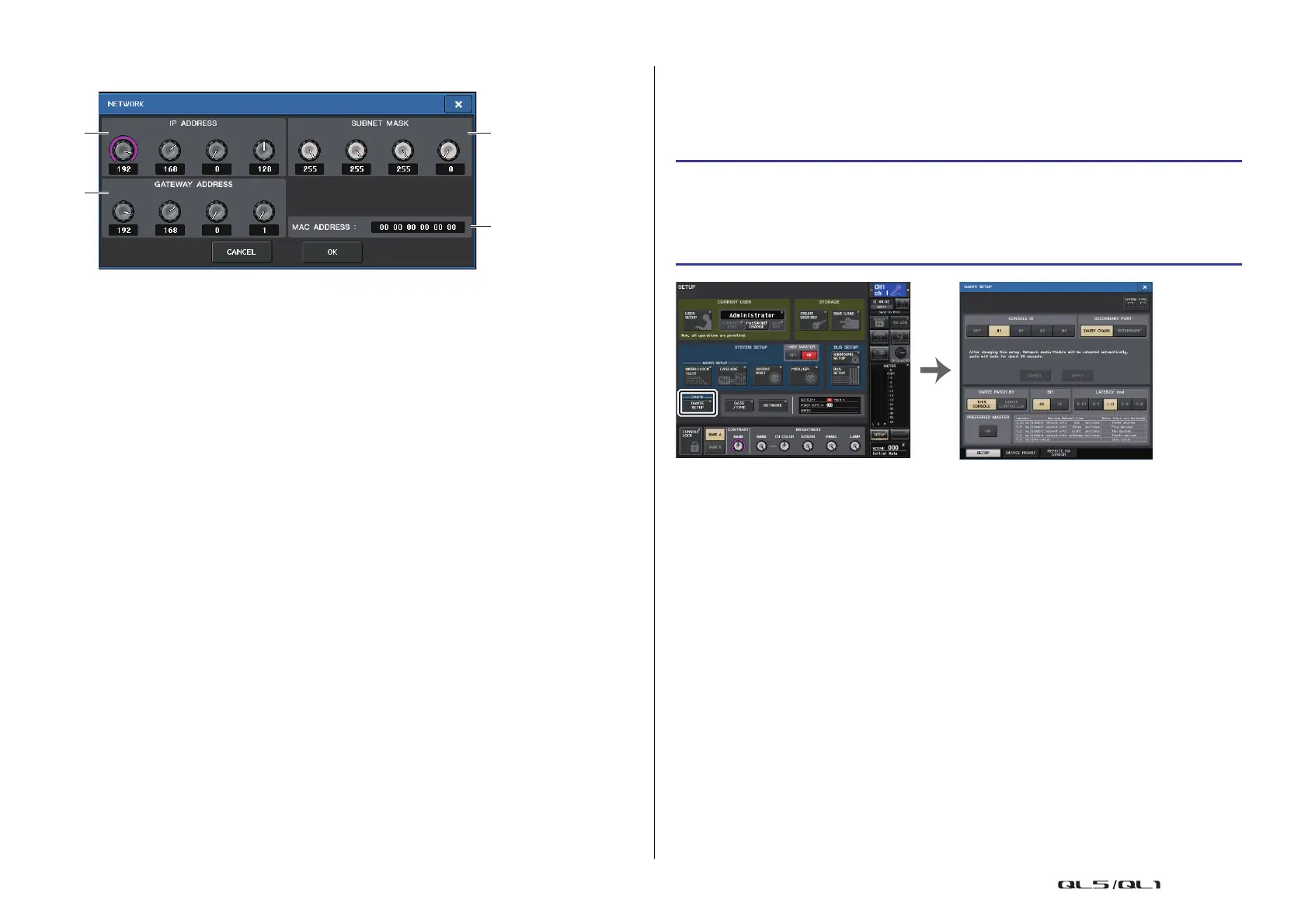

NETWORK window
1 IP ADDRESS
Specifies an address that identifies an individual device on the Internet or LAN network.
2 GATEWAY ADDRESS
Specifies an address that identifies a device (gateway) that converts data between
different media or protocols to allow communication within the network.
3 SUBNET MASK
Within the IP address used in the network, this defines the bits that are used for the
network address that distinguishes the network.
4 MAC ADDRESS
Indicates the MAC (Machine Access Control) address, which identifies a host in a
network. This address is for display only, and cannot be edited.
NOTE
The NETWORK connector on the QL series console transmits data via either 100BASE-TX
(transmission speed: maximum 100 Mbps) or 10BASE-T (transmission speed: max 10 Mbps).
Setting up the Dante audio network
You will use the QL series console to make Dante audio network settings for the console itself
and the I/O devices connected to the Dante connector of the QL series console. This section
explains how to make Dante audio network settings.
1
2
3
4
STEP
1. In the Function Access Area, press the SETUP button to access the SETUP screen.
2. In the DANTE field at the center of the screen, press the DANTE SETUP button to
open the DANTE SETUP window.
3. Press the SETUP tab in the lower part of the DANTE SETUP window.
SETUP screen DANTE SETUP window

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
