Yamaha QL5 Reference Manual

Monitor and Cue functions
Reference Manual
103

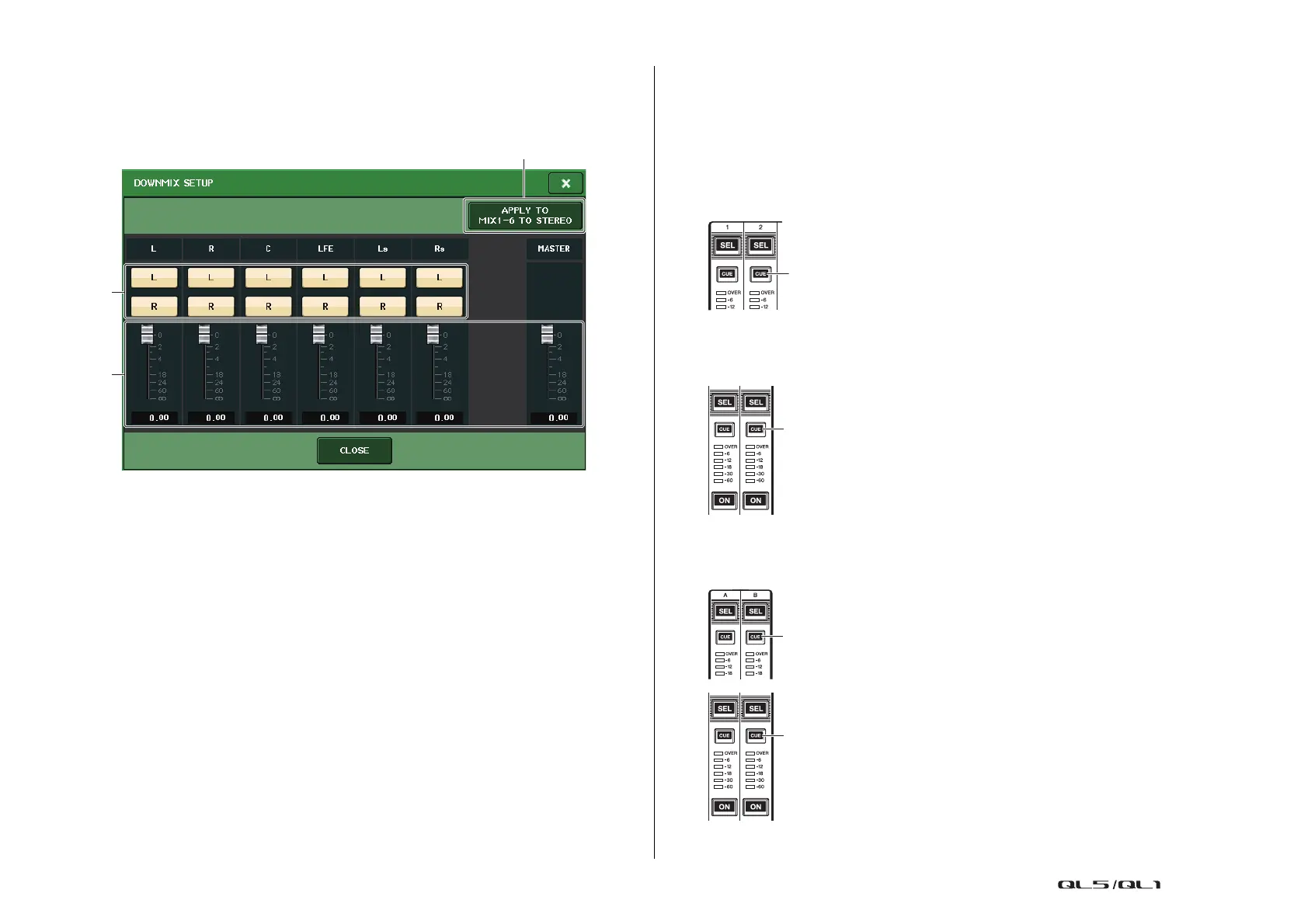

DOWNMIX SETUP screen
Press the DOWNMIX SETUP button in the SURROUND MONITOR screen to open this
screen. The layout of the channels is the same as the layout set in the SURROUND SETUP
screen.
1 Output channel field
Selects the output channel. You can use the L and R buttons to switch each between on/
off.
2 Downmix parameter field
Sets the downmix parameters for each channel and the master channel monitors.
3 APPLY TO MIX1-6 TO STEREO button
Press this button to apply the downmix parameters for the set monitors to the downmix
parameters for the main channel (MIX1-6 to STEREO).
Using the Cue function
About CUE groups
Cue signals on the QL series console can be categorized into the following four groups.
1 INPUT CUE group
The cue signals of input channels make up this group. To enable cue for this group, press
the [CUE] key for any input channel to turn cue on.
2 DCA CUE group
The cue signals of DCA groups make up this group. To enable cue for this group, press
the [CUE] key of one of the DCA groups to turn cue on.
3 OUTPUT CUE group
The cue signals of output channels make up this group. To enable cue for this group,
press the [CUE] key of one of the output channels.
3
2
1
Input channel [CUE] key
DCA group [CUE] key
Output channel [CUE] key
MIX/MATRIX channel [CUE] key
