Yamaha QL5 Reference Manual

EQ and Dynamics
Reference Manual
56

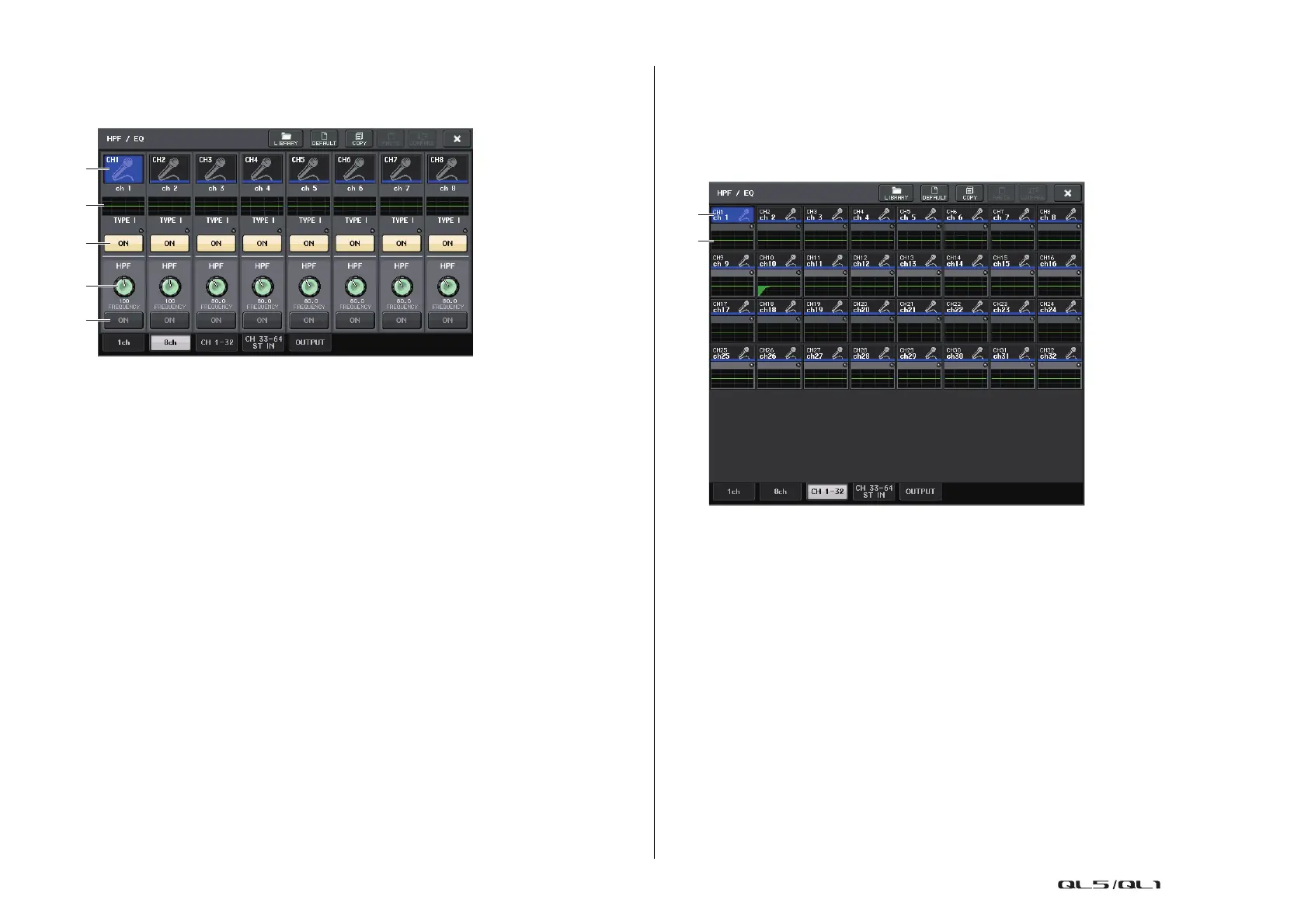

HPF/EQ window (8ch)
This window displays the input channel or output channel EQ settings in groups of 8 channels
simultaneously. Use the knobs in the SELECTED CHANNEL section to edit the EQ settings.
1 Channel select button
Selects the channel that you want to control. The current channel icon and number
appear on the button, and the channel name appears immediately below the button.
2 EQ graph
Displays the parameter values for the EQ and filter. The currently-selected EQ type
appears below the graph.
3 EQ ON/OFF button
Switches the EQ on or off. The OVER indicator (located to the right above the button)
lights if the post-EQ signal is clipping.
4 HPF FREQUENCY knob (input channels only)
Indicates the cutoff frequency of the HPF. You can use the knobs in the SELECTED
CHANNEL section to adjust this.
5 HPF ON/OFF button (input channels only)
Switches the HPF on or off.
HPF/EQ window (CH1–32, CH33–64/ST IN (QL5), ST IN (QL1),
OUTPUT)
This window displays the corresponding input channels (or output channels) simultaneously.
This window is only for display, and does not allow the parameters to be edited. It is useful
when you need to quickly check multiple EQ settings, or when you want to copy and paste EQ
settings between distant channels.
1 Channel select button
Selects the channel that you want to control in the SELECTED CHANNEL section. The
current channel icon, number, and color appear on the button.
2 EQ graph
This field graphically indicates the approximate response of the EQ and filters.
1
2
3
5
4
1
2
