Yamaha QL5 Reference Manual

I/O devices and external head amps
Reference Manual
159
5 VIEW switch buttons
Switch the virtual rack display between SB168-ES and AD8HR. Select the view that’s
appropriate for the connected device.
6 COMM PORT switch buttons
Specify whether the external HA connected to the slot will be controlled remotely. Select
“SLOT1” if you want to remotely control the external HA.

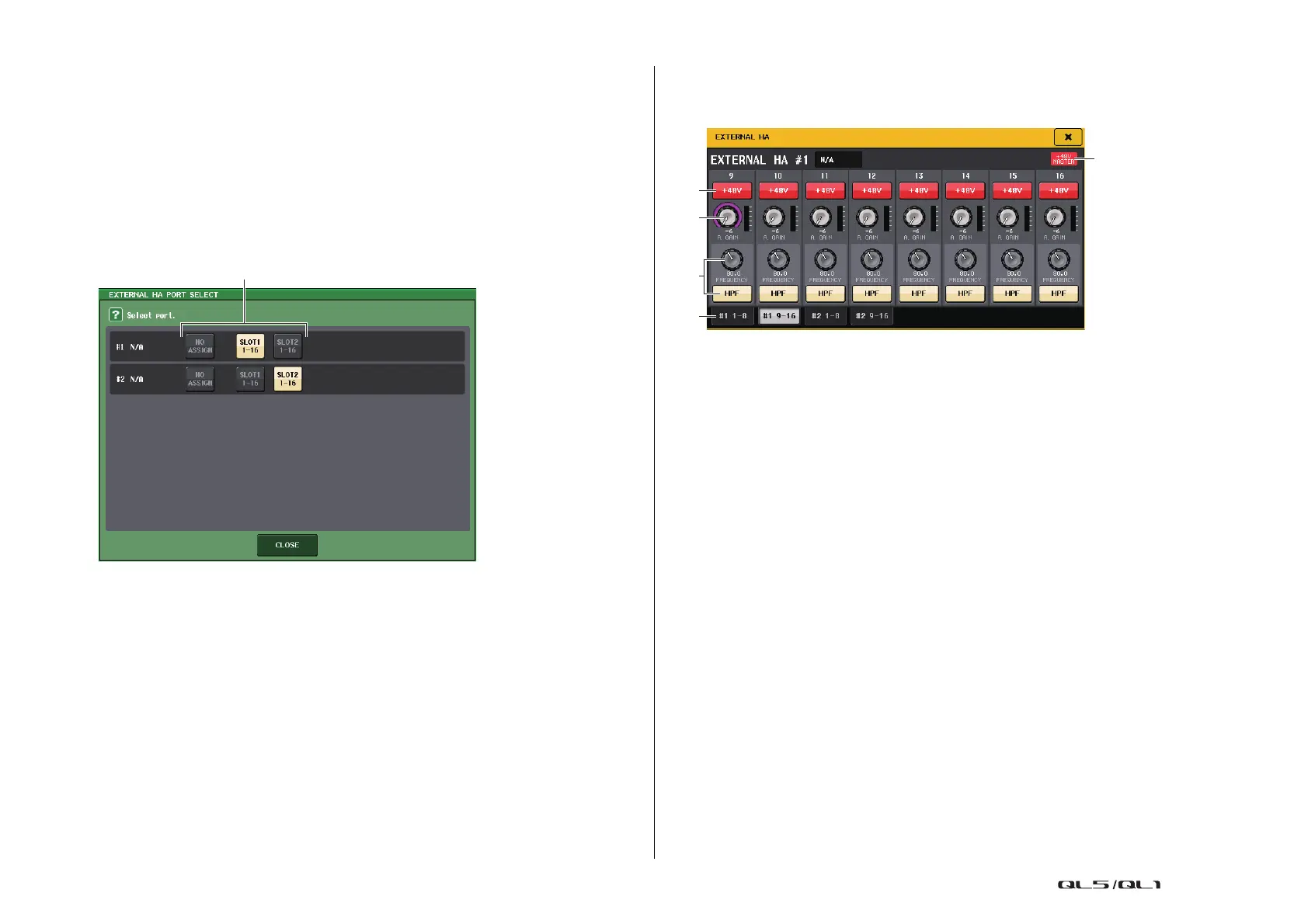

EXTERNAL HA PORT SELECT window
Select the input port for the external head amp. Display this window by pressing the
EXTERNAL HA PORT SELECT button in the I/O DEVICE screen (EXTERNAL HA page).
1 PORT SELECT buttons
Specify the input ports to which the external HA is connected.
EXTERNAL HA window
Remotely control the external head amp. Display this window by pressing the virtual rack in
the I/O DEVICE screen (EXTERNAL HA page).
1 +48V MASTER
If an external HA is connected, the master phantom power on/off status is shown here.
(The on/off setting is made on the external HA unit itself.)
2 +48V button
These switch phantom power on/off for each channel.
3 GAIN knob
These indicate the gain of the external HA. If you press and select the GAIN knob, you
can make adjustments to gain using the [TOUCH AND TURN] knob. The level meter
located at the immediate right of the knob indicates the input level for the
corresponding port.
4 FREQUENCY knob/HPF button
These controllers switch on or off the high-pass filter built into the external HA, and
adjust its cutoff frequency. If you press and select the FREQUENCY knob, you can make
adjustments using the [TOUCH AND TURN] knob.
5 Rack select tabs
These tabs switch the rack that is displayed in the EXTERNAL HA window.
NOTE
• If you connect an additional AD8HR, the setting for this AD8HR will be used.
These knobs and buttons are displayed in the EXTERNAL HA window even if an AD8HR is not
connected, allowing you to create and store a scene even while the AD8HR is not connected.
• Error messages related to the SB168-ES will not be displayed. In addition, you will be unable to
set the EtherSound parameters. Use AVS-ESMonitor for these functions.
1
2
3
5
1
4

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
