Yamaha QL5 Reference Manual

Talkback and Oscillator
Reference Manual
111
5 OSCILLATOR OUTPUT button
Turns the oscillator output on or off.

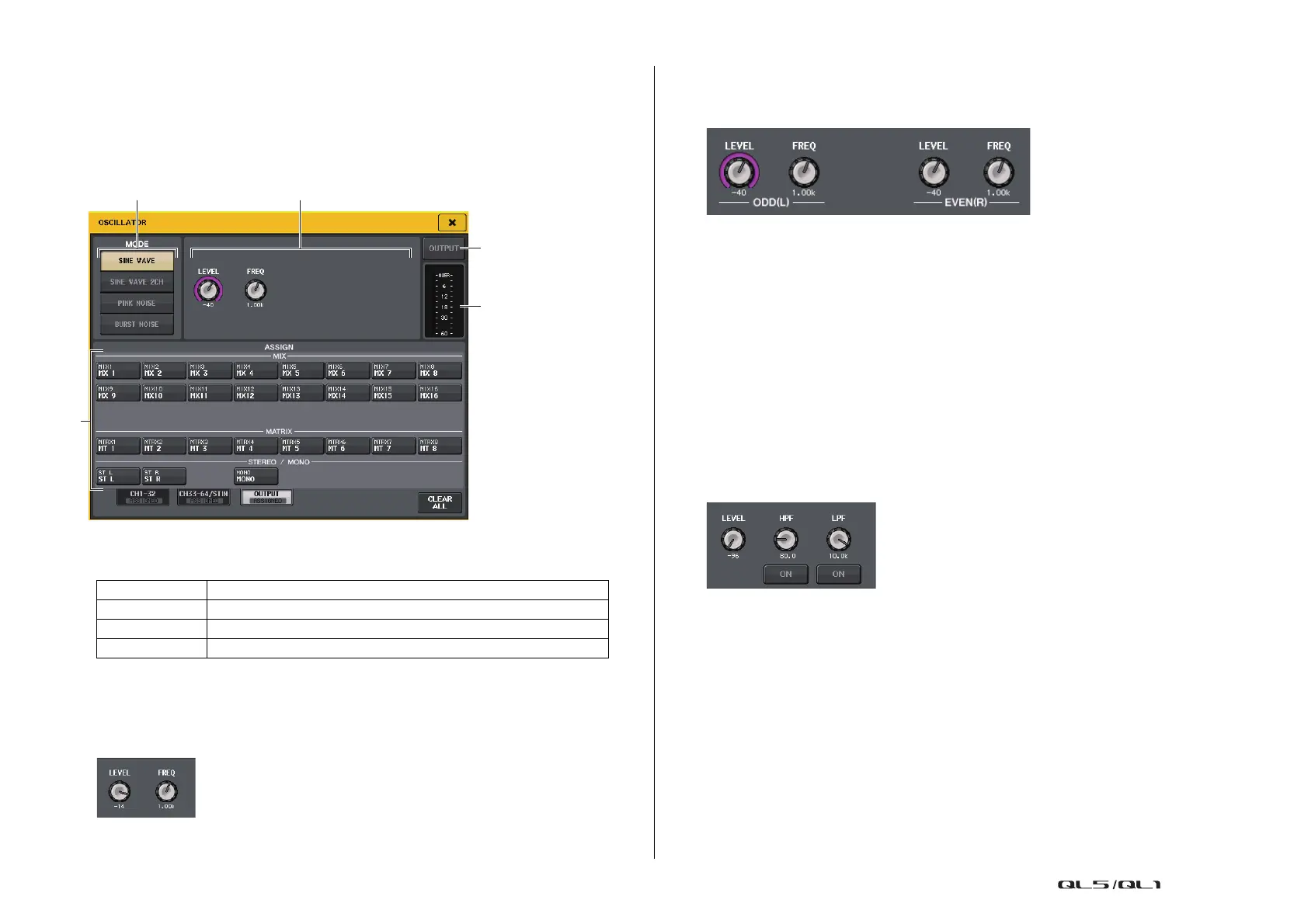

OSCILLATOR window
You can make detailed settings for the oscillator. This window appears when you press the
OSCILLATOR display button in the MONITOR screen.
1 OSCILLATOR MODE buttons
Select one of the following four operating modes when the oscillator is turned on:
2 Parameter field
Enables you to set the oscillator parameters. The controllers and their functions in this
field vary depending on the selected mode.
Mode = SINE WAVE
• LEVEL knob ..........Indicates the output level of the sine wave. You can use the
[TOUCH AND TURN] knob to control the level.
• FREQ knob ...........Indicates the frequency of the sine wave. You can use the
[TOUCH AND TURN] knob to adjust the value.
Mode = SINE WAVE 2CH
• LEVEL knob (ODD/L) ...... Indicates the output level of the sine wave on the ODD/L
side. You can adjust the value by using the [TOUCH AND
TURN] knob.
• FREQ knob (ODD/L)........ Indicates the frequency of the sine wave on the ODD/L
side. You can adjust the value by using the [TOUCH AND
TURN] knob.
• LEVEL knob (EVEN/R) .... Indicates the output level of the sine wave on the EVEN/ R
side. You can adjust the value by using the [TOUCH AND
TURN] knob.
• FREQ knob (EVEN/R)...... Indicates the frequency of the sine wave on the EVEN/R
side. You can adjust the value by using the [TOUCH AND
TURN] knob.
By default, ODD(L) is set to 1kHz and EVEN(R) is set to 400Hz. At this time, there are
two meters (L and R).
Mode = PINK NOISE
• LEVEL knob..........Indicates the output level of the pink noise. You can use the
[TOUCH AND TURN] knob to control the level.
• HPF knob ..............Indicates the cutoff frequency of the HPF that processes pink
noise. You can use the [TOUCH AND TURN] knob to adjust the
value. Use the button below the knob to switch the HPF on or off.
• LPF knob...............Indicates the cutoff frequency of the LPF that processes pink
noise. You can use the [TOUCH AND TURN] knob to adjust the
value. Use the button below the knob to switch the LPF on or off.
SINE WAVE 1CH A sine wave will be output continuously.
SINE WAVE 2CH Two sine waves of different frequencies will be output separately.
PINK NOISE Pink noise will be output continuously.
BURST NOISE Pink noise will be output intermittently.
21
5
4
3
