Yamaha QL5 Reference Manual

Talkback and Oscillator
Reference Manual
112
Mode = BURST NOISE
• LEVEL knob, HPF knob, and LPF knob
....................Same as in PINK NOISE mode.
• WIDTH ...................Indicates the length of noise being output intermittently. You can
use the [TOUCH AND TURN] knob to adjust the value.
• INTERVAL..............Indicates the length of silence between noise bursts. You can use
the [TOUCH AND TURN] knob to adjust the value.
3 ASSIGN section
Enables you to select a channel to which the oscillator signal will be sent. Press one of
the three tabs below to select the type of channels displayed, and then press the
button(s) for the desired channel(s) (multiple selections are allowed). The “ASSIGNED”
indicator is lit green for a tab that contains a selection.
If the mode is set to SINE WAVE 2CH, the signal is output to either odd (ODD(L) side)
or even (EVEN(R) side) of the selected channel. For example, the signal set to ODD(L) is
output in MIX1, and the signal set to EVEN(R) is output in MIX2.
You can press the CLEAR ALL button to defeat all selections.
NOTE
In the case of QL1, channels that do not exist on the model will not be shown.
4 Meter section
Indicates the oscillator output level.
5 OSCILLATOR OUTPUT button
Turns the oscillator output on or off. If you turn this button on, the oscillator signal will
be sent to the input channel or bus you selected in the ASSIGN section. When you press
the button again, the oscillator will turn off.

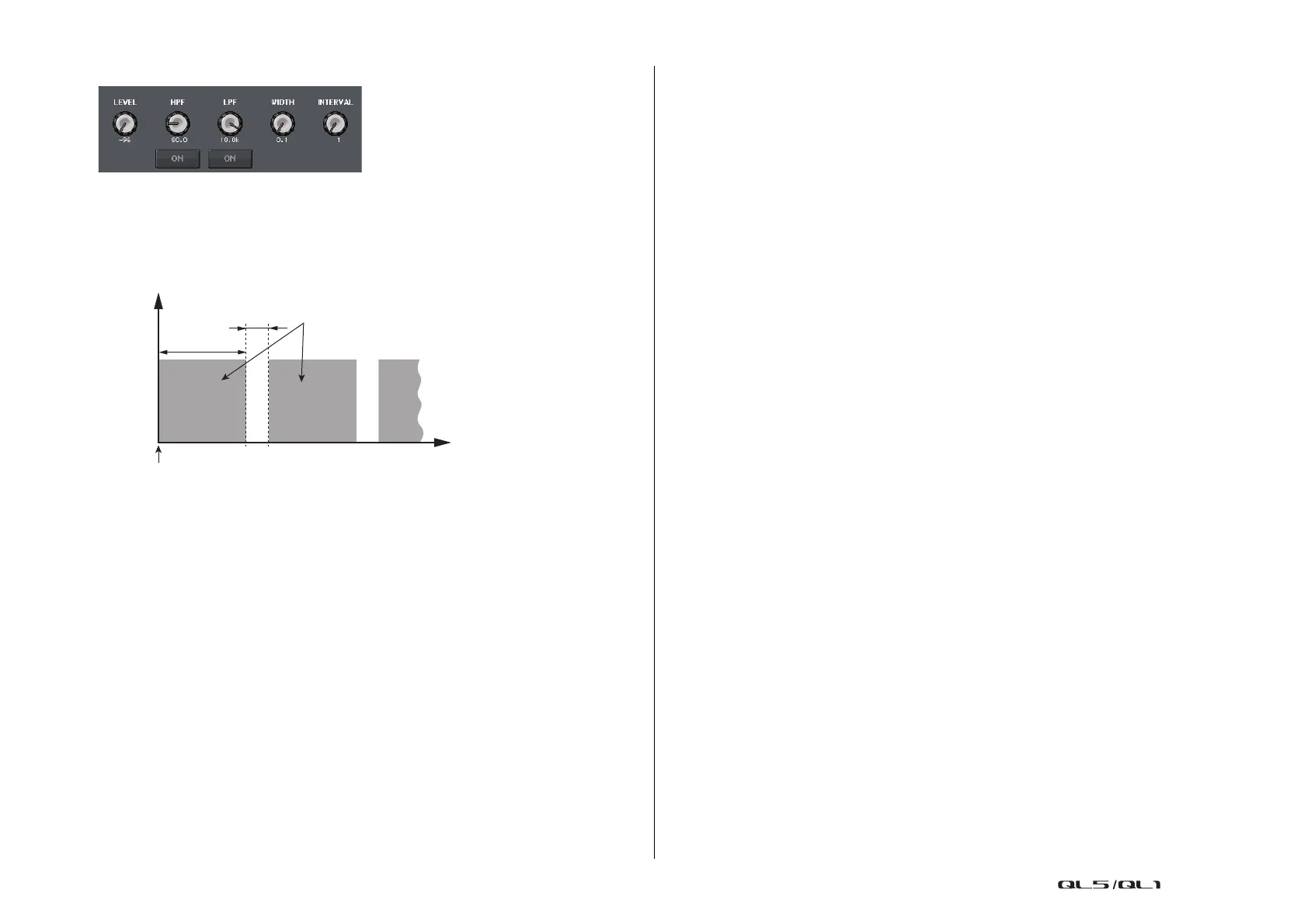

INTERVAL
WIDTH
Level
Time
Pink noise output
Turn BURST NOISE button on.
