OUTPUT channels
Reference Manual
46
• ON (On/off)
Turns the output channel on or off. If this is off, the corresponding channel will be
muted.
• MATRIX ON/OFF (MATRIX send on/off)
This is an on/off switch for signals sent from the MIX channels, STEREO (L/R) channel,
or MONO (C) channel to each MATRIX bus.
• MATRIX (MATRIX send level)
Adjusts the send level of signals sent from the MIX channels, STEREO (L/R) channel, or
MONO (C) channel to each MATRIX bus 1–8. For the position from which the signal will
be sent to the MATRIX bus, you can choose either immediately before the fader, or
immediately after the [ON] key.
If the send-destination MATRIX bus is set to stereo, you can use the PAN knob to adjust
the panning between the two MATRIX buses. If the send-source is a stereo MIX channel
or the STEREO channel, use the BALANCE knob to adjust the volume balance of the left
and right channels sent to the two MATRIX buses.
•INSERT
You can patch the desired output/input ports to insert an external device such as an
effect processor. You can switch the insert-out and insert-in locations.
• METER
Indicates the level of the output channel.
You can switch the position at which the level is detected.
• KEY IN (MIX channels 13–16 only)
You can send the output signals of MIX channels 13–16 to dynamics processors and use
them as key-in signals to control the dynamics.
• RACK IN PATCH
Patches the output signal of an output channel to an input of the rack.
• OUTPUT PATCH
Assigns an output port to an output channel.
• MONITOR SELECT
Selects the output signal of an output channel as a monitor source.
Specifying the channel name, icon, and channel
color
STEP
1. Press the Bank Select keys in the Fader Bank section and the [SEL] keys on the top
panel to select an output channel.
2. In the OVERVIEW screen, press the channel number/channel name field of the
channel for which you want to specify the channel name, icon, and channel color.
3. Follow the steps for the input channels (page 24).

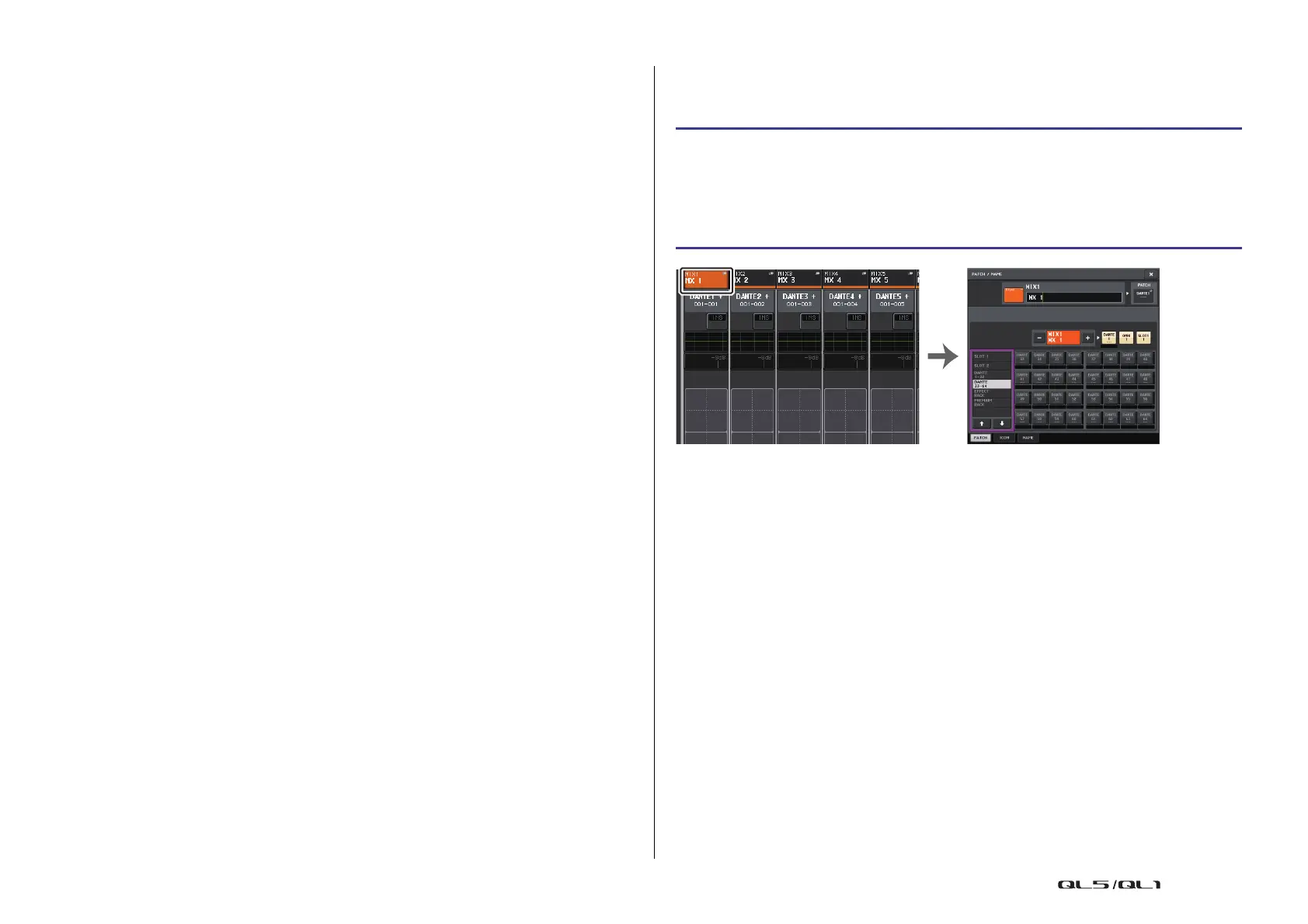

OVERVIEW screen PATCH/NAME screen

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
