Yamaha QL5 Reference Manual

Graphic EQ, Parametric EQ, effects, and Premium Rack
Reference Manual
124

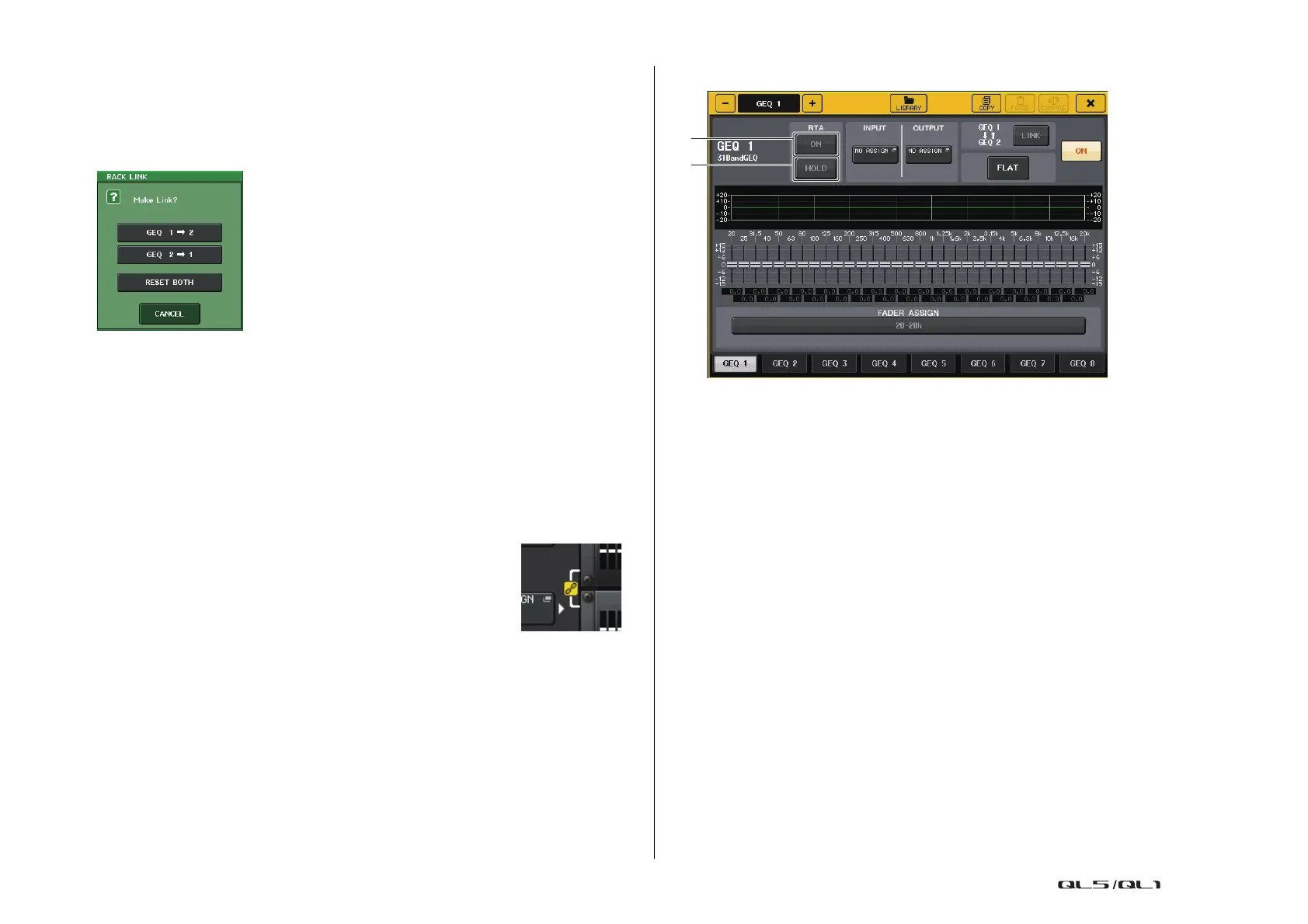

4 RACK LINK button
Press this button to open the RACK LINK window, in which you can link adjacent GEQ
units.
In the case of a 31bandGEQ, the GEQ units in adjacent odd-numbered/even-numbered
racks will be linked. In the case of a Flex15GEQ, the GEQ (A) and GEQ (B) within the
same rack will be linked.
•GEQ x➞y button (“x” and “y” are the rack number, or the rack number and
alphabetical character A or B)
The parameters of “x” will be copied to “y,” and then linked.
•GEQ y➞x button
The parameters of “y” will be copied to “x,” and then linked.
• RESET BOTH button
The parameters of both will be initialized, and then linked.
•CANCEL button
Cancels the link and closes the window.
NOTE
The RACK LINK button is shown only if linking is possible. When you link
GEQ units, a symbol will appear in the GEQ field to indicate the linked
status.
5 FLAT button
Returns all bands of the currently-selected GEQ to 0 dB.
6 GEQ ON/OFF button
Switches the currently-selected GEQ on or off.
For GEQ EDIT window (31BandGEQ, Flex15GEQ)
1 RTA button
Turn this button on to overlay a frequency response graph on the EQ.
2 HOLD button
Press this button to hold the peak of the graph that displays RTA.
2
1

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
