Yamaha QL5 Reference Manual

Graphic EQ, Parametric EQ, effects, and Premium Rack
Reference Manual
147
6 COMP GAIN
Compressor make-up gain. Applied before the limiter.
7 COMP RATIO
Compressor ratio
8 METER SELECT (STEREO mounting)
Selects the signal source for the meter. You can select from IN (input level), GR (gain
reduction), and OUT (output level). When the source is switched, the design of the
meter also switches as follows: VU/GR/VU.

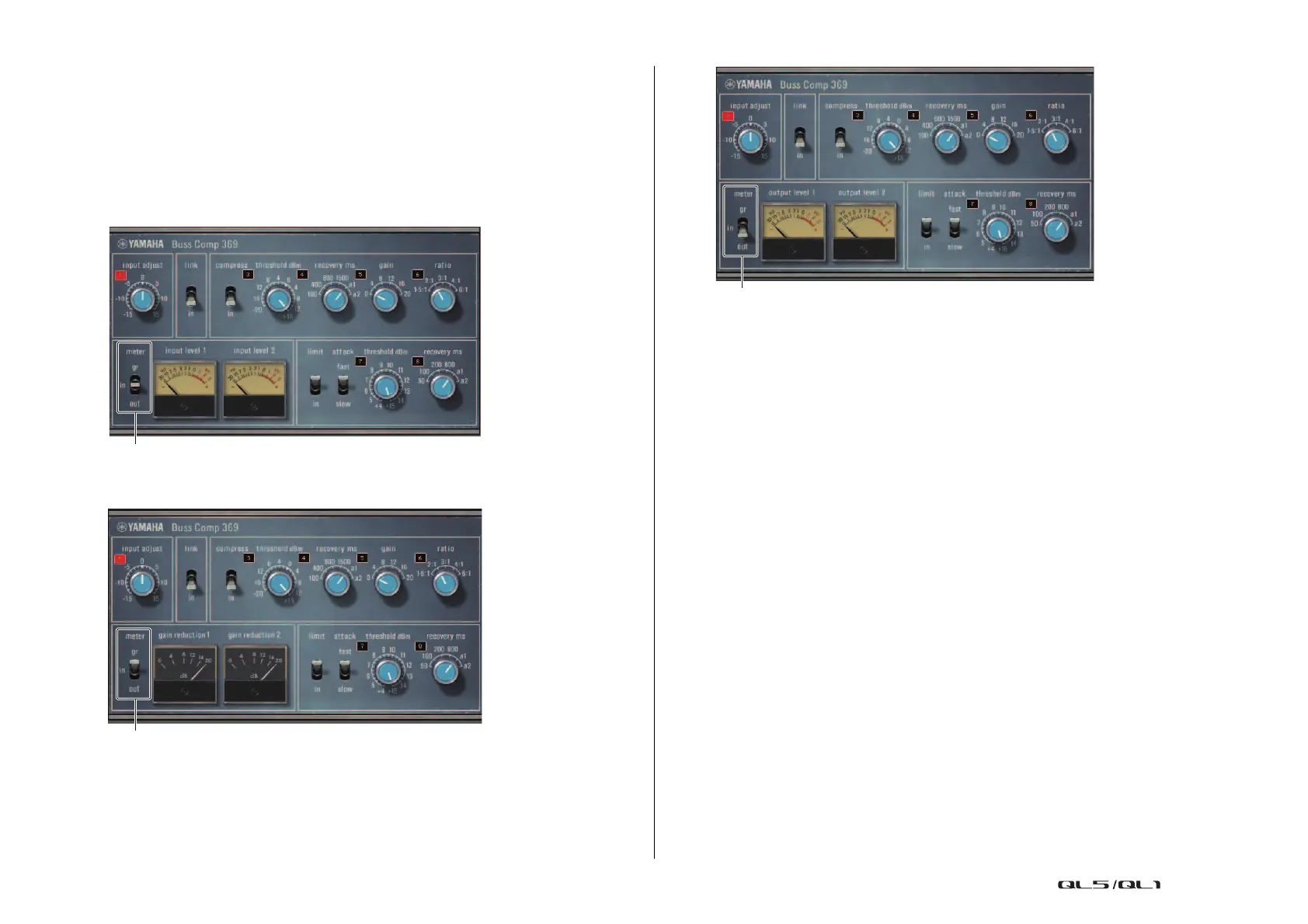

When“METER” is IN
When“METER” is GR
When“METER” is OUT
9 VU SELECT (DUAL mounting)
Selects the signal source for the VU meter. You can select from input level or output level.
0 LIMIT IN
Limiter on/off
A LIMIT ATTACK
Limiter attack time. FAST: 2ms, SLOW: 4ms
B LIMIT THRESHOLD
Limiter threshold. However, the changing value is linked to INPUT ADJUST.
C LIMIT RECOVERY
Limiter release time. The release times for a1 (auto 1) and a2 (auto 2) change
automatically. a1: Changes automatically between 100 ms and 2 sec. a2: Changes
automatically between 50 ms and 5 sec.
8
8
8
