Yamaha QL5 Reference Manual

Recorder
Reference Manual
170

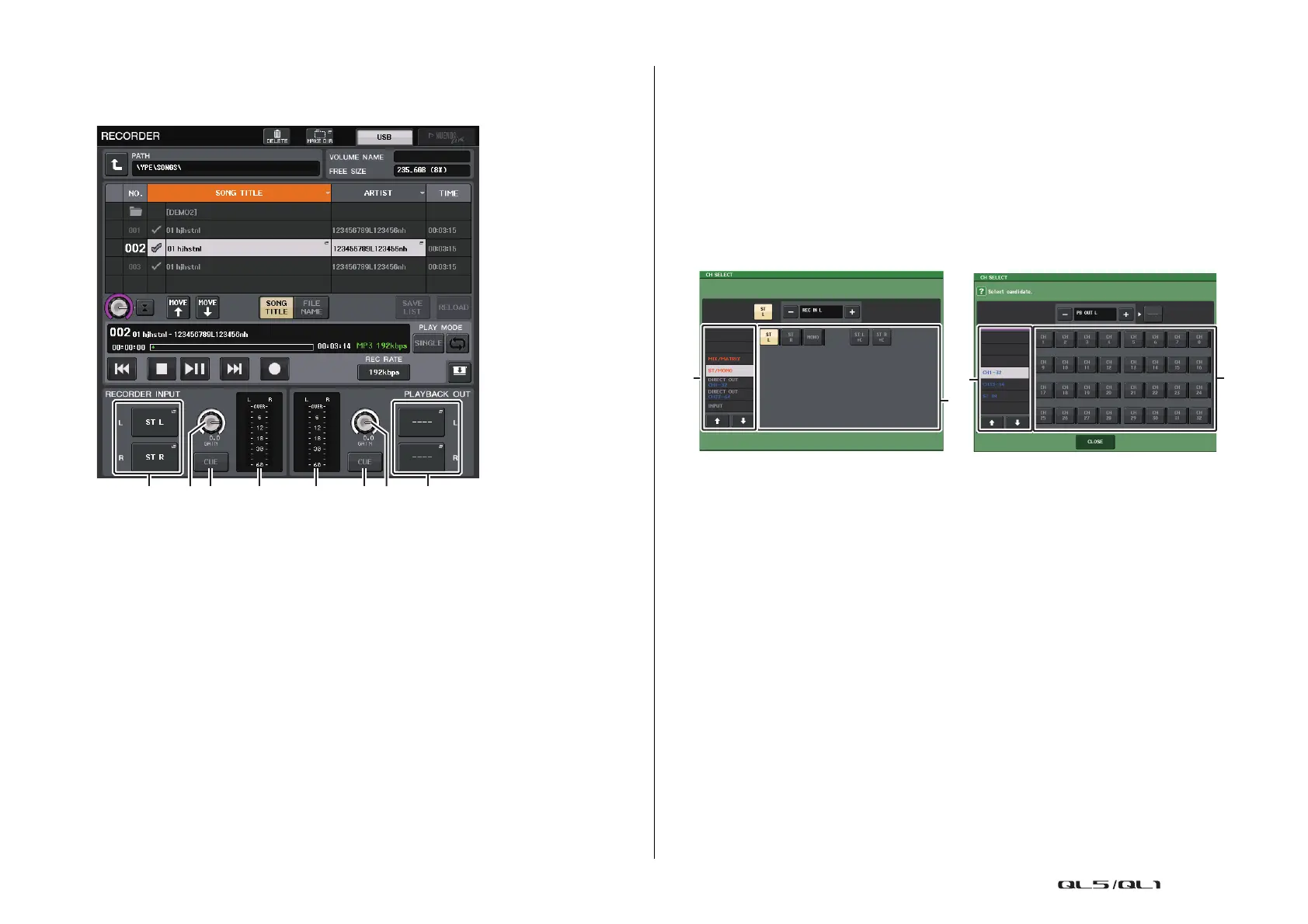

RECORDER screen (when selecting the USB tab)
In this screen you can assign signals to the input and output of the USB memory recorder,
and perform recording and playback operations.
1 RECORDER INPUT L/R buttons
Press these buttons to open the CH SELECT window, in which you can select the signals
patched to the recorder’s L/R input channels.
2 RECORDER INPUT GAIN knob
Sets the level of the signal input to the recorder.
3 RECORDER INPUT CUE button
When this button is turned on, you can monitor the signal input to the recorder.
NOTE
You cannot turn on this button and the PLAYBACK OUTPUT CUE button simultaneously.
4 Meters
Indicate the level of the signals input to the recorder.
5 PLAYBACK OUTPUT L/R buttons
Press these buttons to open the CH SELECT window, in which you can select the signals
patched to the recorder’s L/R output channels for playback.
6 PLAYBACK OUTPUT GAIN knob
Sets the level of the signal output to the recorder.
7 PLAYBACK OUTPUT CUE button
Press this button to monitor the signal output from the recorder.
NOTE
You cannot turn on this button and the RECORDER INPUT CUE button simultaneously.
8 Meters
Indicate the level of the signals output to the recorder.
CH SELECT window
Display this window by pressing the RECORDER INPUT L or R button or the PLAYBACK
OUTPUT L or R button.
1 Category List
Enables you to select the type of channel.
2 Channel select button
Select the channels that will be patched to the USB memory recorder’s inputs and
outputs. The channels that can be patched at input or output are different.
Channels that can be patched to the recorder’s inputs
• MIX 1–16.................... MIX channels 1–16
• MTRX 1–8.................. MATRIX channels 1–8
• ST L/R........................ STEREO channel L/R
• ST L+C....................... STEREO channel L mixed with the MONO(C) channel
• ST R+C ...................... STEREO channel R mixed with the MONO(C) channel
• MONO........................ MONO channel
• CH1–64 (QL5), CH1–32 (QL1)
............................. Direct output of an INPUT channel 1–64 (QL5) or INPUT
channel 1–32 (QL1)
• INPUT ........................ INPUT1–32 (QL1: INPUT1–16)
• SLOT1 IN ................... SLOT1(1)–SLOT1(16)
• SLOT2 IN ................... SLOT2(1)–SLOT2(16)
• DANTE1–32............... DANTE1–DANTE32
• DANTE33–64............. DANTE33–DANTE64 (QL5 only)
1 2 3 4 8765
2
1
2
1

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
