Yamaha QL5 Reference Manual

Setup
Reference Manual
208

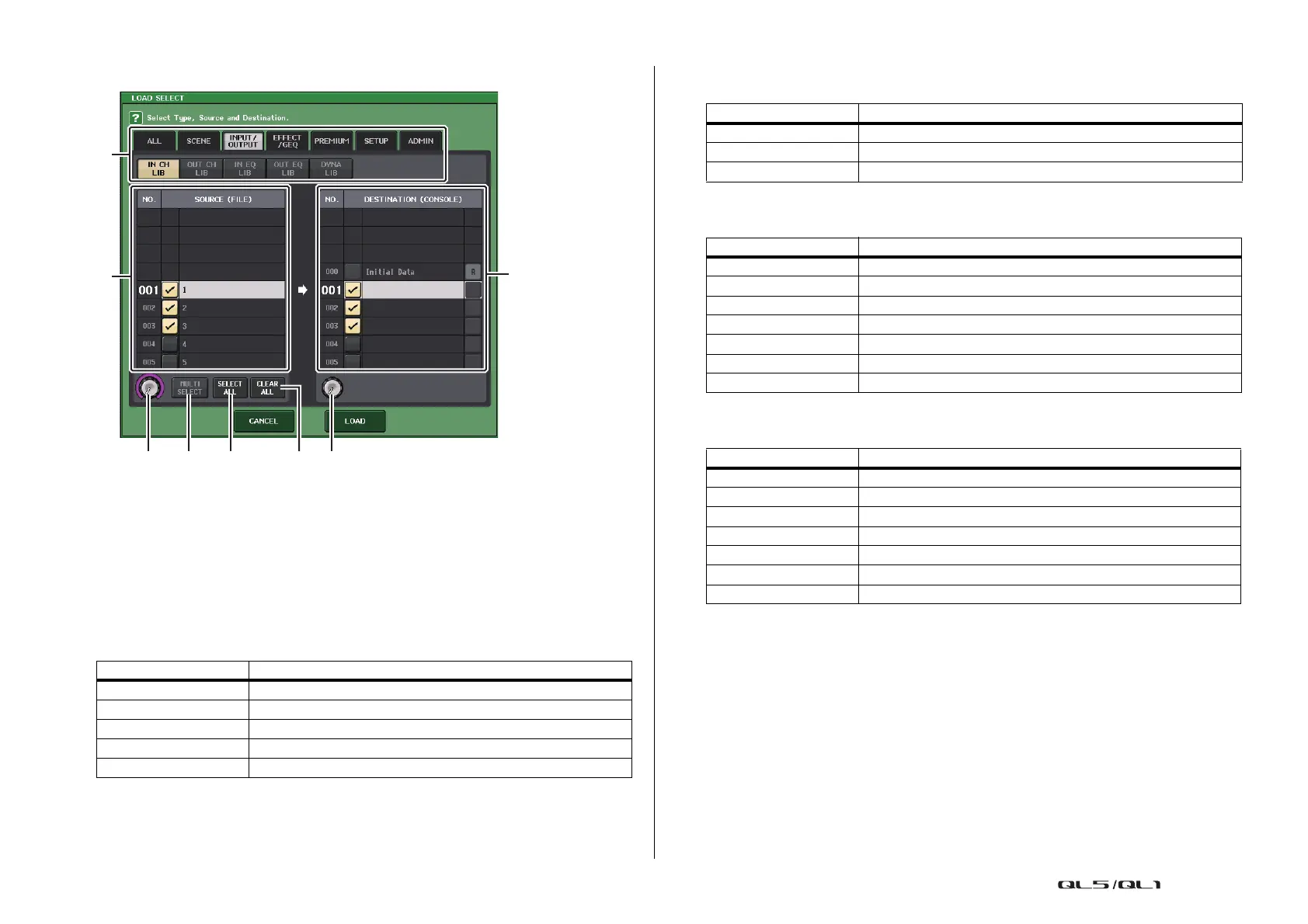

LOAD SELECT screen
1 TYPE field
Indicates the type of data to be loaded. The view will vary depending on the tab you
select.
• ALL tab
This button selects all the items.
•SCENE tab
This button selects scene memories.
• INPUT/OUTPUT tab
The following table lists the items that you can select.
• EFFECT/GEQ tab
The following table lists the items that you can select.
• PREMIUM tab
The following table lists the items that you can select.
• SETUP tab
The following table lists the items that you can select.
NOTE
When the output port items are loaded individually, channel assignments for the port will not be
applied. To prevent this, load and then recall the scene that contains input/output patching for the
channel assignment.
Button Data content
IN CH LIB Input channel library
OUT CH LIB Output channel library
IN EQ LIB Input EQ library
OUT EQ LIB Output EQ library
DYNA LIB Dynamics library
1
47654
2
3
Button Data content
EFFECT LIB Effect library
GEQ LIB GEQ library
8PEQ LIB 8Band PEQ library
Button Data content
5033 LIB Portico 5033 library
5043 LIB Portico 5043 library
U76 LIB U76 library
Opt-2A LIB Opt-2A library
EQ-1A LIB EQ-1A library
DynaEQ LIB DynamicEQ library
BussComp LIB Buss Comp 369 library
Button Data content
MIXER SETUP Mixer setup
OUTPUT PORT Output port
MONITOR CUE/MONITOR/OSCILLATOR/TALKBACK
MIDI SETUP MIDI setup
MIDI PGM MIDI program changes
MIDI CTL MIDI control changes
Dante In Patch Dante input patch library

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
