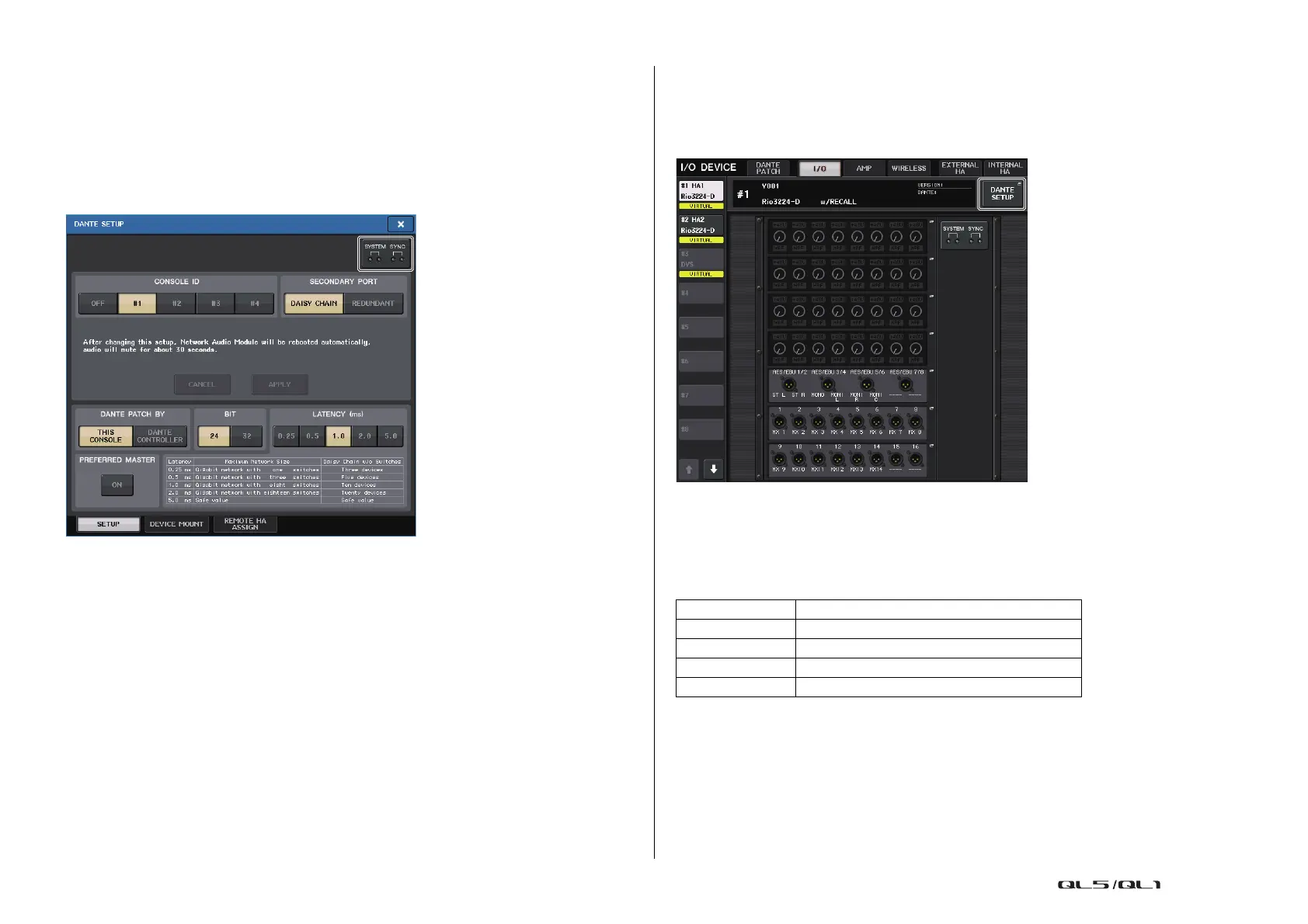

Displaying the device status
You can use the touch screen to verify the status of a connected QL series or R-series unit
(except the Ro8-D) or the Dante status. In order to verify the status of an R-series unit from
the console, it must be assigned to REMOTE HA in DANTE SETUP.
 QL series
The SETUP field of the DANTE SETUP window shows indicators for the status of the QL
series console and the Dante network.
 R-series
The I/O field of the I/O DEVICE screen shows indicators for the status of the R-series units
and the Dante network.
For firmware that predates support for V1.60, the version indication will be yellow and the
indicator will be unlit.
Messages
Error, warning, and information messages are displayed.
Messages are also displayed in the Dante Controller Error Status field.
Each indicator lights or flashes as described below:
No call-out Unlit
Lit The indicator remains lit steadily.
Blinking The indicator continues to flash.
Flash x2 The indicator flashes twice cyclically.
Flash x3 The indicator flashes three times cyclically.

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
