Yamaha QL5 Reference Manual

Input channels
Reference Manual
33

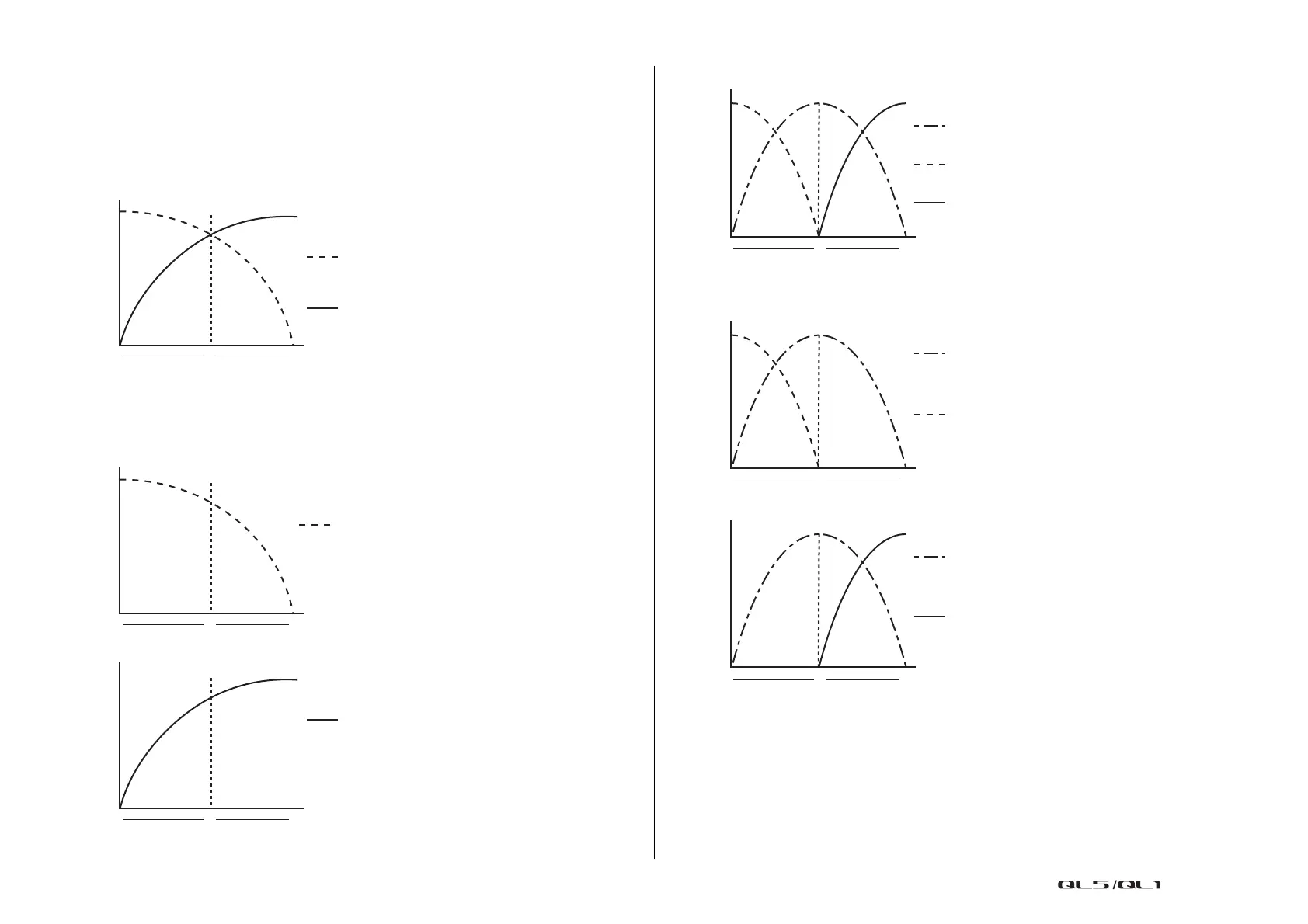

Signal level when LCR mode is selected
If LCR mode is selected, the signal level sent to the STEREO (L/R) bus and MONO (C) bus
will vary according to the settings of the CSR knob and the TO ST PAN knob.
 When the CSR knob is set to 0% (INPUT channel (monaural))
The TO ST PAN knob operates as a conventional PAN knob, and no signal is sent to the
MONO (C) bus.
 When the CSR knob is set to 0% (ST IN channel (stereo))
The TO ST BALANCE knob operates as a conventional BALANCE knob, and no signal is sent
to the MONO (C) bus.
 When the CSR knob is set to 100%
 When the CSR knob is set to 100% (ST IN channel)
CLR
TO ST PAN knob
Signal sent to the STEREO (L) bus
Signal sent to the STEREO (R) bus
Signal level
CLR
TO ST BALANCE knob
Signal sent from the STEREO (L)
channel to the STEREO (L) bus
Signal level
CLR
Signal sent from the STEREO (R)
channel to the STEREO (R) bus
TO ST BALANCE knob
Signal level
CLR
Signal sent to the MONO (C) bus
Signal sent to the STEREO (L) bus
Signal sent to the STEREO (R) bus
TO ST PAN knob
Signal level
CLR
Signal sent from the ST IN (L) channel to
the MONO (C) bus
Signal sent from the ST IN (L) channel to
the STEREO (L) bus
TO ST BALANCE knob
Signal level
CLR
Signal sent from the ST IN (R) channel to
the MONO (C) bus
Signal sent from the ST IN (R) channel to
the STEREO (R) bus
TO ST BALANCE knob
Signal level

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
