Input channels
Reference Manual
41
5 LFE knob
This sets the level of the LFE (Low Frequency Effects) Channel.
Use the SEND knob (MIX 6) of the Selected Channel section to make adjustments.
6 Surround position
The color of the ball shown here changes depending on whether the surround position
is a hard pan (panned fully left or right) or any other setting.
Hard pan: Red
Any other setting: Orange
7 Surround graph
This graph shows the surround positions. Press here to open the SURROUND PAN 1CH
screen.

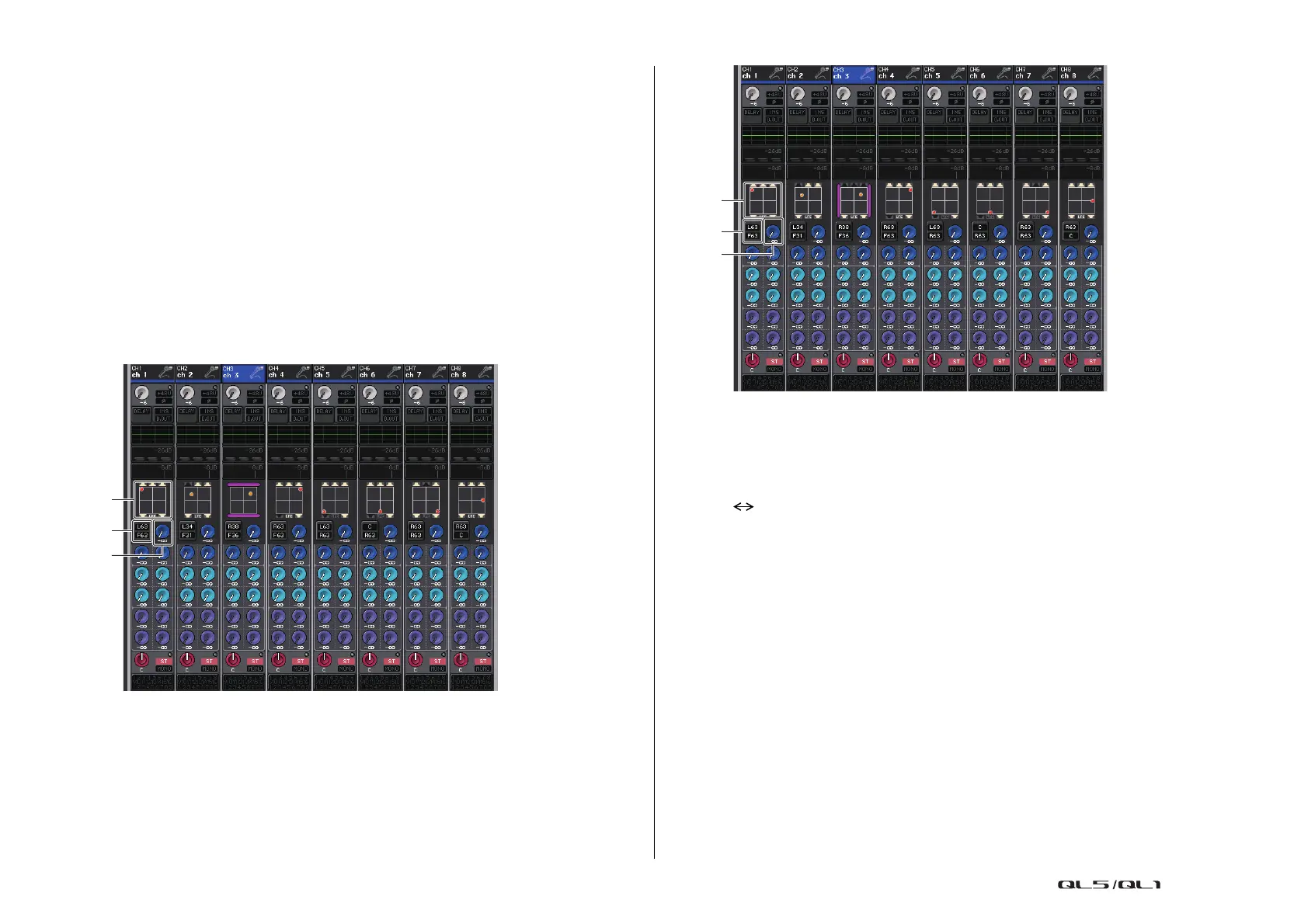

OVERVIEW screen
If you set a bus to Surround mode in BUS SETUP, the OVERVIEW screen appears as shown
below.
1 Surround graph
This graph shows the surround positions. Press here to open the SURROUND PAN 1CH
screen.
2 L/R F/R switch button
Use this toggle button to switch between the screen for adjusting L/R and the screen for
adjusting F/R.
You can use the [TOUCH AND TURN] knob to adjust this.
3 LFE knob
This sets the level of the LFE (Low Frequency Effects) Channel.
You can use the [TOUCH AND TURN] knob to adjust this.
3
2
1
To Next Page
