Yamaha QL5 Reference Manual

Input channels
Reference Manual
43

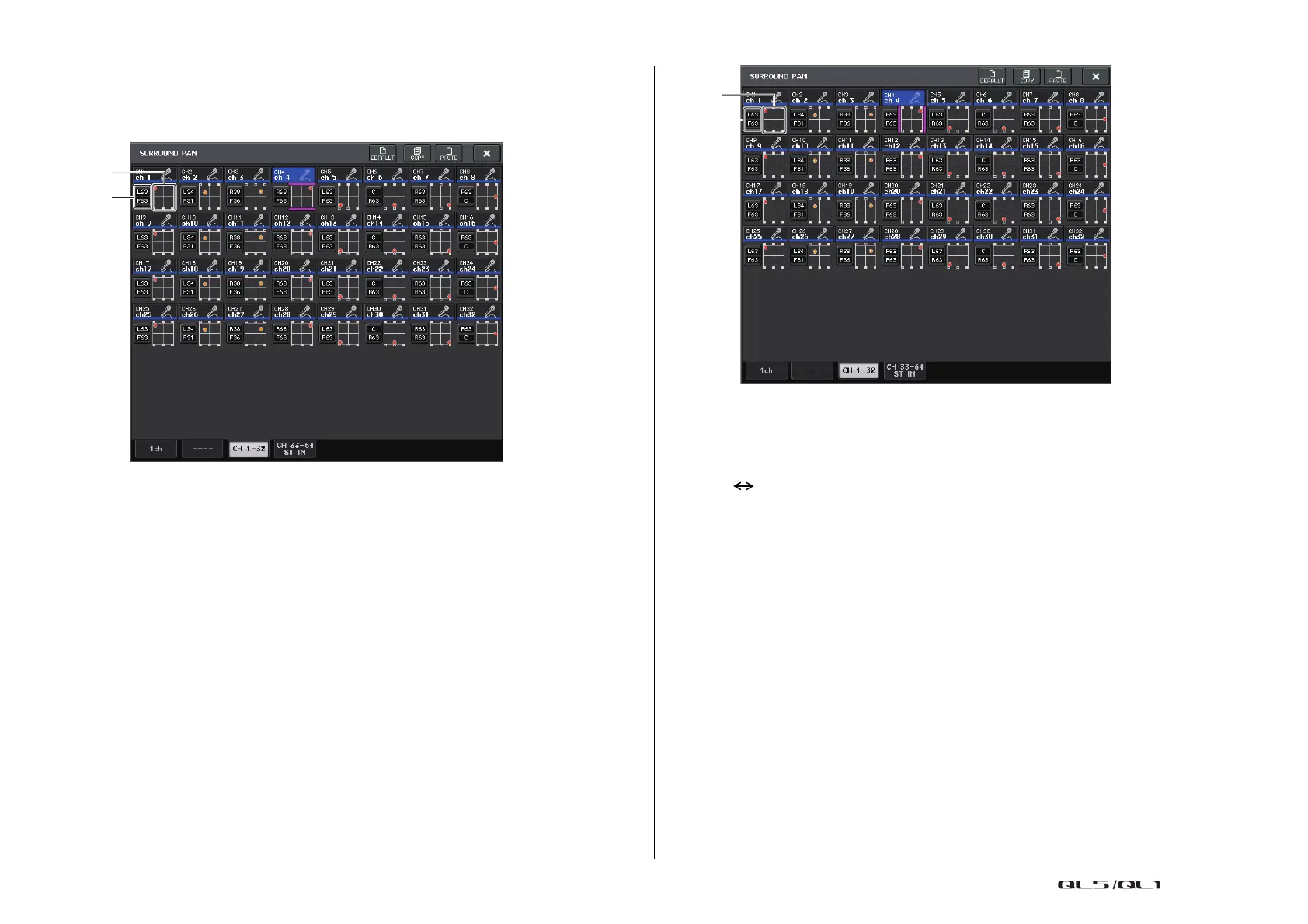

SURROUND PAN screen (1-32, 33-64/ST IN(QL5), ST IN (QL1))
If you set a bus to Surround mode in BUS SETUP, the SURROUND PAN screen (1-32, 33-64/
ST IN(QL5), ST IN (QL1)) appears as shown below. This screen is displayed when you press
the pan display area in the SELECTED CHANNEL VIEW screen or the OVERVIEW screen.
1 Surround graph
This graph shows the surround positions.
2 L/R F/R switch button
Use this toggle button to switch between the screen for adjusting L/R and the screen for
adjusting F/R.
You can use the [TOUCH AND TURN] knob to adjust this.
1
2
Adjusting L/R
1
2
Adjusting F/R

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
