CONNECTIONS
Advanced speaker configuration
En 25
■

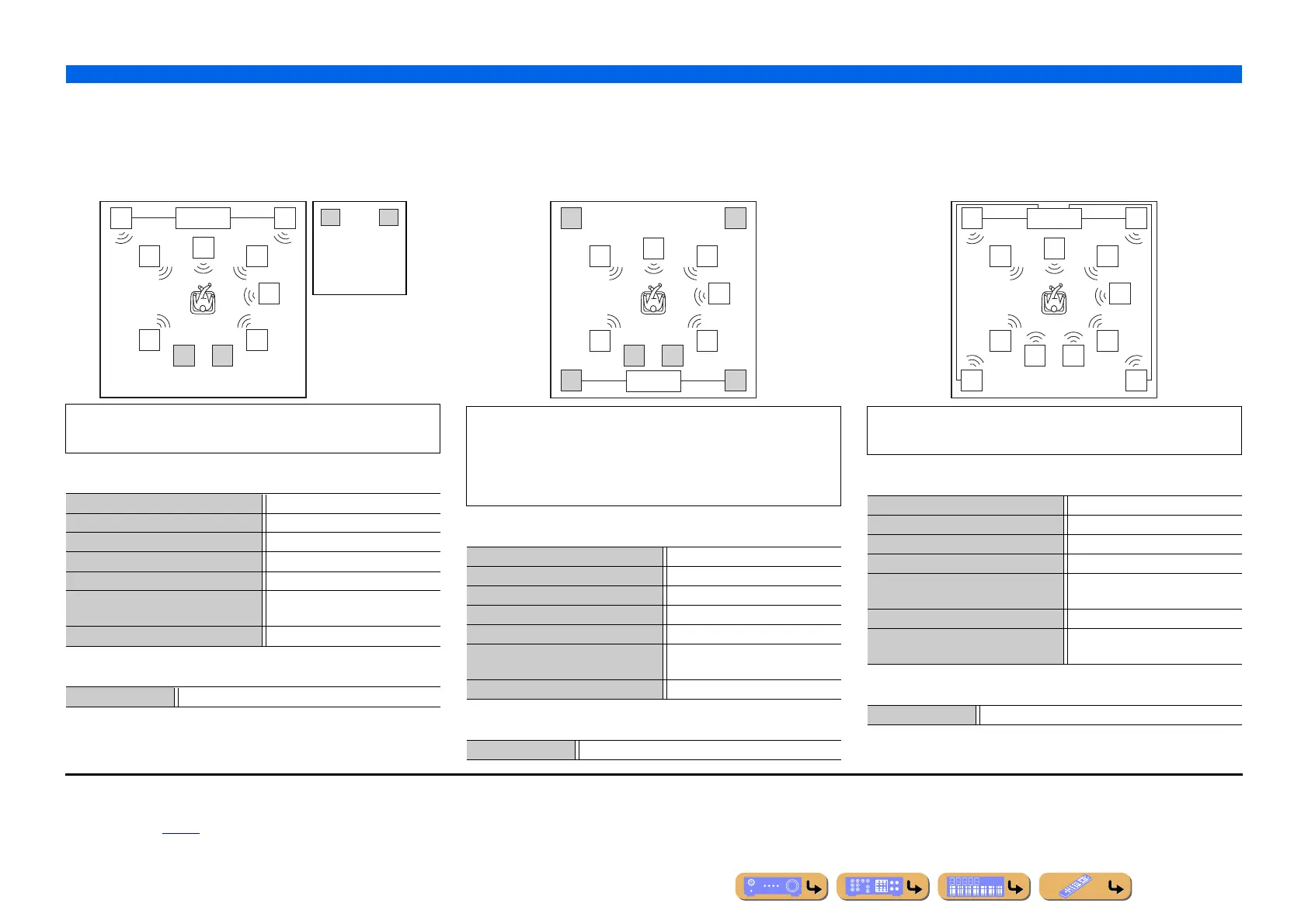

Using the presence speakers in the main
room and speakers in another room
■ 9.1-channel speaker layout
(7 speakers + subwoofer + external front presence
speakers + front speakers (in secondary zone))
■ Connections of speakers
■ Assigning a speaker configuration
■
Using the external amplifier to output the
rear presence speaker channel
■ 9.1-channel speaker layout
(7 speakers + subwoofer + external rear presence
speakers)
■ Connections of speakers
■ Assigning a speaker configuration
■
Using the external amplifier to output the
front and rear presence speaker channels
■ 11.1-channel speaker layout
(7 speakers + subwoofer + front and rear presence
speakers)
■ Connections of speakers
■ Assigning a speaker configuration
The presence speakers in the main room can be used while the
front speakers in another room are used. J1
FRONT jacks Front L/R speakers
CENTER jack Center speaker
SURROUND jacks Surround L/R speakers
SURROUND BACK jacks Surround back L/R speakers
EXTRA SP1 jacks J2 Zone2 speakers
F.PRESENCE (PRE OUT) jacks External amplifier
(for front presence L/R speakers)
SUBWOOFER (PRE OUT) jack J3 Subwoofer
Power Amp Assign 7ch + FPR + 1ZONE
L
R
L
C
R
SL SR
SBRSBL
SW
EA
FPR
FPL
This unit automatically selects the front presence speakers or
surround back speakers to output sounds according to the
selected sound program. J1
The rear presence speaker channel cannot be output when the
front presence speaker channel is not output. J4
FRONT jacks Front L/R speakers
CENTER jack Center speaker
SURROUND jacks Surround L/R speakers
SURROUND BACK jacks Surround back L/R speakers
SUBWOOFER (PRE OUT) jack J3 Subwoofer
R.PRESENCE (ZONE OUT) jacks External amplifier
(for rear presence L/R speakers)
EXTRA SP1 jacks Front presence L/R speakers
Power Amp Assign 7ch + RPR
L
C
R
SL SR
SW
EA
FPR
FPL
SBRSBL
RPR
RPL
The front and rear presence, surround back and surround
speakers can be output at the same time. J4
FRONT jacks Front L/R speakers
CENTER jack Center speaker
SURROUND jacks Surround L/R speakers
SURROUND BACK jacks Surround back L/R speakers
F.PRESENCE (PRE OUT) jacks External amplifier
(for front presence L/R speakers)
SUBWOOFER (PRE OUT) jack J3 Subwoofer
R.PRESENCE (ZONE OUT) jacks External amplifier
(for rear presence L/R speakers)
Power Amp Assign 7ch + FPR + RPR
L
C
R
SL SR
SW
EA
FPR
FPL
SBRSBL
RPR
RPL
J
1 : Sound cannot be output from the surround back speakers when it is output from
the speakers connected to the EXTRA SP1 jacks.
J
2 : EXTRA SP1 jacks can also be assigned to the Zone3 speakers with “Power
Amp Assign” (☞
p. 116).
J
3 : You can also use two subwoofers by connecting them to both SUBWOOFER1
(FRONT) and SUBWOOFER2 (REAR) jacks.
J
4 : The sound cannot be output for Zone3 in this condition.
To Next Page
