ENGINE REMOVAL
5-9

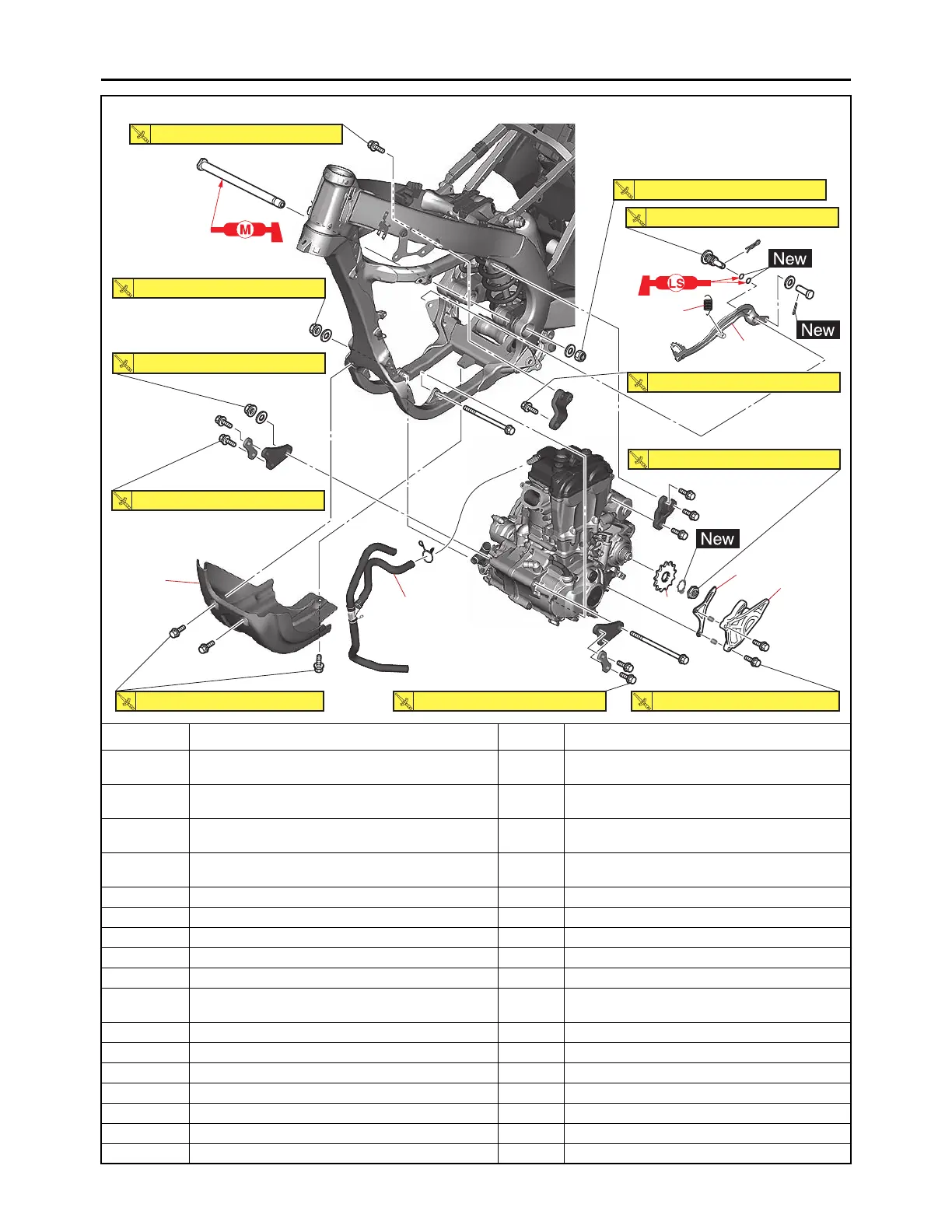

Removing the engine
Order Job/Parts to remove Q’ty Remarks
Use a maintenance stand to raise the front
wheel off the ground.
Seat
Refer to “GENERAL CHASSIS” on page
4-1.
Side cover (left/right)
Refer to “GENERAL CHASSIS” on page
4-1.
Air scoop (left/right)
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Exhaust pipe/Silencer Refer to “ENGINE REMOVAL” on page 5-6.
Air filter case Refer to “THROTTLE BODY” on page 7-4.
Throttle body Refer to “THROTTLE BODY” on page 7-4.
Clutch cable Refer to “CLUTCH” on page 5-48.
Shift pedal/Drive chain
Refer to “SHIFT SHAFT” on page 5-56.
Refer to “CHAIN DRIVE” on page 4-69.
1 Engine guard 1
2 Brake pedal 1
3Spring 1
4 Cylinder head breather hose 1
5 Drive sprocket cover 1
6 Drive chain guide 1
7 Drive sprocket 1
7 N・m (0.7 kgf・m, 5.2 lb・ft) 34 N・m (3.4 kgf・m, 25 lb・ft)
85 N・m (8.5 kgf・m, 63 lb・ft)
75 N・m (7.5 kgf・m, 55 lb・ft)
34 N・m (3.4 kgf・m, 25 lb・ft)
53 N・m (5.3 kgf・m, 39 lb・ft)
55 N・m (5.5 kgf・m, 41 lb・ft)
26 N・m (2.6 kgf・m, 19 lb・ft)
34 N・m (3.4 kgf・m, 25 lb・ft)
45 N・m (4.5 kgf・m, 33 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
