YASKAWA CIMR-JA Series User Manual

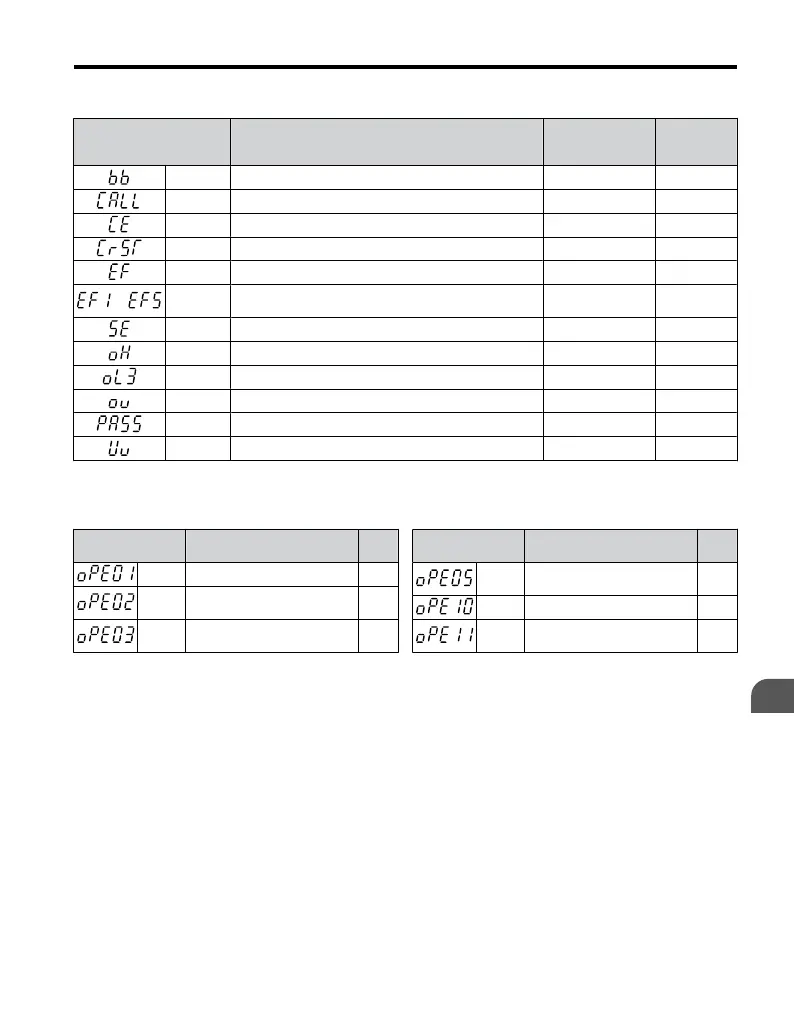

Table 5.4 Minor Fault and Alarm Displays
LED Operator Display Name
Minor Fault
Output
(H2-01 = 10)
Page
bb Drive Baseblock No output 134
CALL Serial Communication Transmission Error YES 134
CE MEMOBUS/Modbus Communication Error YES 134
CrST Can Not Reset YES 135
EF Run Command Input Error YES 135
to
EF1 to
EF5
External Fault (input terminal S1 to S5) YES 135
SE MEMOBUS/Modbus Test Mode Fault YES 137
oH Heatsink Overheat YES 136
oL3 Overtorque 1 YES 136
ov Overvoltage YES 136
PASS MEMOBUS/Modbus Test Mode Complete No output 137
Uv Undervoltage YES 137
n
Operation Errors
Table 5.5 Operation Error Displays
LED Operator
Display
Name Page
oPE01 Drive Unit Setting Error 139
oPE02
Parameter Setting Range
Error
139
oPE03
Multi-Function Input Setting
Error
139
LED Operator
Display
Name Page
oPE05
Run Command Selection
Error
140
oPE10 V/f Data Setting Error 140
oPE11
Carrier Frequency Setting
Error
140
5.3 Drive Alarms, Faults, and Errors
YASKAWA ELECTRIC TOEP C710606 25B YASKAWA AC Drive J1000 Installation & Start-Up Manual
125
5
Troubleshooting
2/6/2008-14:44
