A – Power supply
B – Drive
C – Output-side noise filter
D – Motor

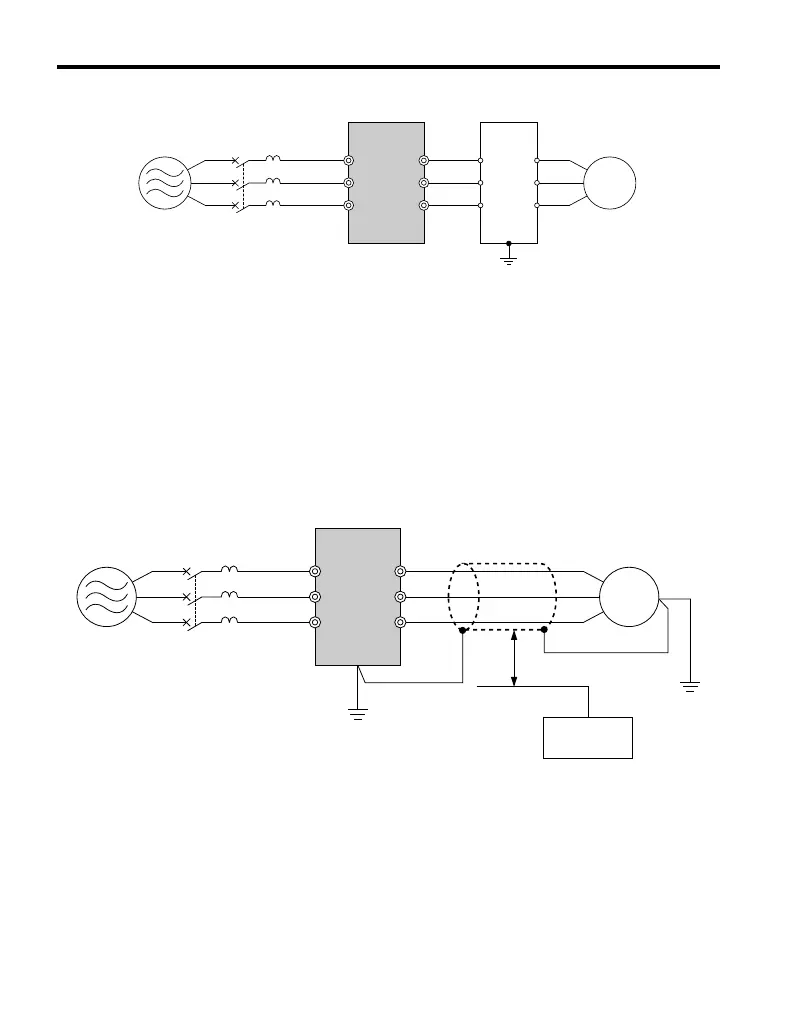

Figure 7.8 Output-Side Noise Filter
• Radiated Noise: Electromagnetic waves radiated from the drive and cables create noise
throughout the radio bandwidth that can affect devices.
• Induced Noise: Noise generated by electromagnetic induction can affect the signal line
and may cause the controller to malfunction.
Preventing Induced Noise
Use a noise filter on the output side or use shielded cables. Lay the cables at least 30 cm away
from the signal line to prevent induced noise.
B
A
C
F
G
D
E
R/L1
MCCB
S/L2
T/L3
U/T1
V/T2
W/T3
A – Power supply
B – Drive
C – Shielded motor cable
D – Motor
E – Separate at least 30 cm
F – Controller
G – Signal line
Figure 7.9 Preventing Induced Noise
