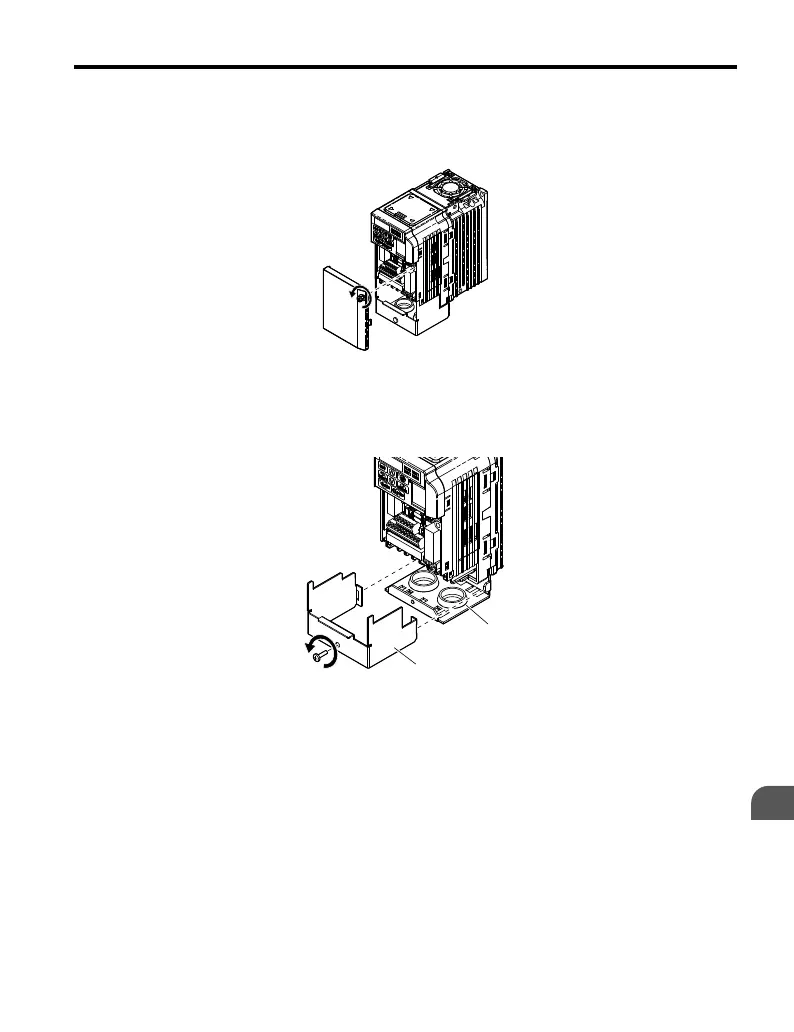

Removing the Protective Covers on a NEMA Type 1 Design
1.
Loosen the screw on the front cover to remove the front cover.
Figure 7.12 Remove the Front Cover on a NEMA Type 1 Drive
2.
Loosen
the
screw
on
the
terminal
cover
(Figure 7.13, B) to remove the terminal cover
and expose the conduit bracket (Figure 7.13, A).
A
B
Figure 7.13 Remove the Terminal Cover on a NEMA Type 1 Drive
3.
Loosen two screws attaching the conduit bracket (Figure 7.14, A) to remove.
7.4 Installing Peripheral Devices
YASKAWA ELECTRIC TOEP C710606 25B YASKAWA AC Drive J1000 Installation & Start-Up Manual
183
7
Peripheral Devices & Options
