H
X
L
W
Y
LINE
A
PE
LOAD

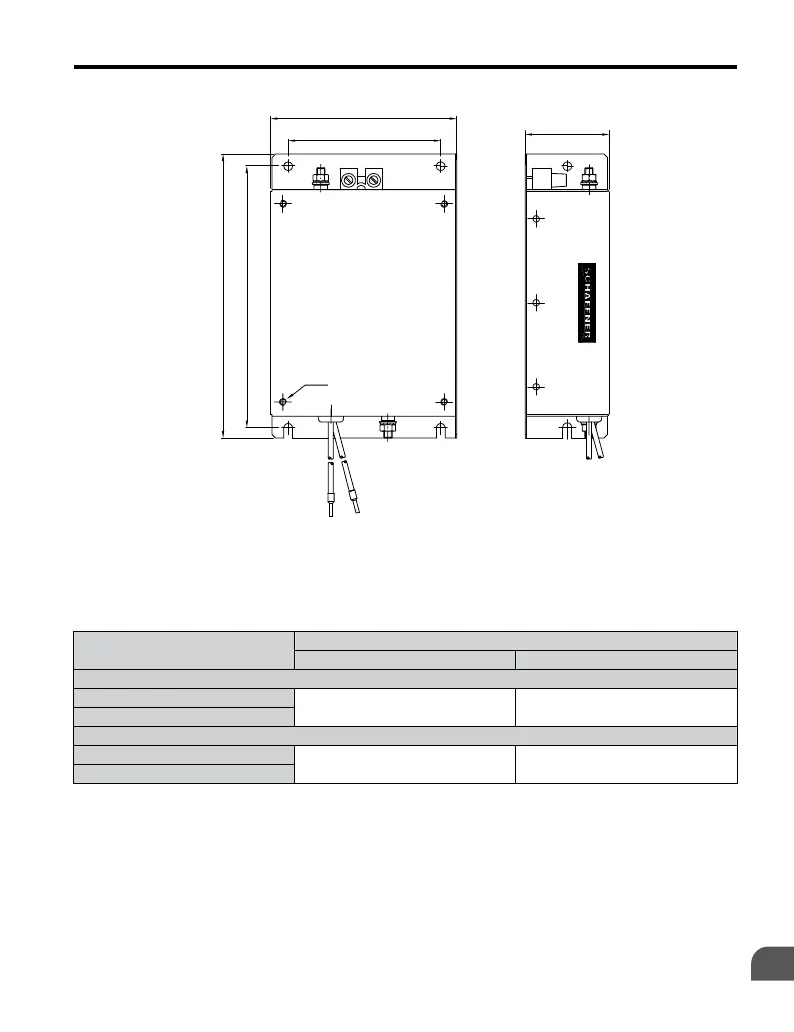

Figure C.6 EMC Filter Dimensions
n
DC Reactors for EN 61000-3-2 Compliance
Table C.3 DC Reactors for Harmonics Reduction
Drive Type
CIMR-Jo
DC Reactor
Model Rating
200V Three-Phase Units
2A0004
UZDA-B
5.4 A
8 mH
2A0006
400 V Three-Phase Units
4A0002
UZDA-B
3.2 A
28 mH
4A0004
Note: Contact Yaskawa for information about DC reactors for other models.
