YASKAWA CIMR-JA Series User Manual

n
IP20/Open-Chassis Drives

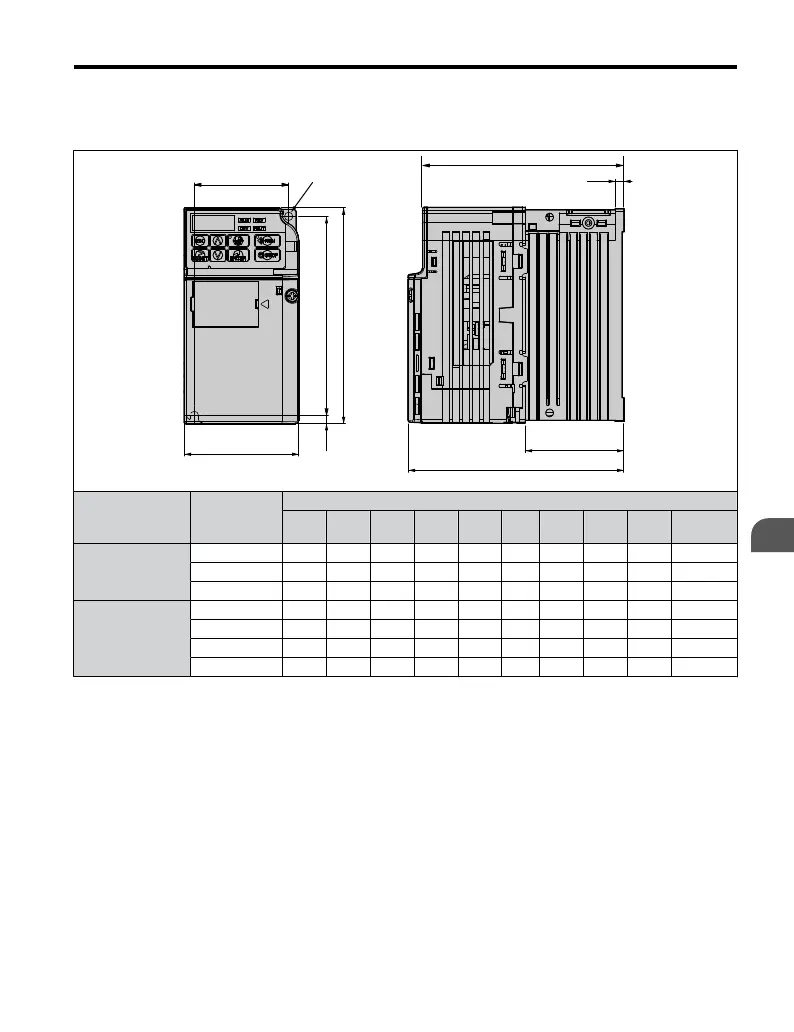

Table 2.3 IP20/Open-Chassis (without an EMC filter)
t1
D1
D
W
H1H2
H
2-M4
W1
D2
Voltage Class
Drive Model
CIMR-Jo
Dimensions (mm)
W H D W1 H1 H2 D1 D2 t1
Weight
(kg)
Single-Phase
200 V Class
BA0001B 68 128 76 56 118 5 6.5 67.5 3 0.6
BA0002B 68 128 76 56 118 5 6.5 67.5 3 0.6
BA0003B 68 128 118 56 118 5 38.5 109.5 5 1.0
Three-Phase
200 V Class
2A0001B 68 128 76 56 118 5 6.5 67.5 3 0.6
2A0002B 68 128 76 56 118 5 6.5 67.5 3 0.6
2A0004B 68 128 108 56 118 5 38.5 99.5 5 0.9
2A0006B 68 128 128 56 118 5 58.5 119.5 5 1.1
2.2 Mechanical Installation
YASKAWA ELECTRIC TOEP C710606 25B YASKAWA AC Drive J1000 Installation & Start-Up Manual
37
2
Mechanical Installation
2/6/2008-14:44
