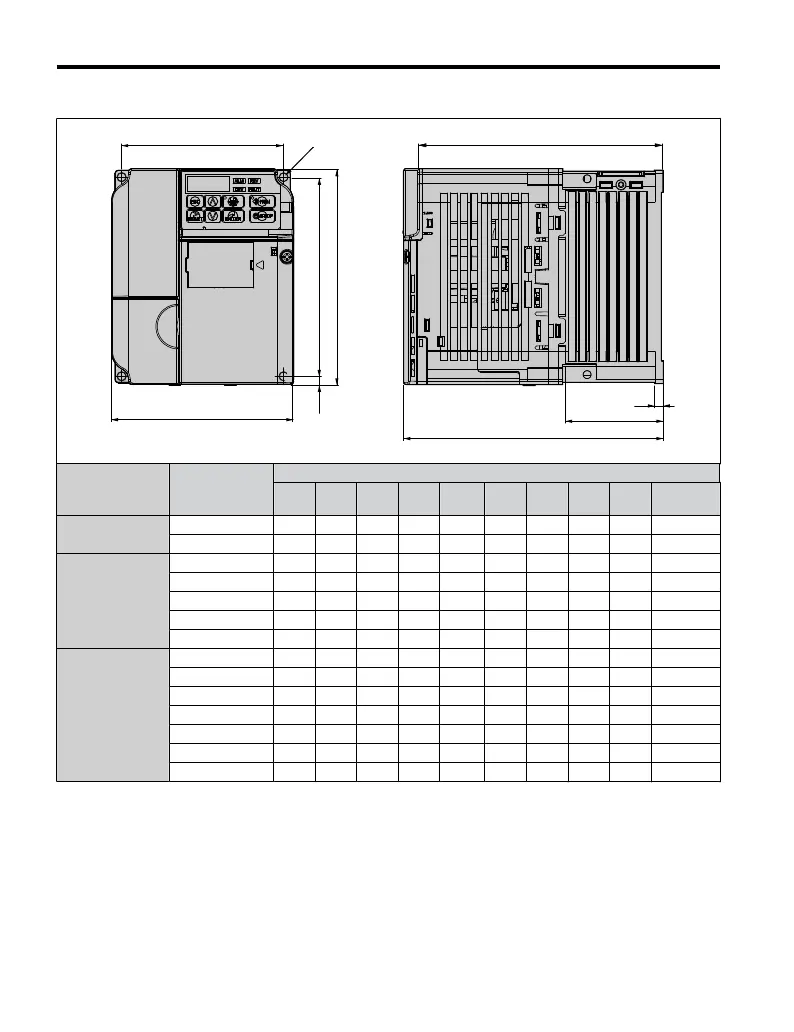

Table 2.4 IP20/Open-Chassis (without an EMC filter)
t1
D
D1
4-M4
H
W1
W
H2 H1
D2
Voltage Class
Drive Model
CIMR-Jo
Dimensions (mm)
W H D W1 H1 H2 D1 D2 t1
Weight
(kg)
Single-Phase
200 V Class
BA0006B 108 128 137.5 96 118 5 58 129 5 1.7
BA0010B 108 128 154 96 118 5 58 145.5 5 1.8
Three-Phase
200 V Class
2A0008B 108 128 129 96 118 5 58 120.5 5 1.7
2A0010B 108 128 129 96 118 5 58 120.5 5 1.7
2A0012B 108 128 137.5 96 118 5 58 129 5 1.7
2A0018B 140 128 143 128 118 5 65 134.5 5 2.4
2A0020B 140 128 143 128 118 5 65 134.5 5 2.4
Three-Phase
400 V Class
4A0001B 108 128 81 96 118 5 10 72.5 5 1.0
4A0002B 108 128 99 96 118 5 28 90.5 5 1.2
4A0004B 108 128 137.5 96 118 5 58 129 5 1.7
4A0005B 108 128 154 96 118 5 58 145.5 5 1.7
4A0007B 108 128 154 96 118 5 58 145.5 5 1.7
4A0009B 108 128 154 96 118 5 58 145.5 5 1.7
4A0011B 140 128 143 128 118 5 65 134.5 5 2.4
2.2 Mechanical Installation
38
YASKAWA ELECTRIC TOEP C710606 25B YASKAWA AC Drive J1000 Installation & Start-Up Manual
