Startup Procedure and Test Run
4
4.2 Overview of Keypad Components and Functions
YASKAWA SIEPC71061753C GA500 Technical Manual 121
4.2 Overview of Keypad Components and Functions

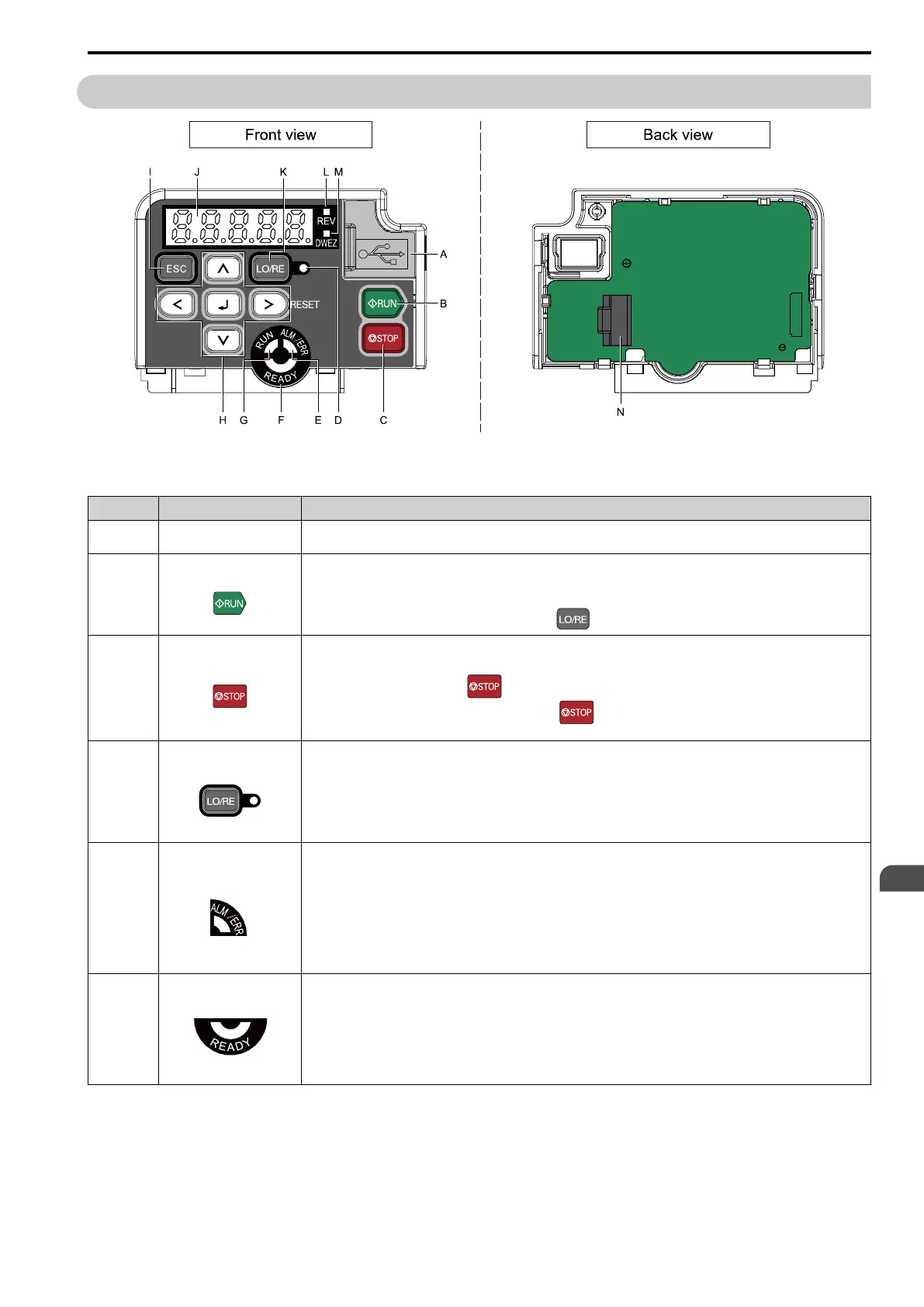

Figure 4.1 Keypad
Table 4.1 Keypad Components and Functions
Symbol Name Function
A USB Terminal Pass-through
Pass-through point to connect a USB cable to the drive to support the DriveWizard PC tool and the DriveWizard Mobile App.
Uses a USB cable (USB standard 2.0, type A - mini-B) to connect the drive to a PC, Android smartphone, or tablet.
B
RUN Key
Starts the drive in LOCAL Mode.
Starts the operation in Auto-Tuning Mode.
Note:
Before you use the keypad to operate the motor, push on the keypad to set the drive to LOCAL Mode.
C
STOP Key
Stops drive operation.
Note:
Uses a stop-priority circuit. Push to stop the motor. This will also apply when a Run command (REMOTE Mode) is
active at an external Run command source. To disable priority, set o2-02 = 0 [STOP Key Function Selection =
Disabled].
D
LO/RE LED
Illuminated: The keypad controls the Run command (LOCAL Mode).
OFF: The control circuit terminal or serial transmission device controls the Run command (REMOTE Mode).
Note:
• LOCAL: Use the keypad to operate the drive. Use the keypad to enter Run/Stop commands and the frequency reference
command.
• REMOTE: Use the control circuit terminal or serial transmission to operate the drive. Use the frequency reference source
entered in b1-01 and the Run command source selected in b1-02.
E
ALM/ERR LED
Illuminated: The drive detects a fault.
OFF: There are no drive faults or alarms.
Flashing:
• Alarm
• Operation Errors
• An Auto-Tuning error
Note:
The LED will illuminate to identify a fault if the drive detects a fault and an alarm at the same time.
F
READY LED
Illuminated: The drive is operating or is ready for operation.
OFF:
• The drive detects a fault.
• There is no fault and the drive received a Run command, but the drive cannot run. For example, in Programming Mode.
Flashing: The drive is in STo [Safe Torque OFF] condition.
Flashing quickly: The voltage of the main circuit power supply is not in the drive nameplate specifications, and the external 24 V
power supply is providing the only power to the drive.
To Next Page
