10.8 Drive Exterior and Mounting Dimensions
YASKAWA SIEPC71061753C GA500 Technical Manual 349
◆ Finless-Type Drive
■ B001 to B004, 2001 to 2006

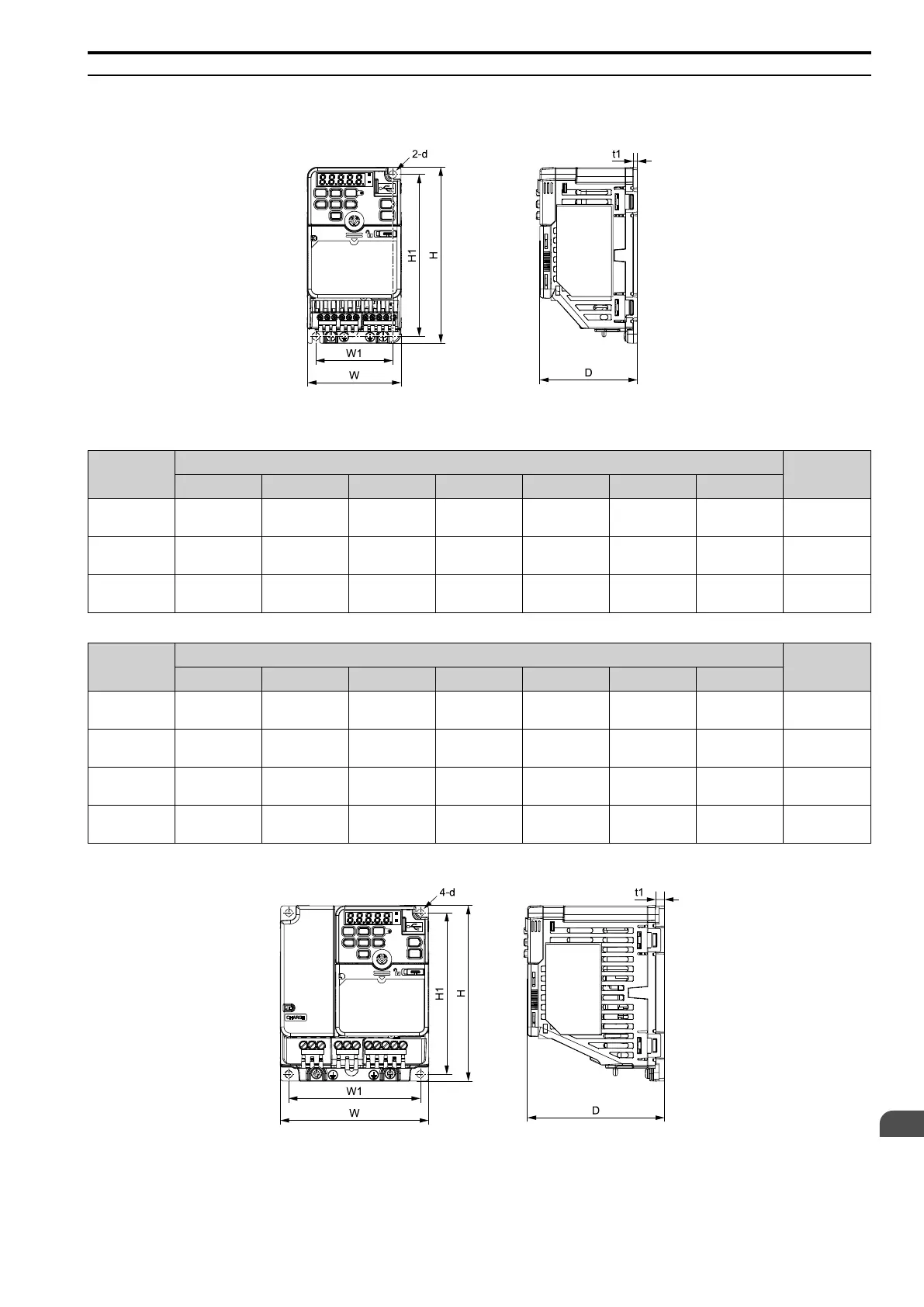

Figure 10.5 Exterior and Mounting Dimensions
Table 10.36 Single-Phase 200 V Class (Finless-Type Drive)
Model
Dimensions mm (in)
Est. Weight
kg (lb)
W H D W1 H1 t1 d
B001
68
(2.68)
128
(5.04)
71
(2.80)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
B002
68
(2.68)
128
(5.04)
71
(2.80)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
B004
68
(2.68)
128
(5.04)
81
(3.19)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
Table 10.37 Three-Phase 200 V Class (Finless-Type Drive)
Model
Dimensions mm (in)
Est. Weight
kg (lb)
W H D W1 H1 t1 d
2001
68
(2.68)
128
(5.04)
71
(2.80)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
2002
68
(2.68)
128
(5.04)
71
(2.80)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
2004
68
(2.68)
128
(5.04)
71
(2.80)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
2006
68
(2.68)
128
(5.04)
71
(2.80)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
■ B006 to B012, 2008 to 2021, 4001 to 4012
Figure 10.6 Exterior and Mounting Dimensions
