Parameter Details
12

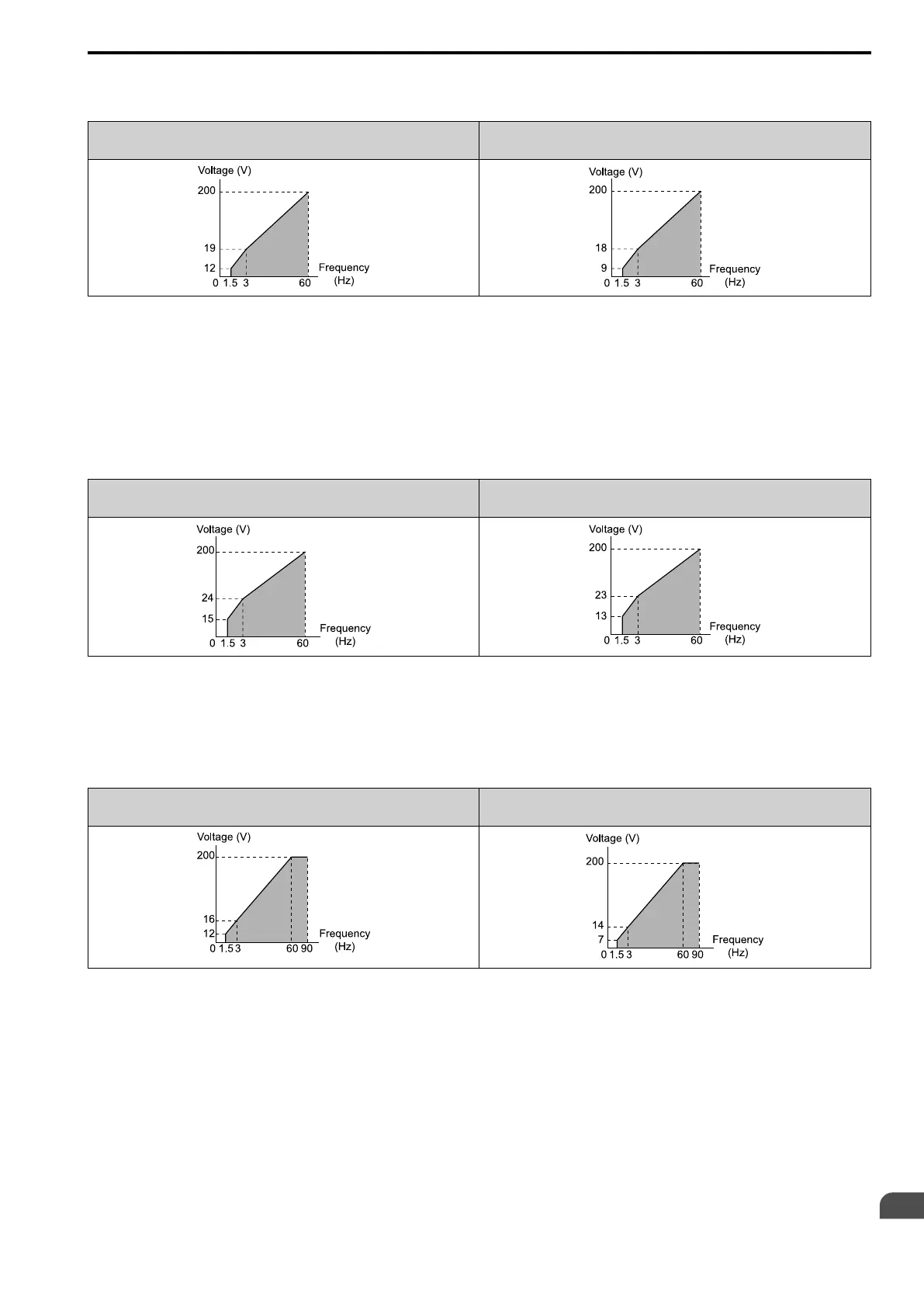

12.6 E: Motor Parameters
YASKAWA SIEPC71061753C GA500 Technical Manual 587
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: B001 - B018, 2001 - 2021, 4001 - 4012
ND: B001 - B012, 2001 - 2018, 4001 - 4009
HD: 2030 - 2082, 4018 - 4060
ND: 2021 - 2082, 4012 - 4060
B : High Trq, 60 Hz, 65% Vmin Boost
Use this pattern when high torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft) minimum
• There is an AC reactor connected to the drive output.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: B001 - B018, 2001 - 2021, 4001 - 4012
ND: B001 - B012, 2001 - 2018, 4001 - 4009
HD: 2030 - 2082, 4018 - 4060
ND: 2021 - 2082, 4012 - 4060
C : Const Trq, 60Hz base, 90Hz max
Use this constant output pattern to rotate motors at more than 60 Hz. Output voltage is constant when you operate
at more than 60 Hz.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: B001 - B018, 2001 - 2021, 4001 - 4012
ND: B001 - B012, 2001 - 2018, 4001 - 4009
HD: 2030 - 2082, 4018 - 4060
ND: 2021 - 2082, 4012 - 4060
D : Const Trq, 60Hz base, 120Hz max
Use this constant output pattern to rotate motors at more than 60 Hz. Output voltage is constant when you operate
at more than 60 Hz.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
