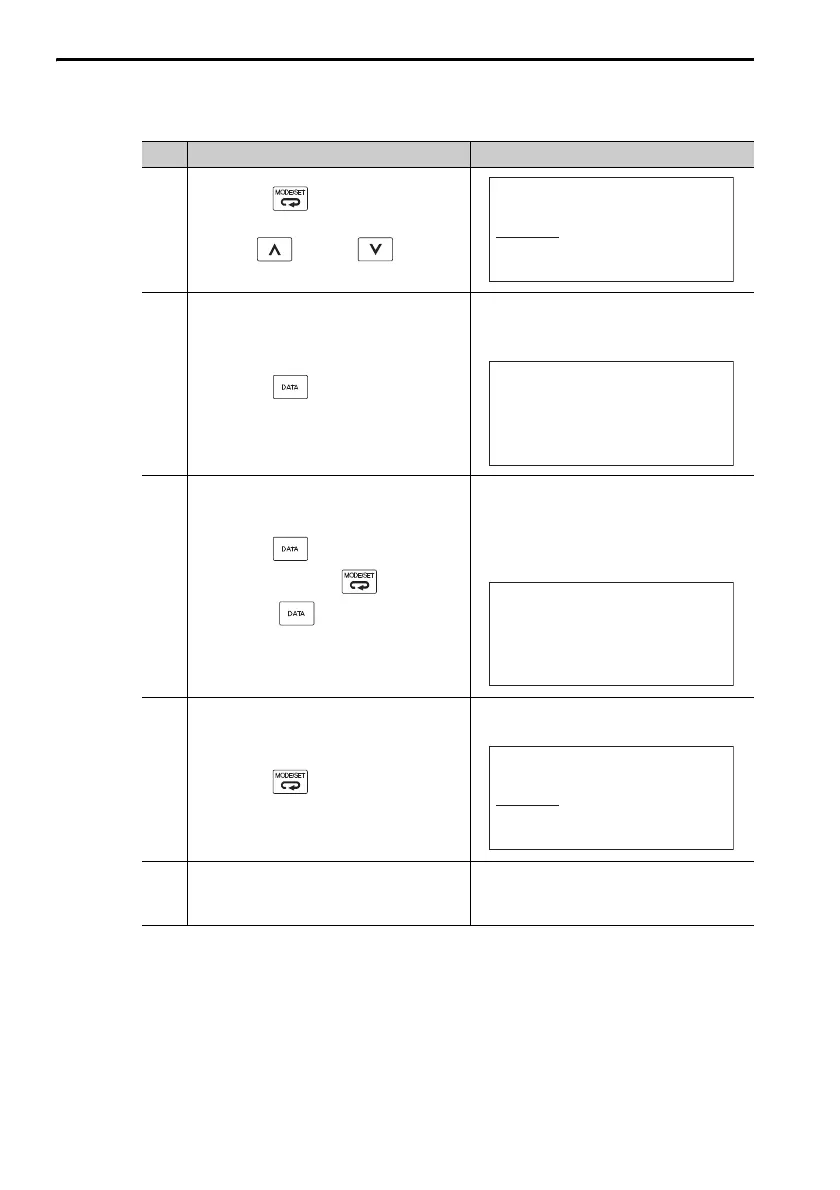

3.2 Operating Procedures for Utility Functions
3.2.18 Multiturn Limit Setting after Multiturn Limit Disagreement Alarm (Fn013)
3-46
Operating Procedure
Step Operation Result
1
Press the Key to display the
Utility Mode Main Menu, and then
use the Key or Key to
select Fn013.
2
Press the Key.
The Fn013 (Multiturn Limit Setting
after Multiturn Limit Disagreement
Alarm) execution display will appear.
3
Press the Key.
Note: If you press the Key instead
of the Key, the multiturn
limit will not be updated.
The multiturn limit will be set.
When processing has been com-
pleted, the status display will flash
DONE for approximately one sec-
ond and then return to 1:A.CC0.
4
Press the Key.
The display will return to the Utility
Mode Main Menu.
5
Turn the SERVOPACK power sup-
ply OFF and ON again.
The parameter setting is now
enabled and the alarm will have
been cleared.
1:A.CC0
FUNCTION
Fn012:S oft Ver
Fn013 :MturnLmS et
Fn014:Opt Init
Fn01B:Viblvl Init
1:A.CC0
Multiturn Limit
S et
S tart :[DATA]
Return:[S ET]
1:A.CC0
Multiturn Limit
S et
S tart :[DATA]
Return:[S ET]
1:A.CC0
FUNCTION
Fn012:S oft Ver
Fn013 :MturnLmS et
Fn014:Opt Init
Fn01B:Viblvl Init
