YASKAWA HV600

Specifications
6
6.6 Peripheral Devices and Options
YASKAWA TOEPYAIH6B01A HV600 AC Drive Narrow Bypass Installation & Startup 167
3. Use the two screws included in the option kit to fasten the option card to the metal standoffs on the bypass
PCB. Use a short-shaft, magnetic screwdriver for narrow enclosure models H6BPxxxx. Tighten each screw to
0.5 to 0.6 N•m (4.4 to 5.3 in lbs).

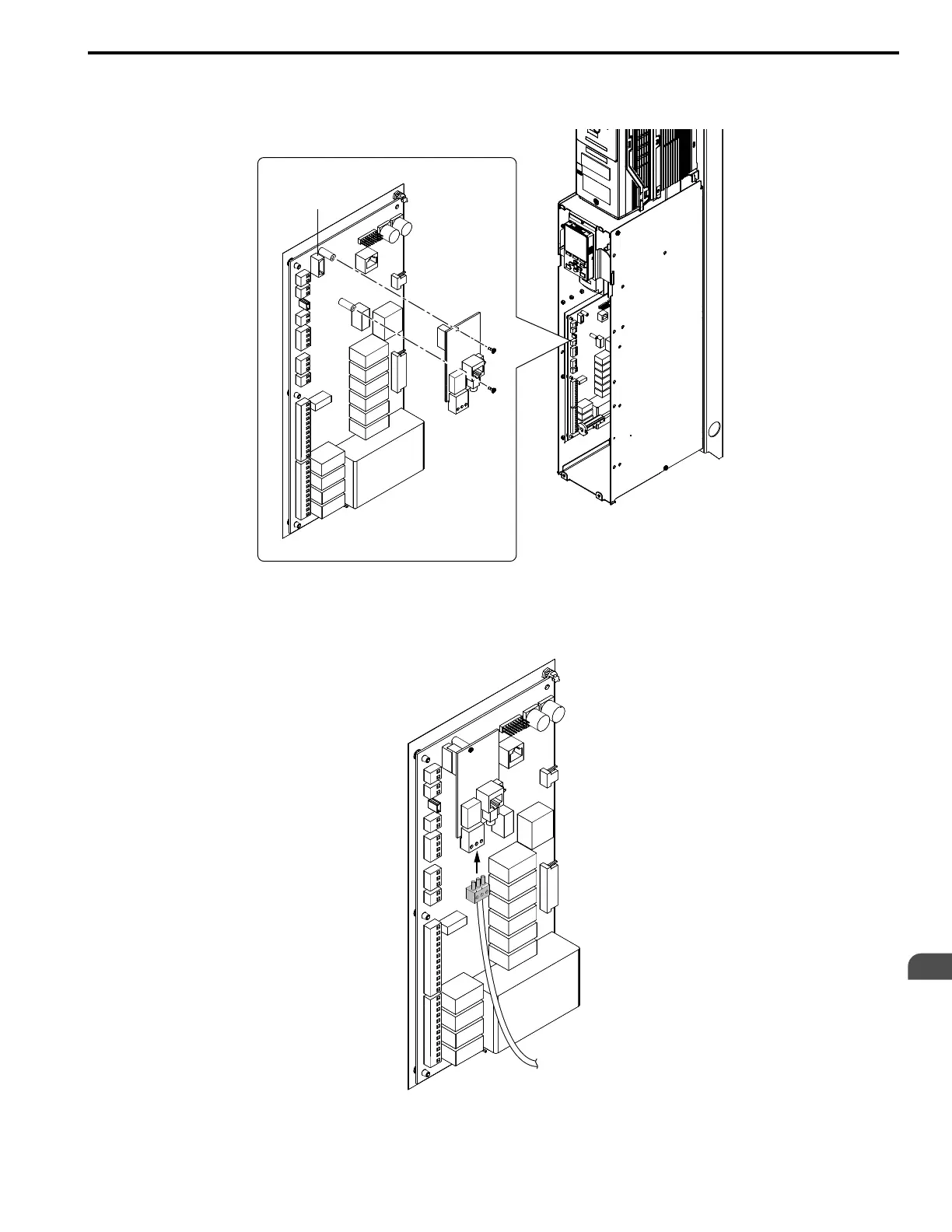

Figure 6.2 Insert Option into Bypass PCB CN5 Connector Port
4. Firmly insert the end of the customer-supplied network cable into the CN1 connection port on the option
board. When you have a dual-port option, connect two network cables to the two network ports in CN1 for
flexibility in cabling topology.
Figure 6.3 Connect Network Cable to Option (SI-W3 LonWorks Example)
CN5
