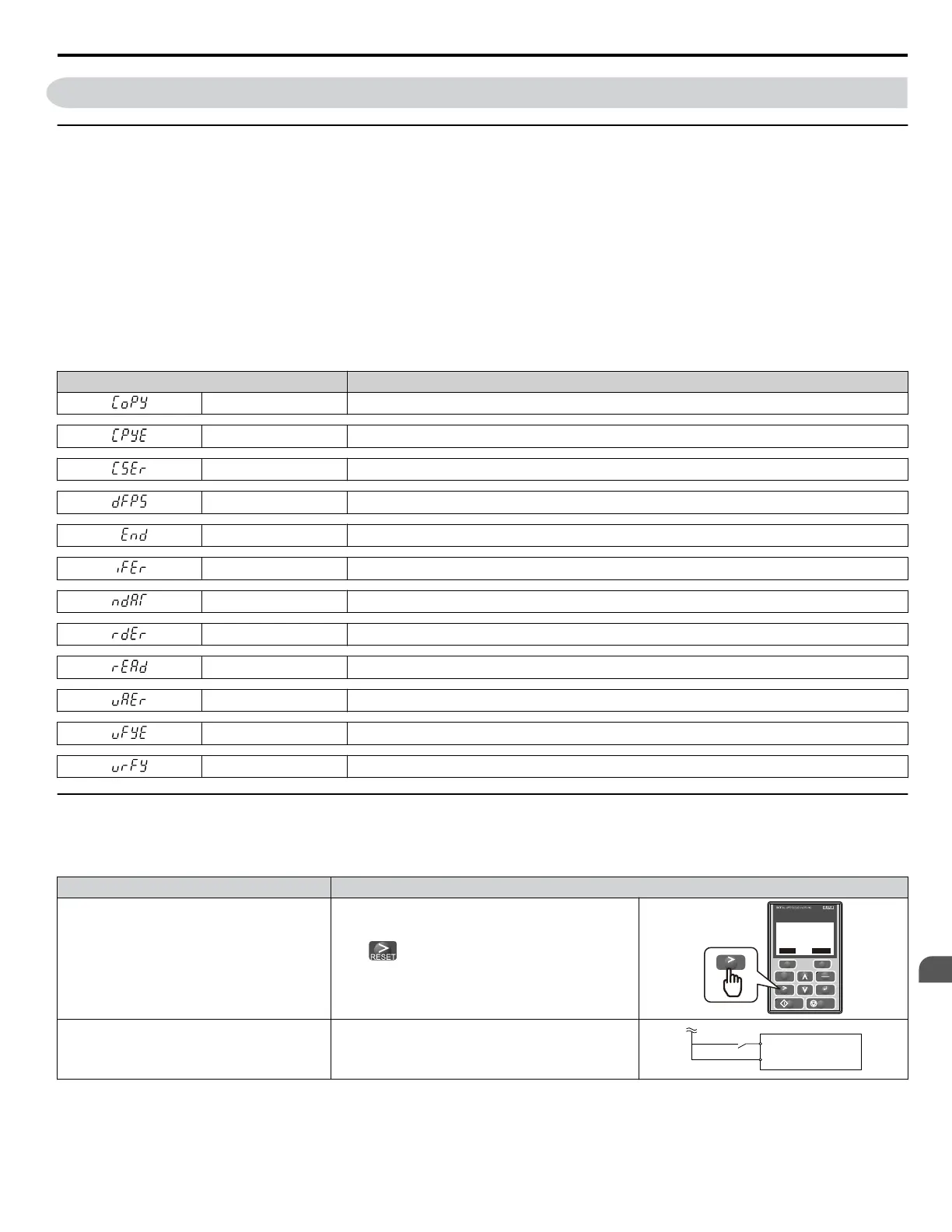

5.6 Copy Function Related Displays
u
Tasks, Errors, and Troubleshooting
The table below lists the messages and errors that may appear when using the Copy function.
When executing the tasks offered by the Copy function, the operator will indicate the task being performed. When an error
occurs, a code appears on the operator to indicate the error. Note that errors related to the Copy function do not trigger a multi-
function output terminal that has been set up to close when a fault or alarm occurs. To clear an error, simply press any key on
the operator and the error display will disappear.
Table 5.6 lists the corrective action that can be taken when an error occurs.
Note: 1. Whenever using the copy function, the drive should be fully stopped.
2. The drive will not accept a Run command while the Copy function is being executed.
3. Parameters can only be saved to a drive when the voltage class, capacity, control mode, and software version match.
Table 5.6 Copy Function Task and Error Displays
Digital Operator Display Task
CoPy Writing Parameter Settings (flashing)
CPyE Error Writing Data
CSEr Copy Unit Error
dFPS Drive Model Mismatch
End Task Complete
iFEr Communication Error
ndAT Model, Voltage Class, Capacity Mismatch
rdEr Error Reading Data
rEAd Reading Parameter Settings (flashing)
vAEr Voltage Class, Capacity Mismatch
vFyE Parameter settings in the drive and those saved to the copy function are not the same
vrFy Comparing Parameter Settings (flashing)
u
Fault Reset Methods
When a fault occurs, the cause of the fault must be removed and the drive must be restarted. The table below lists the different
ways to restart the drive.
After the Fault Occurs Procedure
Fix the cause of the fault, restart the drive, and
reset the fault
Press on the digital operator when the error code
is displayed.
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
RESET
- MODE -
oC
Overcurrent
DRV
FWD
RESET
Resetting via Fault Reset Digital Input S4
Close then open the fault signal digital input via
terminal S4. S4 is set for “Fault Reset” as default
(H1-04 = 14).
Fault Reset Switch
Drive
S4 Fault Reset Digital Input
SC Digital Input Common
5.6 Copy Function Related Displays
YASKAWA ELECTRIC TOEP YAIP1U 01B YASKAWA AC Drive - P1000 Quick Start Guide
153
5
Troubleshooting
