YASKAWA P1000 User Manual

7.1 Option Card Installation
This section provides instructions on installing option cards.
u
Prior to Installing the Option
Prior to installing the option, wire the drive, make necessary connections to the drive terminals, and verify that the drive
functions normally without the option installed.
Table 7.1 below lists the number of options that can be connected to the drive and the drive ports for connecting those options.
Table 7.1 Option Installation
Option Port/Connector Number of Options Possible
SI-B3, SI-EN3, SI-EM3, SI-N3, SI-P3, SI-T3, SI-C3,
SI-S3
CN5-A 1
AO-A3 CN5-A, B, C 1

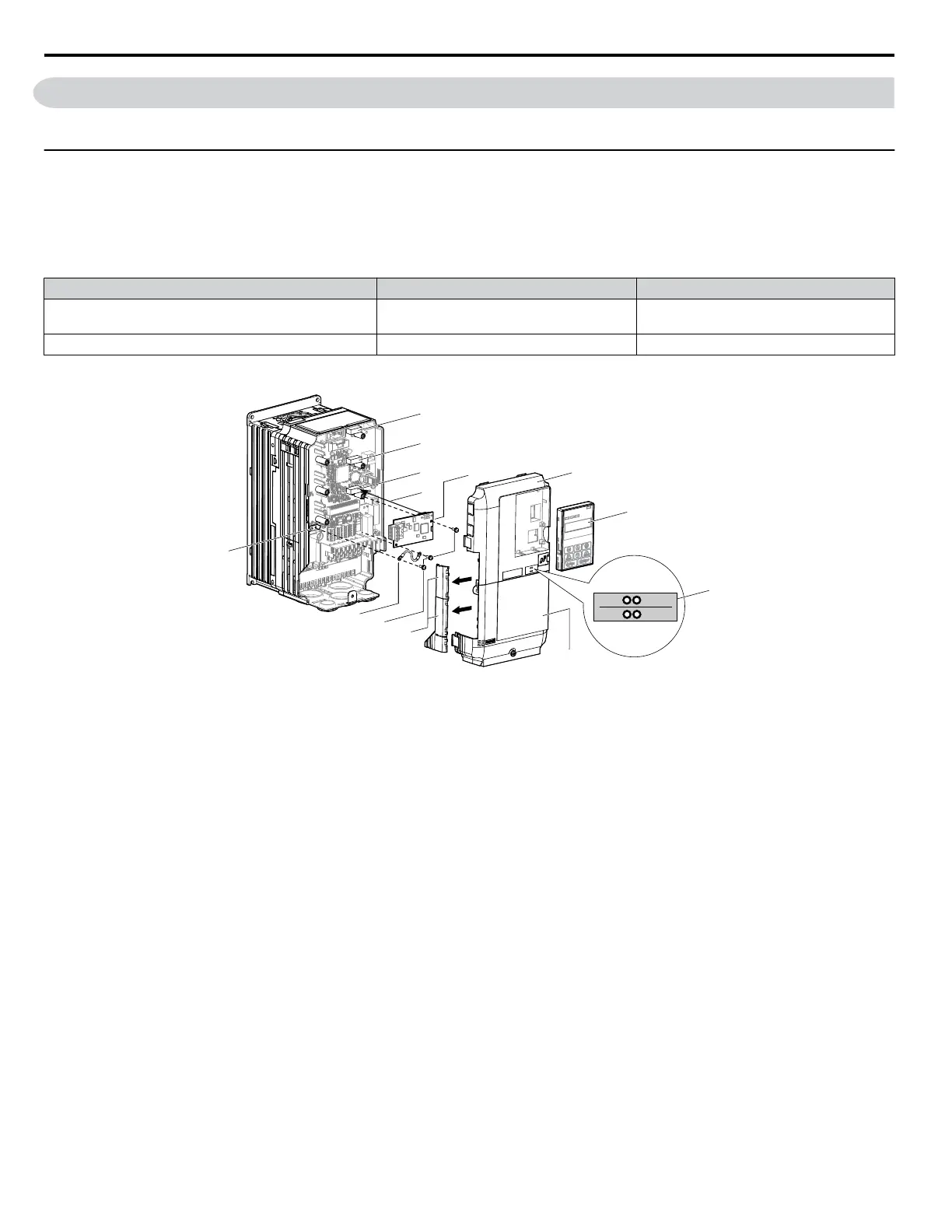

Figure 7.1 shows an exploded view of the drive with the option and related components for reference.
I
J
K
M
A
L
D
F
G
C
E
B
H
NS MS
NS MS
TX RX
A – Drive front cover
B – Digital operator
C – LED label (for communication
options)
D – Drive terminal cover
E – Removable tabs for wire routing
F – Included screws
G – Ground wire
H – Drive grounding terminal (FE)
I – Connector CN5-C
J – Connector CN5-B
K – Connector CN5-A
L – Insertion point for CN5 connector
M – Option
Figure 7.1 Drive Components with Option
7.1 Option Card Installation
164
YASKAWA ELECTRIC TOEP YAIP1U 01B YASKAWA AC Drive - P1000 Quick Start Guide

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
