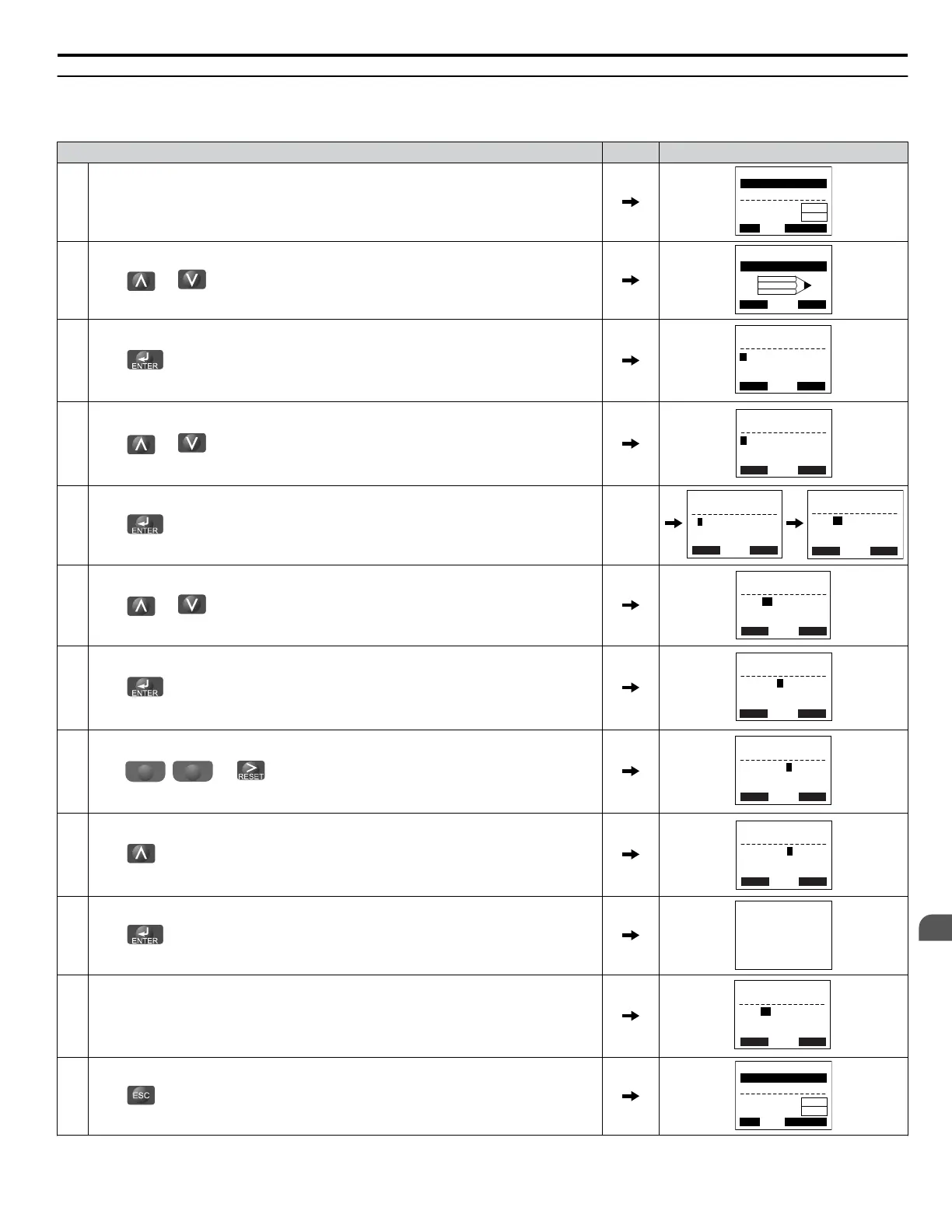

Changing Parameter Settings or Values
This example explains changing C1-02 (Deceleration Time 1) from 10.0 seconds (default) to 20.0 seconds.
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
2.
Press or until the Parameter Setting Mode screen appears.
HELP
- MODE - PRG
DATA
Programming
FWD
3.
Press to enter the parameter menu tree.
←
→
-PRMSET-
Initialization
Select Language
PRG
FWD
A1-00= 0
4.
Press or to select the C parameter group.
← →
-PRMSET-
Basic Setup
Accel Time 1
PRG
FWD
C1-01= 10.0 sec
5.
Press two times.
-PRMSET-
Accel/Decel
Accel Time 1
PRG
C1-01= 10.0 sec
-PRMSET-
C1-01= 10.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Accel Time 1
← →
FWD
← →
FWD
6.
Press or to select parameter C1-02.
-PRMSET-
C1-02= 10.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
7.
Press to view the current setting value (10.0 s). The leftmost digit flashes.
-PRMSET-
C1-02= 0010.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
8.
Press
F1
,
F2
, or until the desired number is selected. “1” flashes.
-PRMSET-
C1-02=0010.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
9.
Press and enter 0020.0.
-PRMSET-
C1-02=0020.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
10.
Press to confirm the change.
Entry Accepted
11. The display automatically returns to the screen shown in Step 4.
-PRMSET-
C1-02= 20.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
12.
Press as many times as necessary to return to the initial display.
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
4.2 The Drive, Programming, and Clock Adjustment Modes
YASKAWA ELECTRIC TOEP YAIP1U 01B YASKAWA AC Drive - P1000 Quick Start Guide
85
4
Start-Up Programming &
Operation
