Drive Model
Fuse Type
Manufacturer: Bussmann
Model Fuse Ampere Rating (A)
5A0062
<1>
FWP-250A 250
5A0077
<1>
FWP-250A 250
5A0099
<1>
FWP-250A 250
5A0125
<1>
FWP-350A 350
5A0145
<1>
FWP-350A 350
5A0192
<1>
FWP-600A 600
5A0242
<1>
FWP-600A 600
<1> 600 V class drives are not compliant with European Standards.
n
Guarding Against Harmful Materials
When installing IP00/Open Type enclosure drives, use an enclosure that prevents foreign material from entering the drive
from above or below.
n
Grounding
The drive is designed to be used in T-N (grounded neutral point) networks. If installing the drive in other types of grounded
systems, contact your Yaskawa representative for instructions.
u
EMC Guidelines Compliance
This drive is tested according to European standards IEC/EN 61800-3: 2004.
n
EMC Filter Installation
The following conditions must be met to ensure continued compliance with guidelines. Refer to EMC Filters on page 241
for EMC filter selection.
Installation Method
Verify the following installation conditions to ensure that other devices and machinery used in combination with this drive
also comply with EMC guidelines.
1.
Install an EMC noise filter to the input side specified by Yaskawa for compliance with European standards.
2.
Place the drive and EMC noise filter in the same enclosure.
3.
Use braided shield cable for the drive and motor wiring, or run the wiring through a metal conduit.
4.
Keep wiring as short as possible. Ground the shield on both the drive side and the motor side.
A
B
D
E
C
M
U/T1
V/T2
W/T3
U
V
W
A – Drive
B – 10 m max cable length between drive
and motor
C – Motor
D – Metal conduit
E – Ground wire should be as short as
possible.

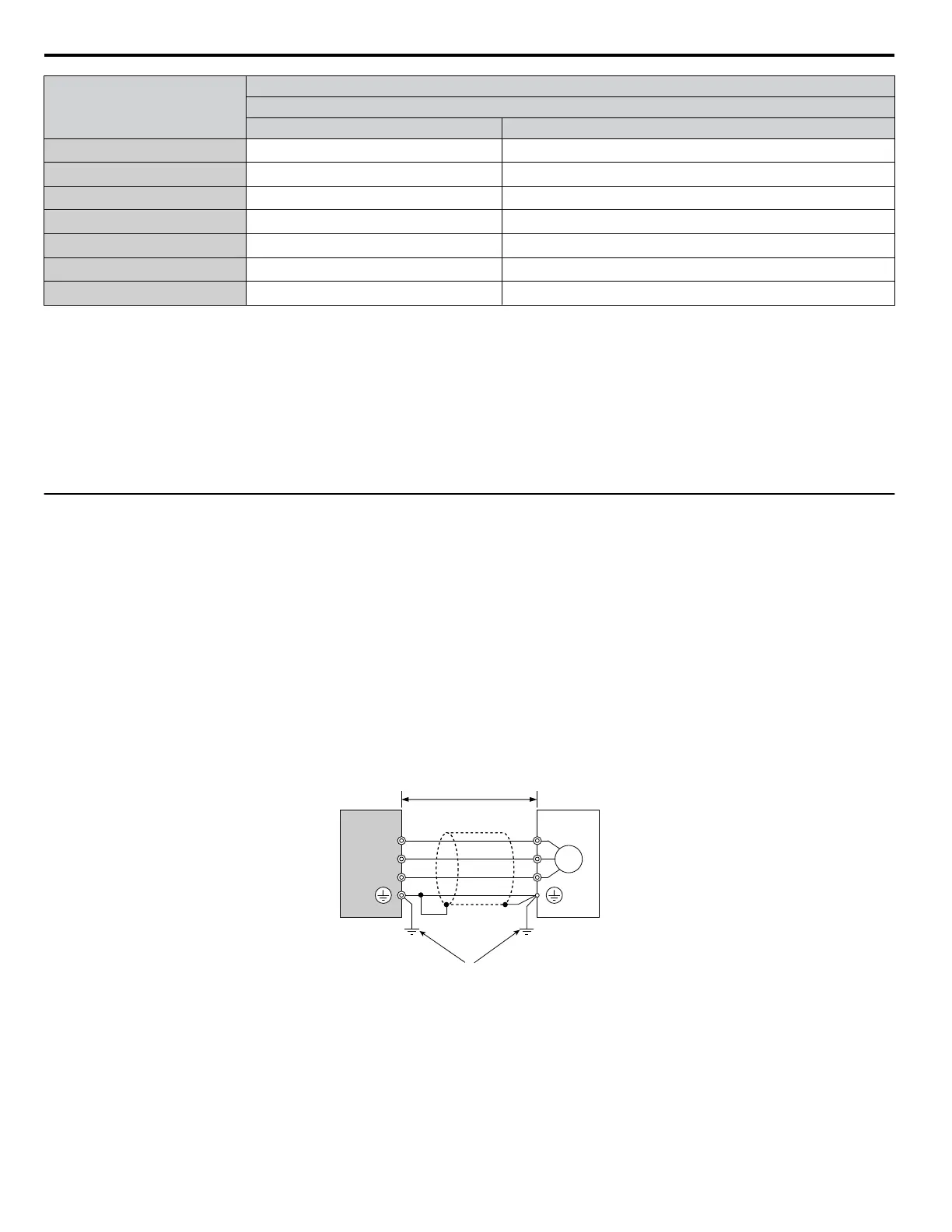

Figure C.2 Installation Method
5.
Make sure the protective earthing conductor complies with technical standards and local safety regulations.
C.1 European Standards
238
YASKAWA ELECTRIC TOEP YAIP1U 01B YASKAWA AC Drive - P1000 Quick Start Guide
