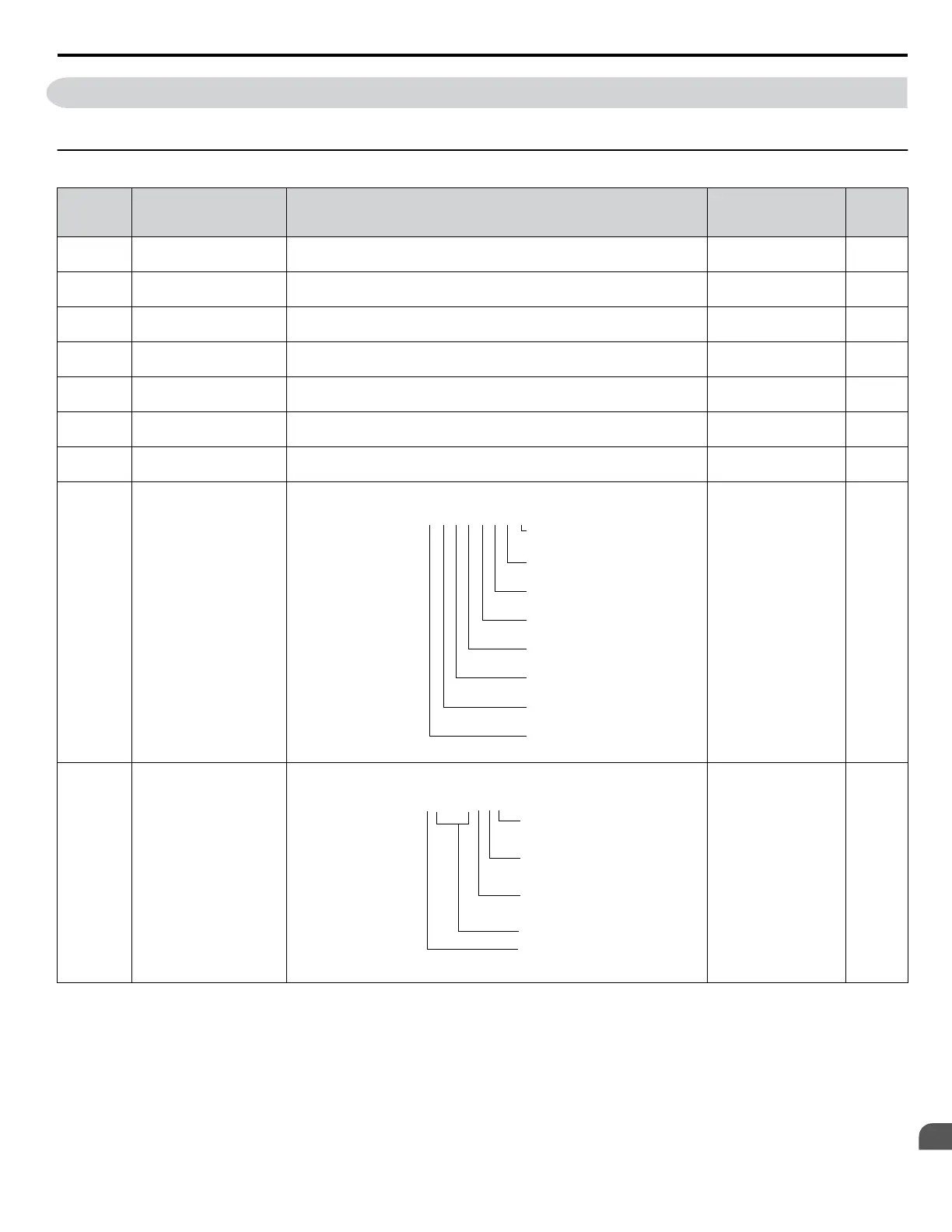

B.12 U: Monitors
Monitor parameters allow the user to view drive status, fault information, and other data concerning drive operation.
u
U1: Operation Status Monitors
No.
(Addr.
Hex)
Name Description Analog Output Level Unit
U1-01
(40)
Frequency Reference
Monitors the frequency reference. Display units are determined by o1-03.
10 V: Max frequency 0.01 Hz
U1-02
(41)
Output Frequency
Displays the output frequency. Display units are determined by o1-03.
10 V: Max frequency 0.01 Hz
U1-03
(42)
Output Current
Displays the output current. 10 V: Drive rated
current
<1>
<2>
U1-04
(43)
Control Method
0: V/f Control No signal output
available
–
U1-06
(45)
Output Voltage Reference
Displays the output voltage.
10 V: 200 Vrms
<3>
0.1 Vac
U1-07
(46)
DC Bus Voltage Displays the DC bus voltage.
10 V: 400 V
<3>
1 Vdc
U1-08
(47)
Output Power
Displays the output power (this value is calculated internally). 10 V: Drive capacity
(motor capacity) kW
<4>
U1-10
(49)
Input Terminal Status
Displays the input terminal status.
U1
-
10=
00000000
Digital input 1
(terminal S1 enabled)
Digital input 2
(terminal S2 enabled)
Digital input 3
(terminal S3 enabled)
Digital input 4
(terminal S4 enabled)
Digital input 5
(terminal S5 enabled)
Digital input 6
(terminal S6 enabled)
Digital input 7
(terminal S7 enabled)
Digital input 8
(terminal S8 enabled)
1
1
1
1
1
1
1
1
No signal output
available
–
U1-11
(4A)
Output Terminal Status
Displays the output terminal status.
U1
-
11=
00000000
Multi-Function
Digital Output
(terminal M1-M2)
Digital Output
(terminal M3-M4)
Digital Output
Multi-Function
Multi-Function
Not Used
Fault Relay
(terminal MA-MC closed
MA-MC open)
1
1
1
1
0
(terminal MD-ME-MF)
No signal output
available
–
B.12 U: Monitors
YASKAWA ELECTRIC TOEP YAIP1U 01B YASKAWA AC Drive - P1000 Quick Start Guide
227
B
Parameter List
