YASKAWA P1000 User Manual

n
Reattaching the Front Cover
Models 2A0004 to 2A0081, 4A0002 to 4A0044, and 5A0003 to 5A0032
Reverse the instructions given in Remove the Front Cover (2A0004 to 2A0081, 4A0002 to 4A0044, and 5A0003 to 5A0032)
on page 51 to reattach the front cover. Pinch inwards on the hooks found on each side of the front cover while guiding it back
into the drive. Make sure it clicks firmly into place.
Models 2A0110 to 2A0415 and 4A0058 to 4A1200
1.
Slide the front cover so the hooks on the top connect to the drive.

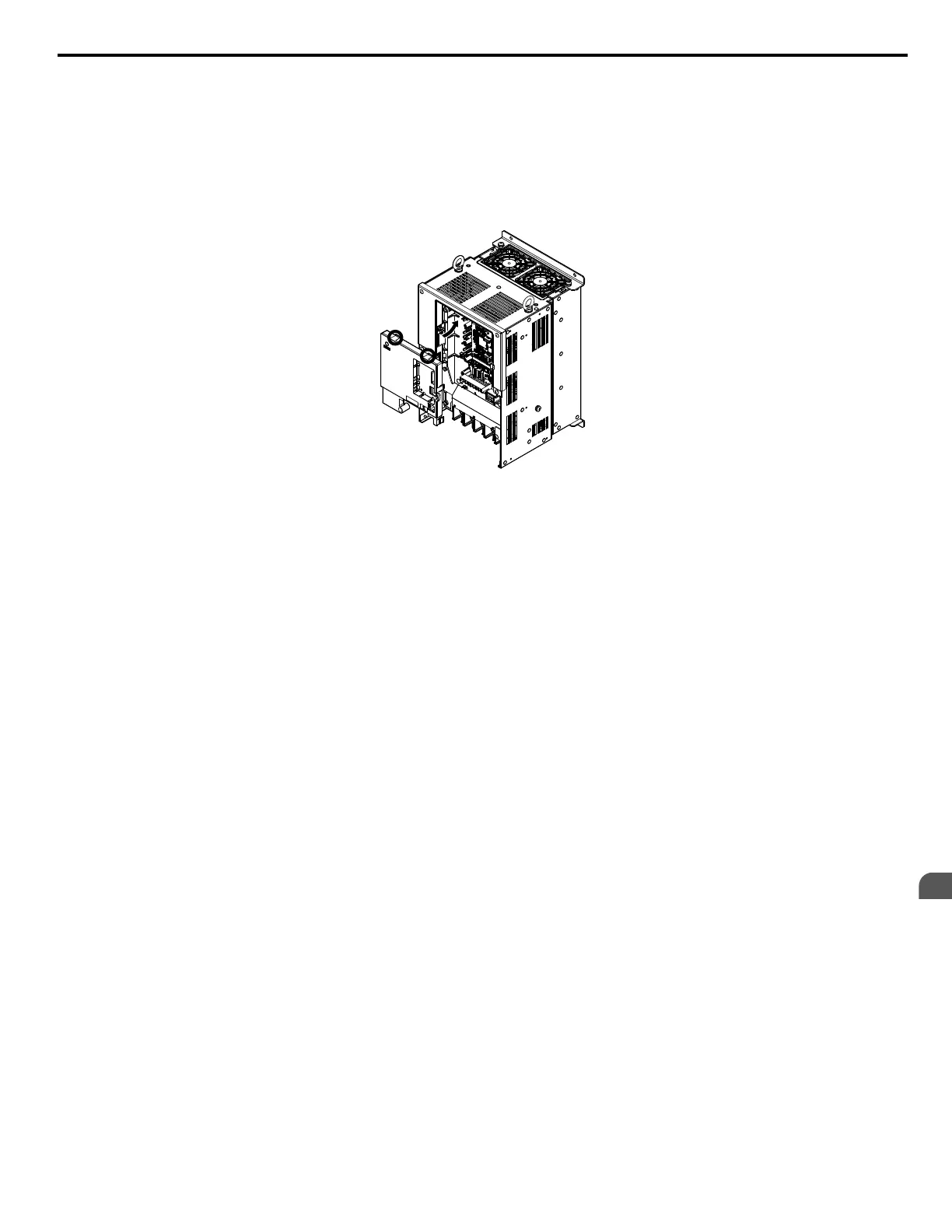

Figure 3.20 Reattach the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A1200)
2.
After connecting the hooks to the drive, press firmly on the cover to lock it into place.
3.4 Digital Operator and Front Cover
YASKAWA ELECTRIC TOEP YAIP1U 01B YASKAWA AC Drive - P1000 Quick Start Guide
53
3
Electrical Installation

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
