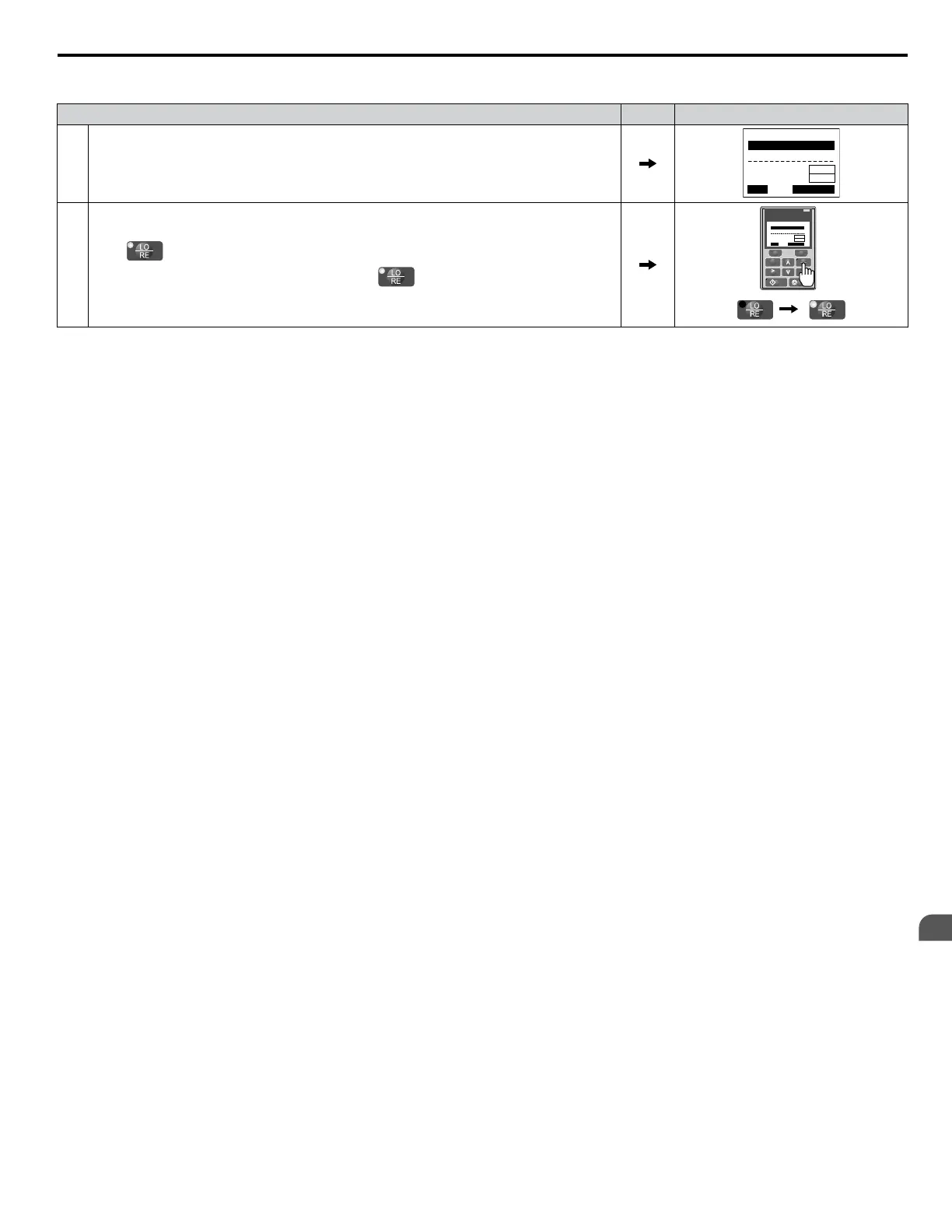

Using the LO/RE Key on the Digital Operator
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
2.
Press . The LO/RE light will light up. The drive is now in LOCAL.
To set the drive for REMOTE operation, press the key again.
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
ALM
DIGITAL OPERATOR JVOP-180
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
n
Using Input Terminals S1 through S8 to Switch between LOCAL and REMOTE
It is possible to switch between LOCAL and REMOTE modes using one of the digital input terminals S1 through S8 (set the
corresponding parameter H1-oo to “1”).
Setting H1-oo to 1 disables the LO/RE key on the digital operator. Refer to H1: Multi-Function Digital Inputs on page
202 for details.
4.2 The Drive, Programming, and Clock Adjustment Modes
YASKAWA ELECTRIC TOEP YAIP1U 01B YASKAWA AC Drive - P1000 Quick Start Guide
87
4
Start-Up Programming & Operation

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
