Yealink SIP-T52S Administrator's Guide

Setting Up Your System
85
4. Select the desired value (0-7) from the pull-down list of Priority.
5. Click Confirm to accept the change.
A dialog box pops up to prompt that the settings will take effect after a reboot.
6. Click OK to reboot the phone.

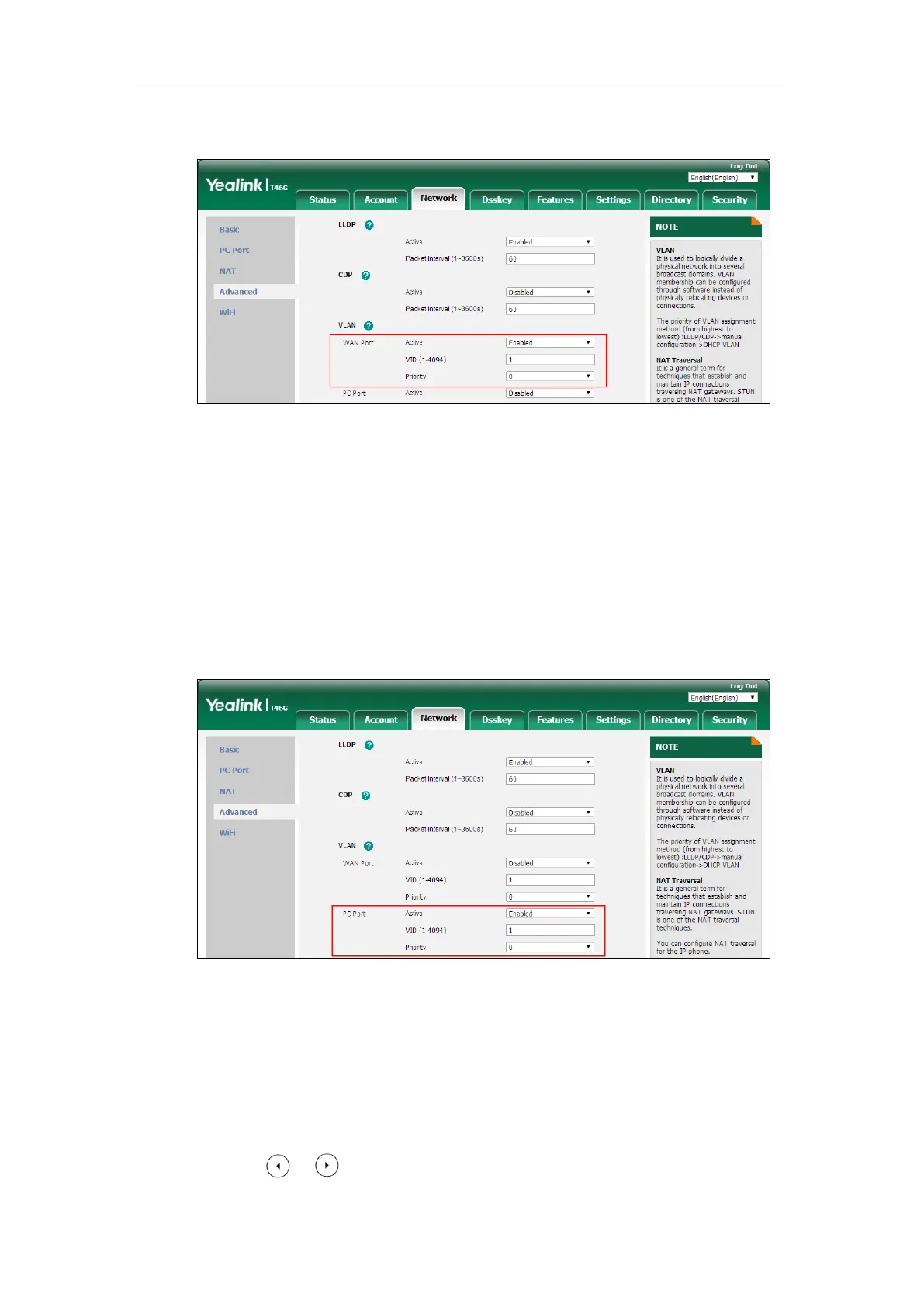

To configure VLAN for PC port via web user interface:
1. Click on Network->Advanced.
2. In the PC Port block, select the desired value from the pull-down list of Active.
3. Enter the VLAN ID in the VID (1-4094) field.
4. Select the desired value (0-7) from the pull-down list of Priority.
5. Click Confirm to accept the change.
A dialog box pops up to prompt that the settings will take effect after a reboot.
6. Click OK to reboot the phone.
To configure VLAN for Internet port (or PC port) via phone user interface:
1. Press Menu->Advanced (default password: admin) ->Network->VLAN->WAN Port (or
PC Port).
2. Press or , or the Switch soft key to select the desired value from the VLAN

Yealink SIP-T52S Specifications

General

Touchscreen	-
Display diagonal	2.8 \
Backlight display	Yes
Display resolution	320 x 240 pixels
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
AC adapter input voltage	100 - 240 V
Bluetooth version	2.1+EDR
Security algorithms	802.1x RADIUS, HTTPS, MD5
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	G.722, G.723, G.723.1, G.726, OPUS, iLBC
Volume control	Digital
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Front camera	No
Operating system installed	Linux

Weight and Dimensions

Depth	212 mm
Width	211.6 mm
Height	166.8 mm
