4 - 8 EA3600 Network Connect Product Reference Guide
3. Select the EA3600 PROFINET device name from the PROFINET device name drop-down menu, in the
example this is ea3600.
4. Select the desired EA3600 module in the device list and click Assign Name. This assigns the name in the
upper drop-down menu to the actual EA3600 on the network.

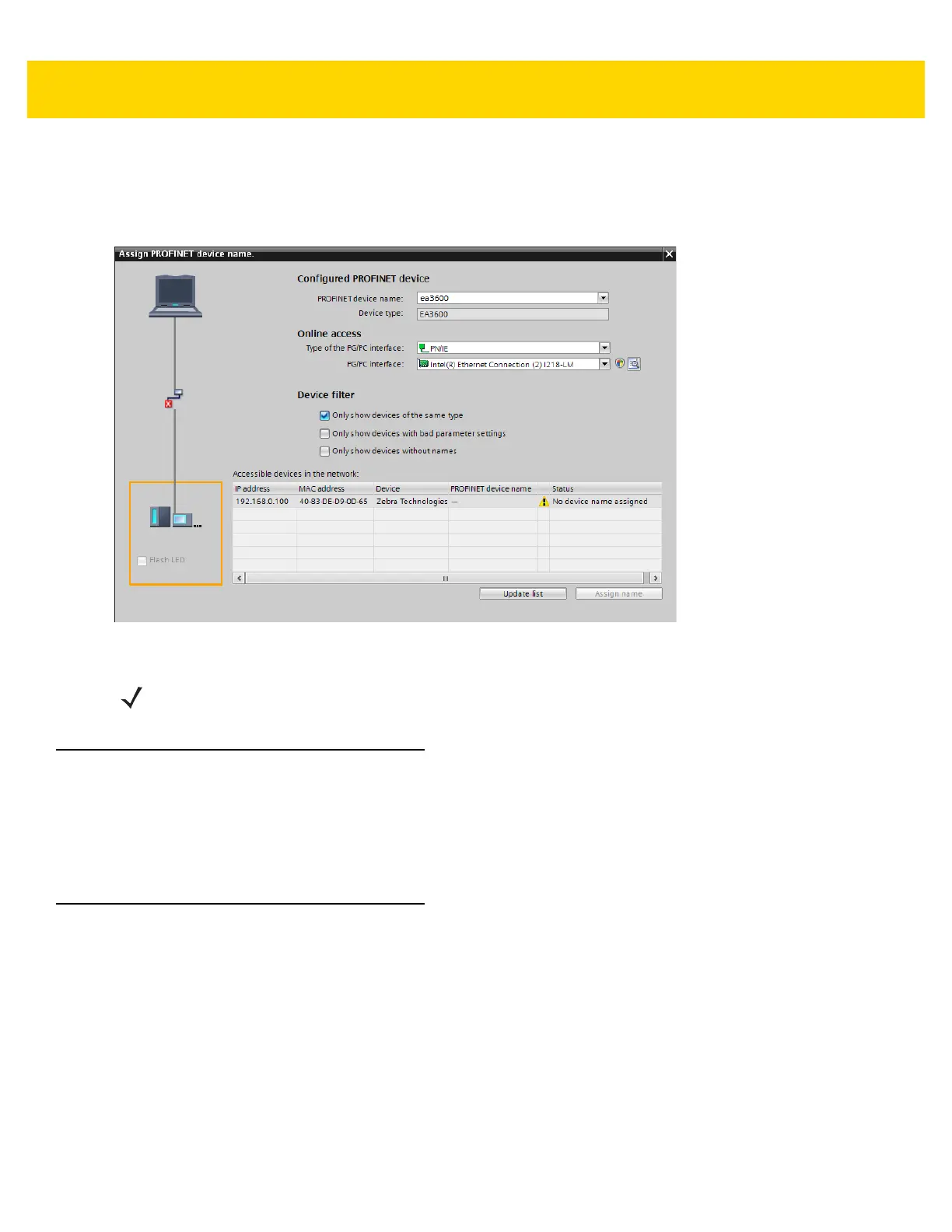

Figure 4-11 Assign PROFINET Name
Transferring Barcode Data from the EA3600
The PROFINET interface supports all three transfer modes for transferring barcode data from the EA3600 to the
controller.
See Reading Barcode Data from the EA3600 on page 3-2 for details on the barcode transfer mechanisms.
Sample Application for TIA v15.1
The PROFINET sample applications and function blocks are located in the Industrial Ethernet Developer Zip file
(CAAEAS00-001-RXXD0.ZIP).
A single example project, EA3600_TIA_sample, for TIA v15.1 is available that uses the components located in the
EA3600Lib Global Library. This Library includes a ScannerBlock, ScannerInStruct and ScannerOutStruct data
types, and ScannerTagTable.
NOTE If there is more than one EA3600 on the network, the EA3600 can be identified by matching the MAC
address shown in the device list with the MAC address on the EA3600 label.
